Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Position Sensor >> Locations >> Position Sensor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dg)

Position Sensor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dg)



Position Sensor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dg)

Location: on the motor shaft

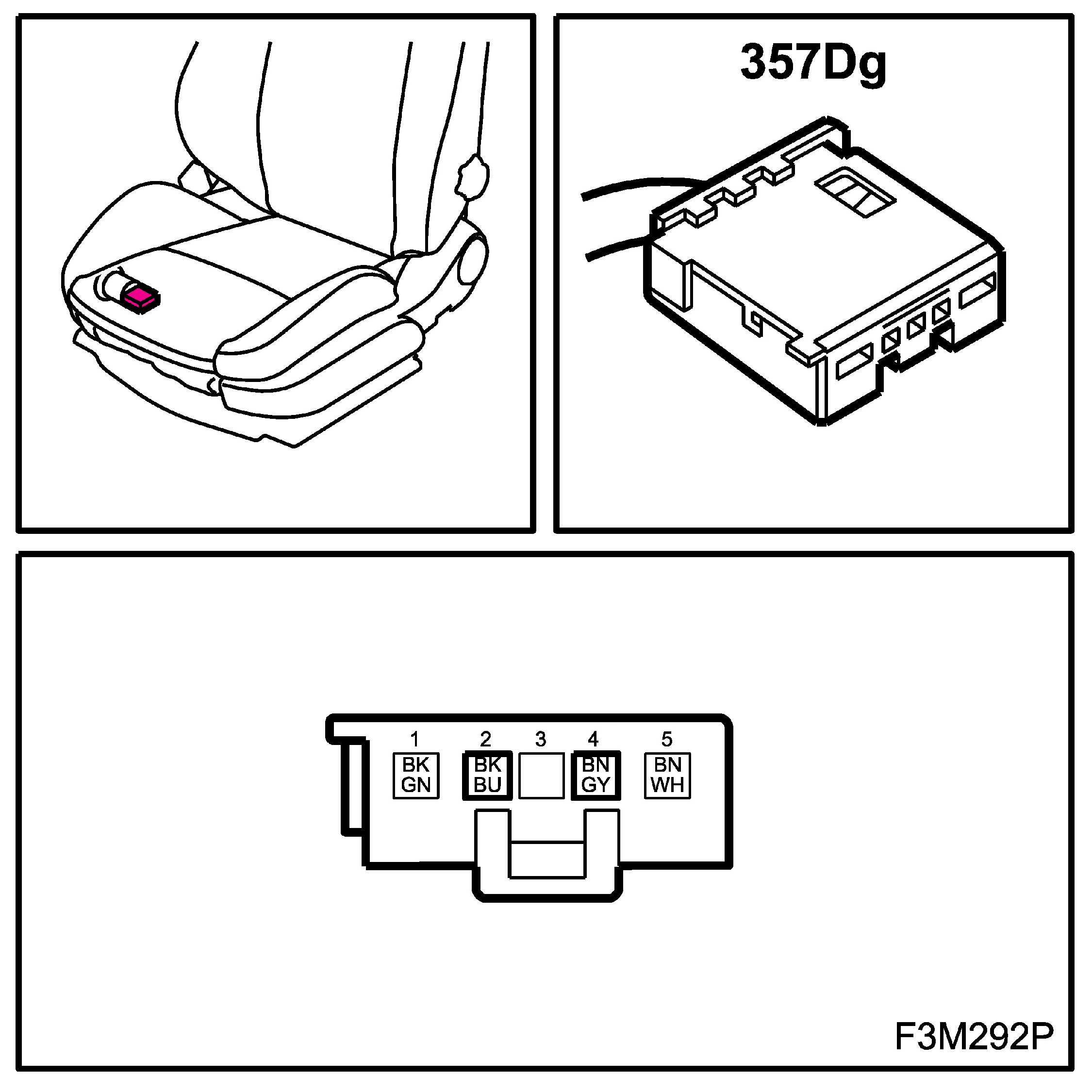

4D LH

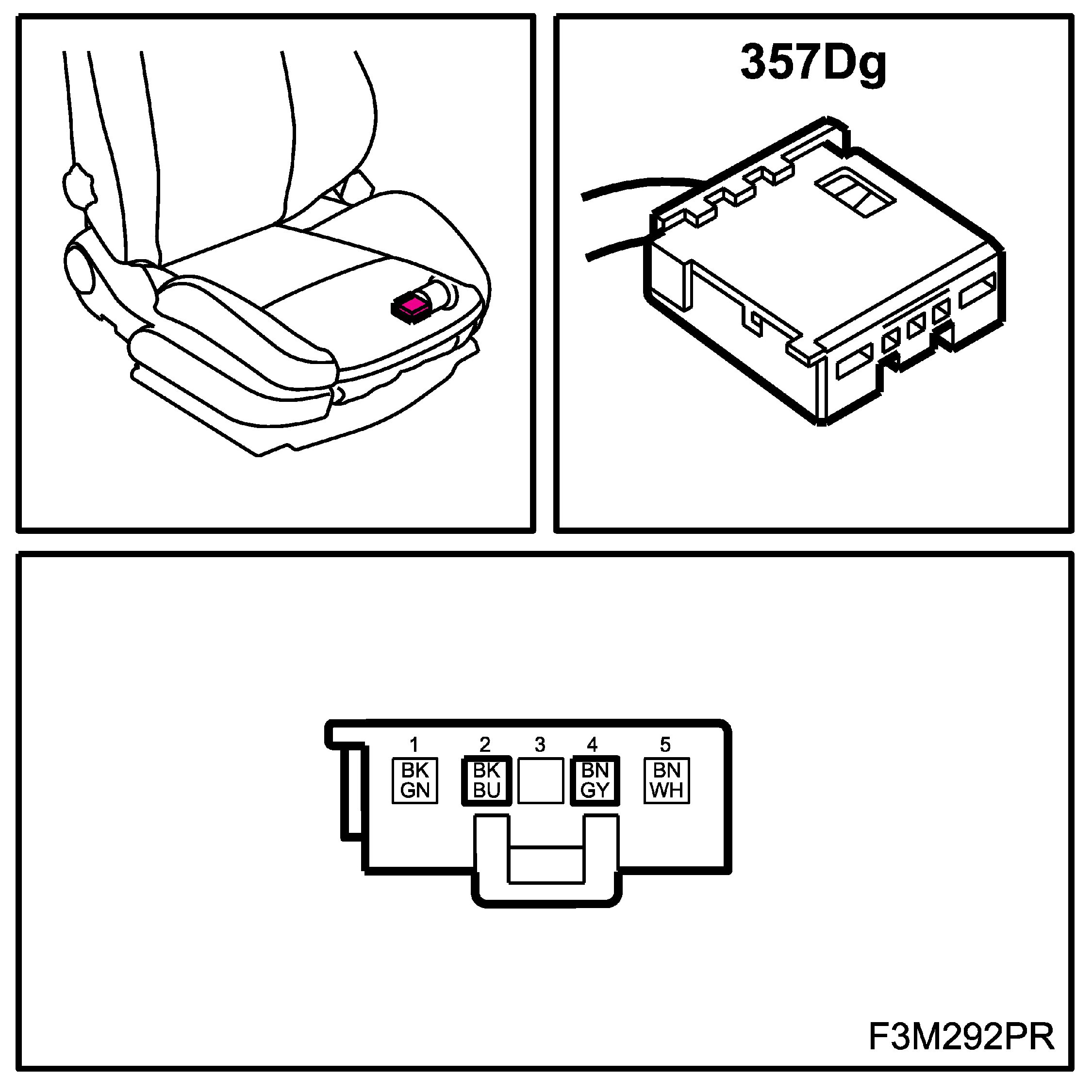

4D RH

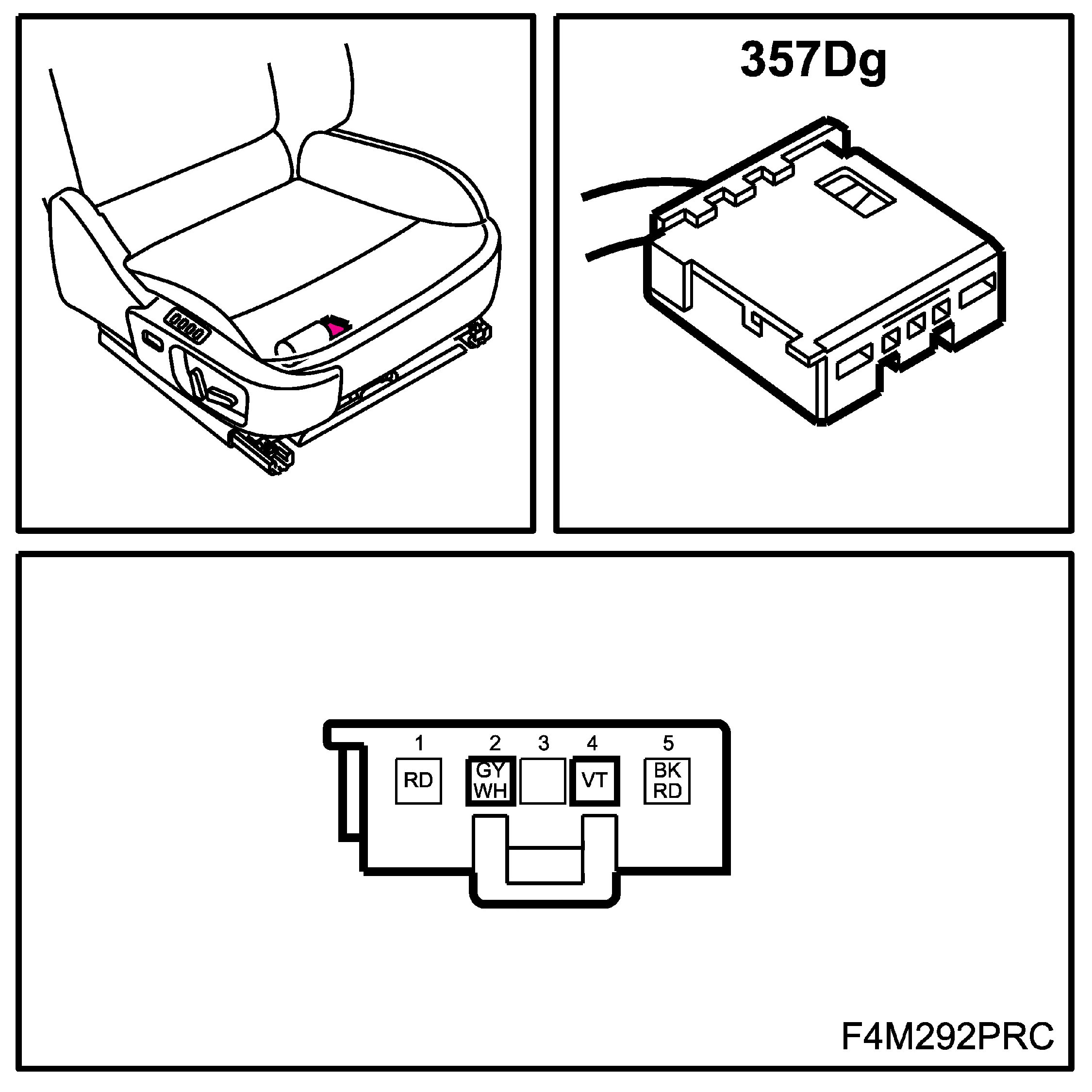

CV LH







CV RH
