Horn Switch
>>
Diagrams
>>

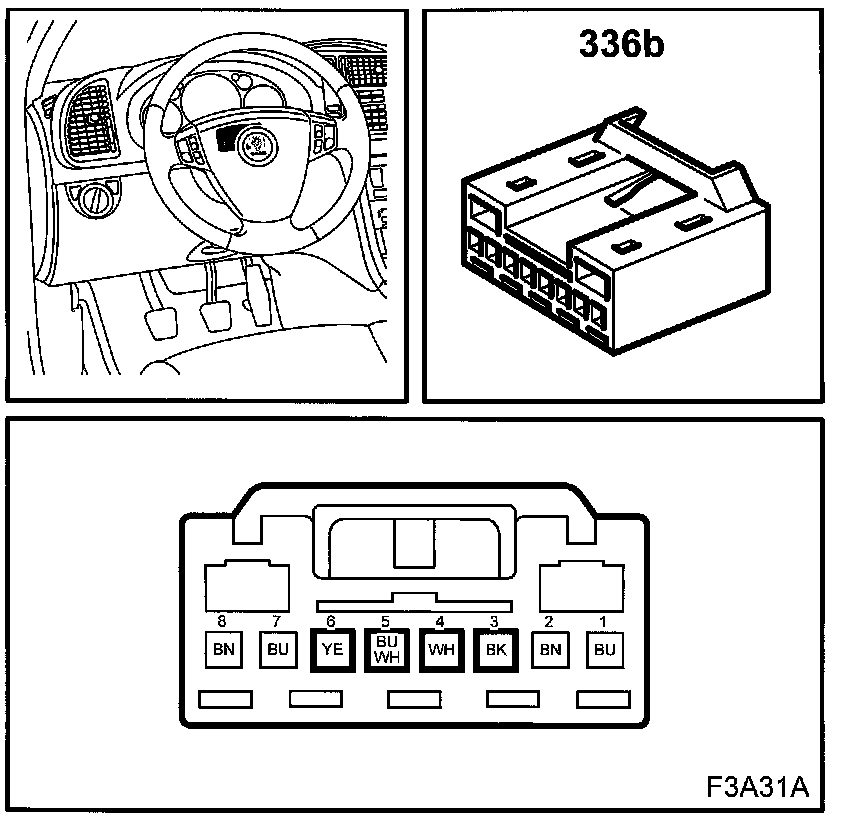

Steering Wheel Contact Unit, Horn/Switches (336b)
Steering Wheel Contact Unit, Horn/Switches (336b)
Location:
integrated in steering column unit
Steering Wheel Contact Unit, Horn/Switches (336b):
