Refrigerant Pressure Sensor / Switch: Specifications



Pressure Sensor, A/C (620)

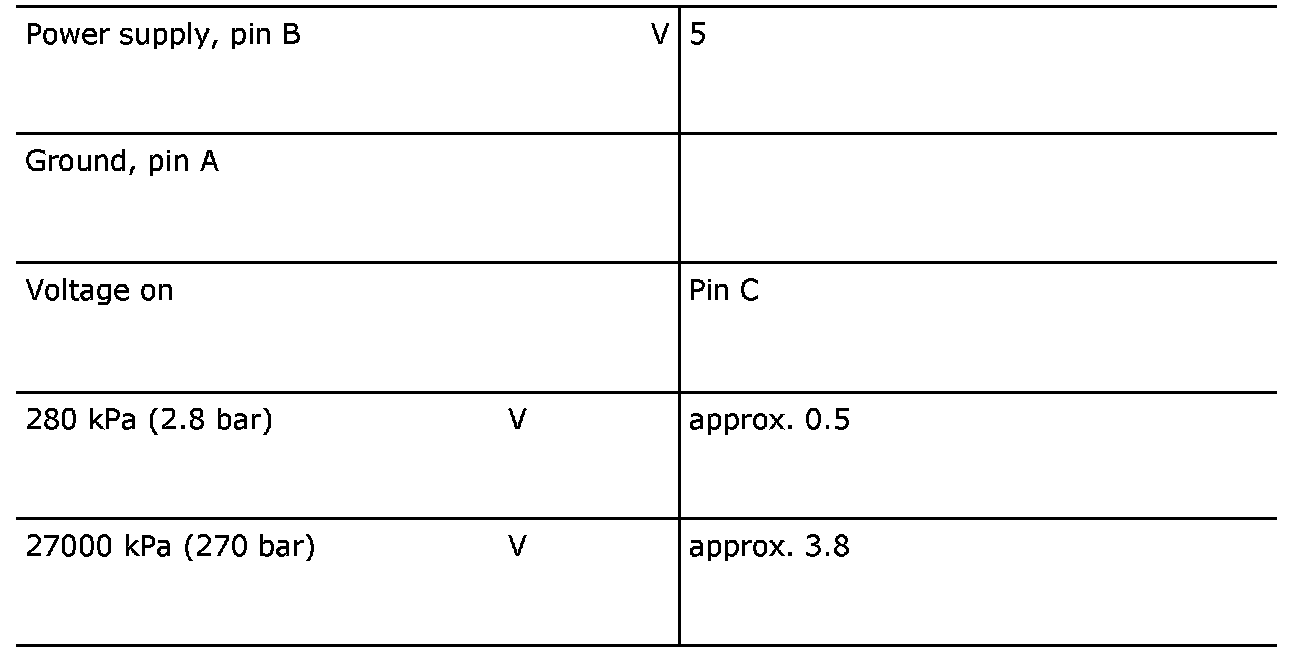

Sensor Specs:

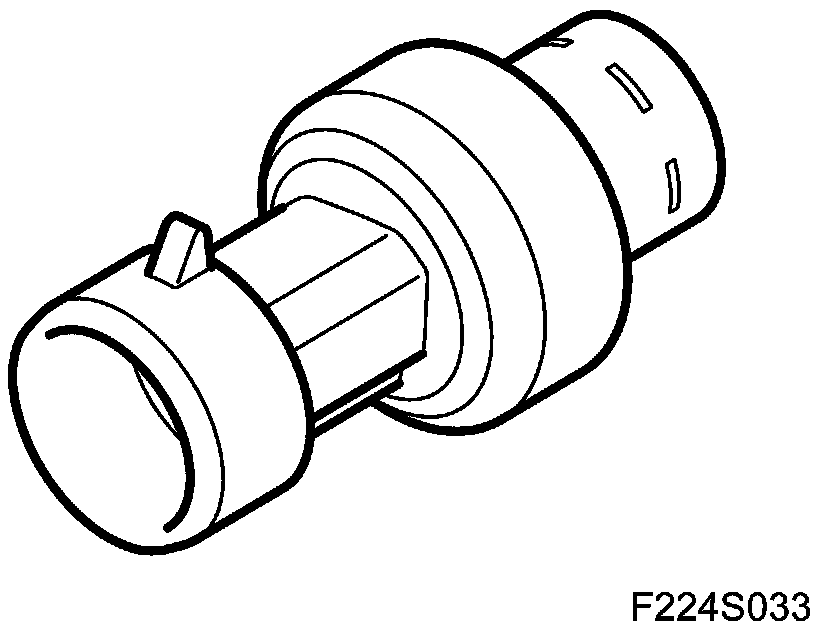

View Of Sensor:
