Brake Switch (Cruise Control): Description and Operation

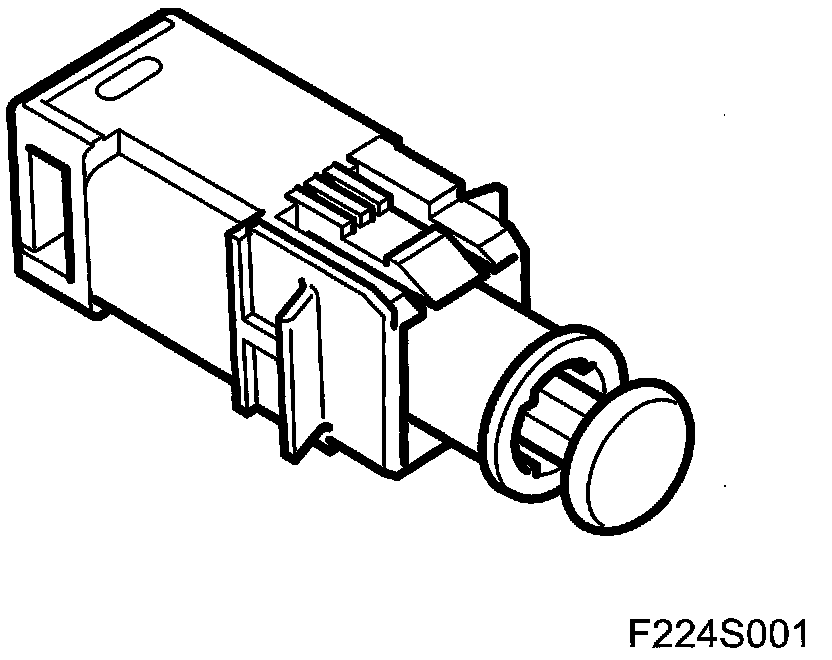

Brake Switch, Cruise Control (134), T8

Main Task
The control module uses brake switch information to disengage cruise control.

Type
The switch opens when the pedal is depressed.






Connection

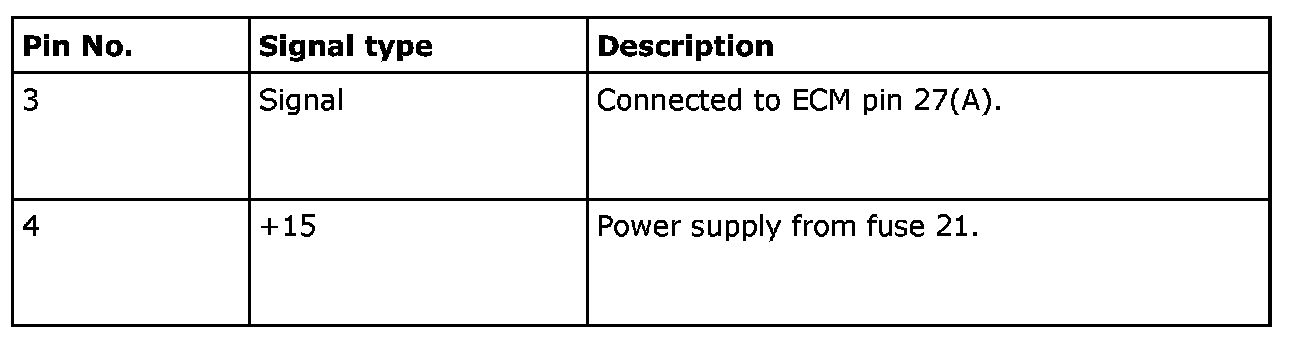

Pin No. 3-4:

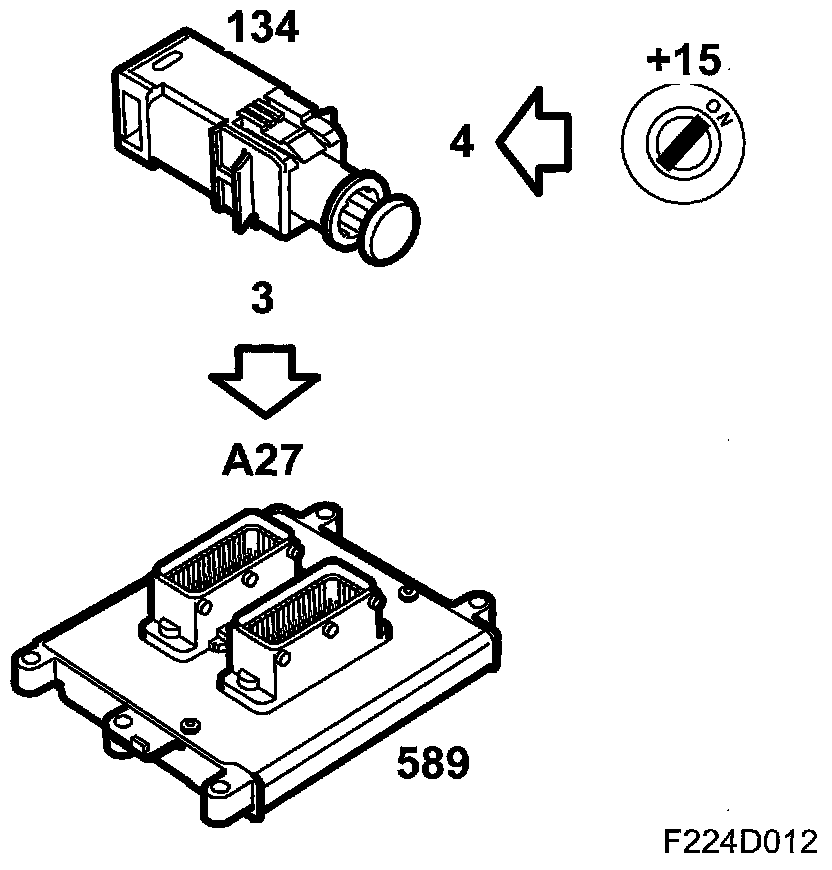

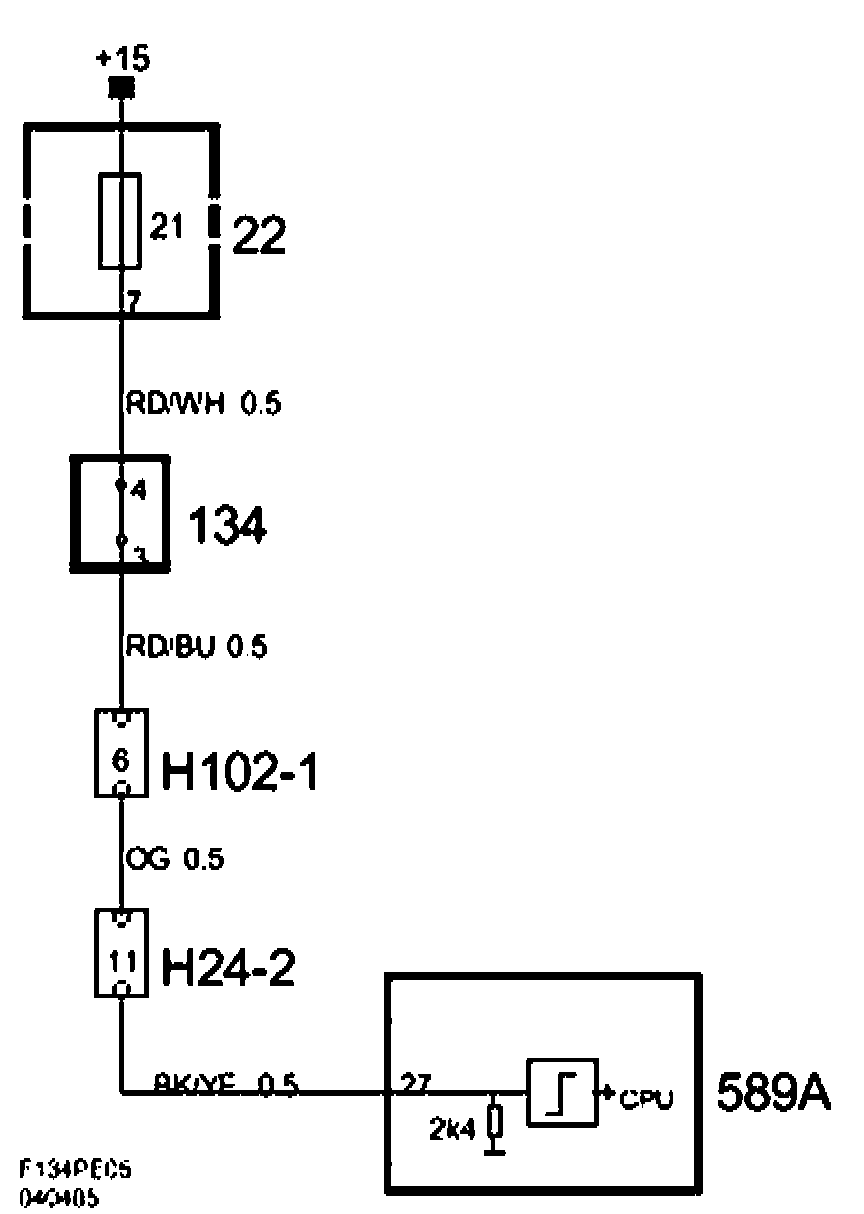

Diagram:

When the brake pedal is depressed, B+ to control module pin 27(A) is interrupted, at which time control module pin 2(A) sinks to ground potential.
