Position Sensor, Soft Top Cover Locked, RH (562RH)

Position Sensor, Soft Top Cover Locked, RH (562RH)

Location:







Main task
The sensor informs the STC control module whether or not the soft top cover is locked on the RH side.

Unlocked







Locked






Type

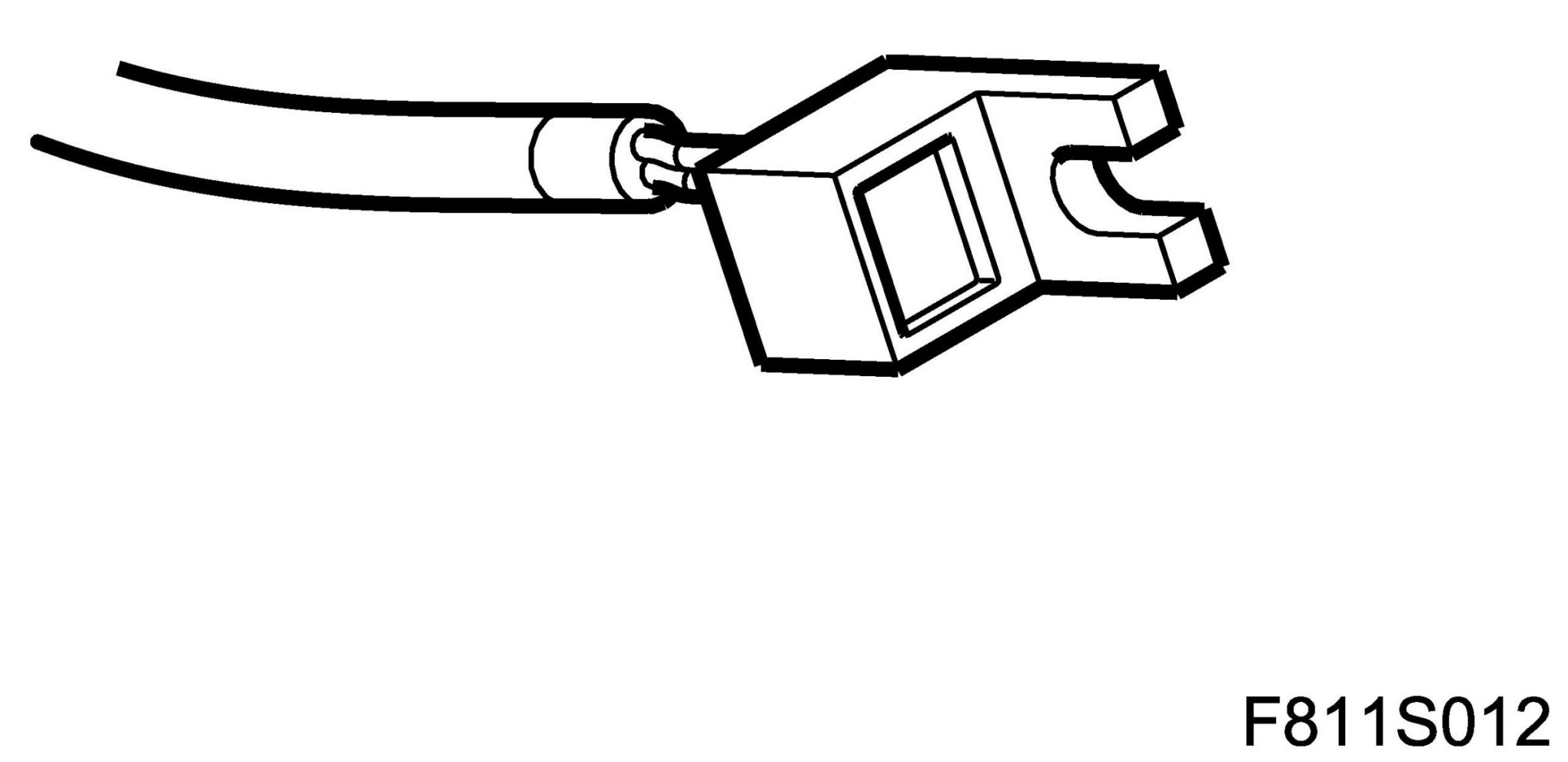

Hall sensor with inbuilt magnet.

Connection

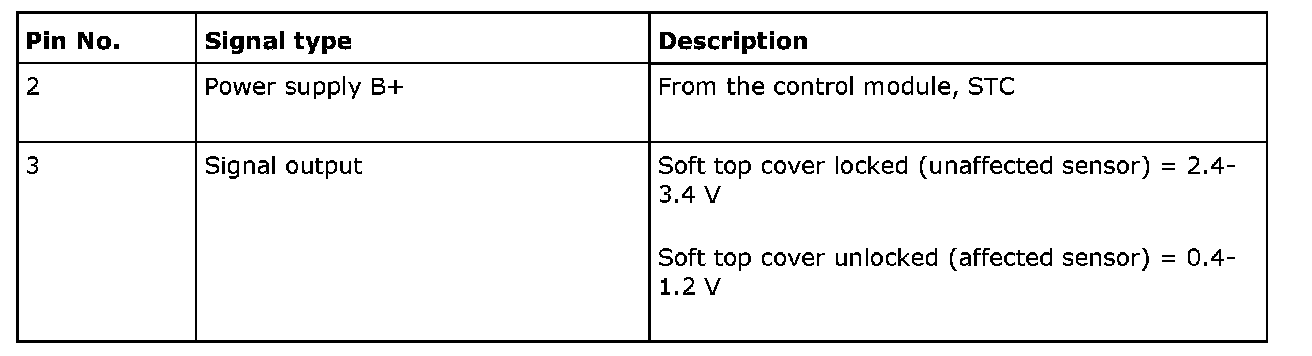

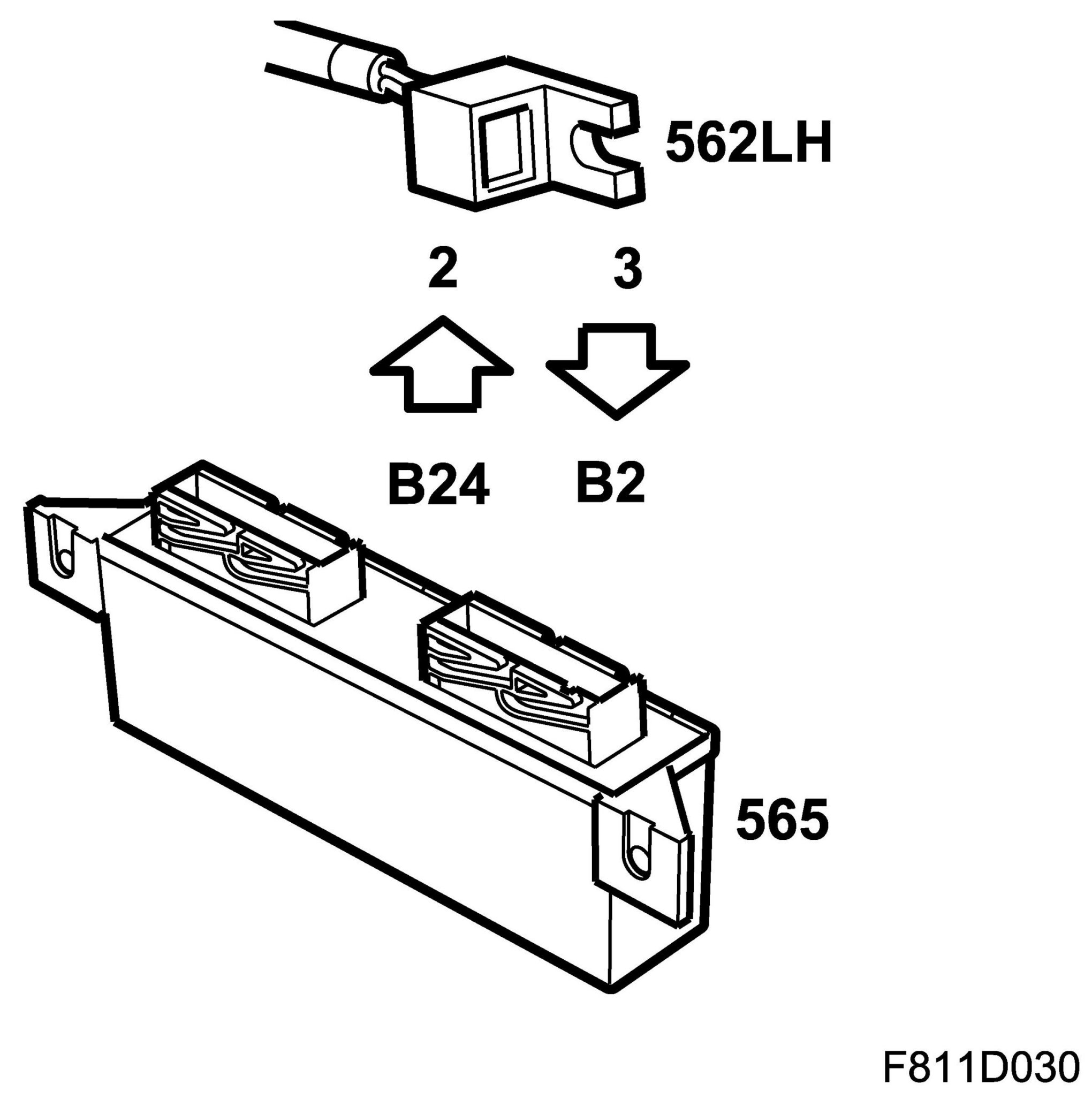

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3 indicating if the soft top cover is locked on the RH side.

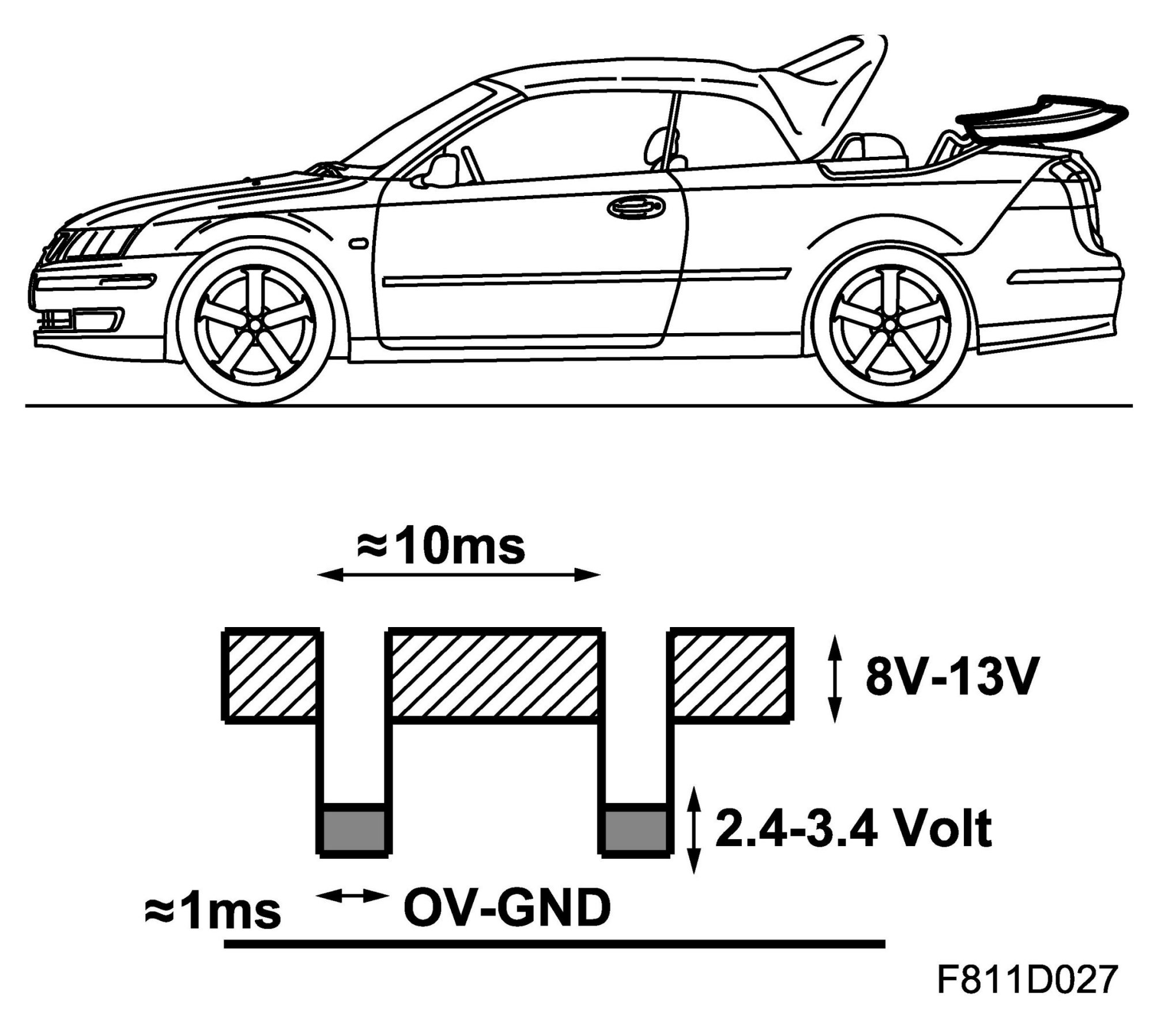

The sensor is affected by a link on the RH side of the soft top cover. The sensor is affected when the soft top cover is locked.

Diagram

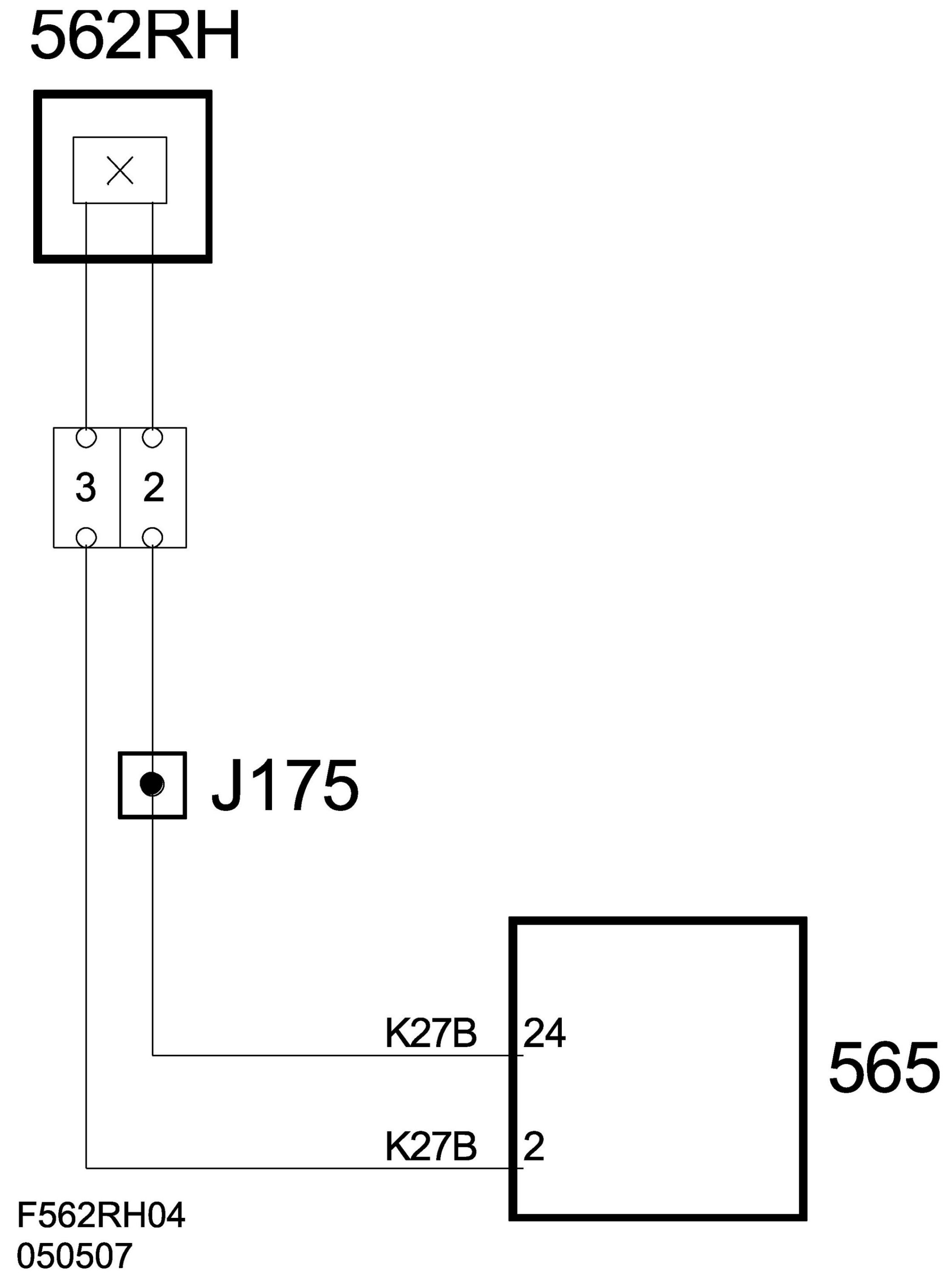

Position sensor, soft top cover locked, RH (562RH)

Position Sensor, Soft Top Cover Locked, RH (562RH):
