Position Sensor, Soft Top Bag Down (564)

Position Sensor, Soft Top Bag Down (564)

Location







Main task
The sensor gives information to the STC control module on the state of the soft top bag.

Soft top bag down







Soft top bag down

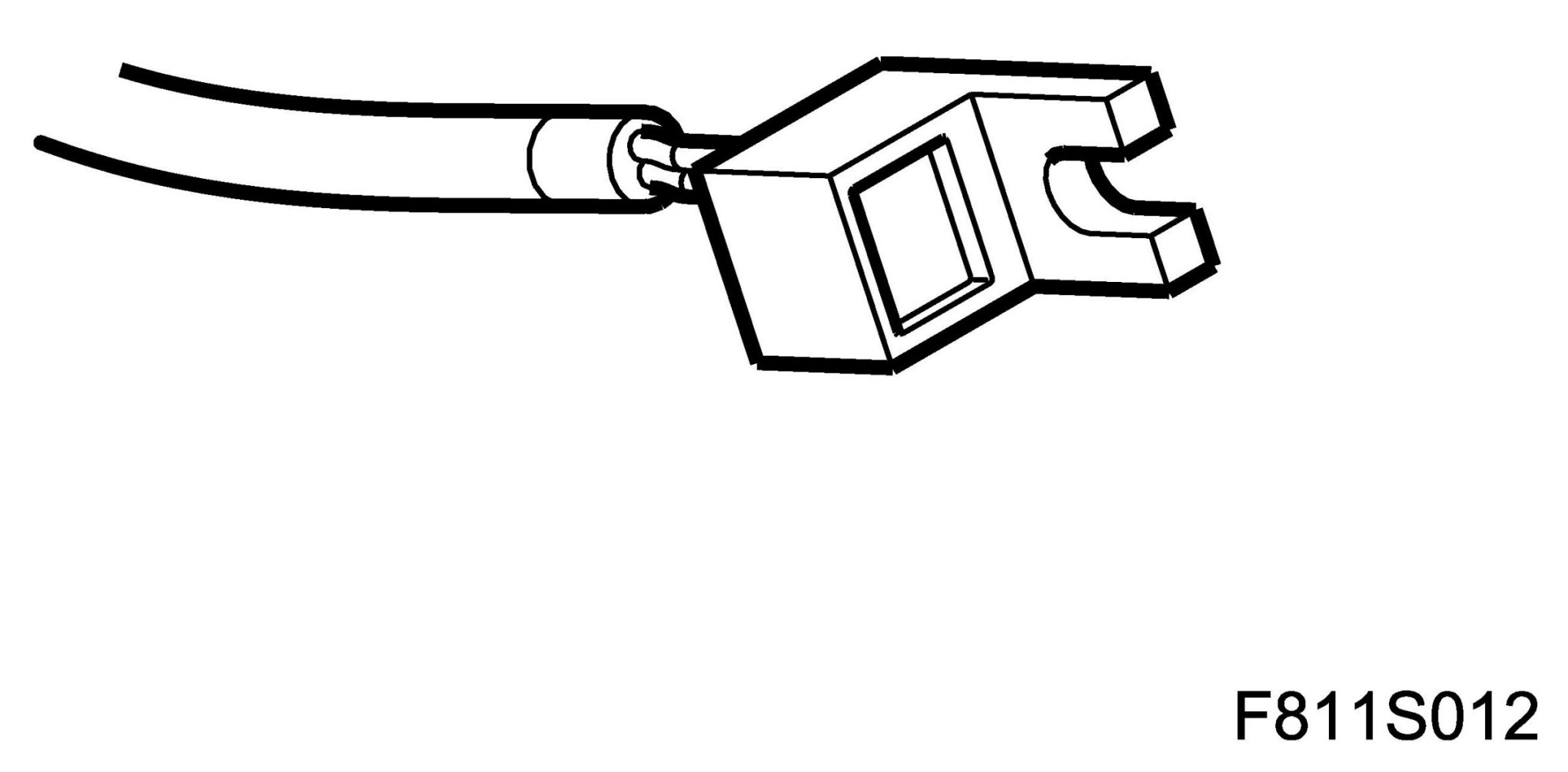

Type
Hall sensor with inbuilt magnet.

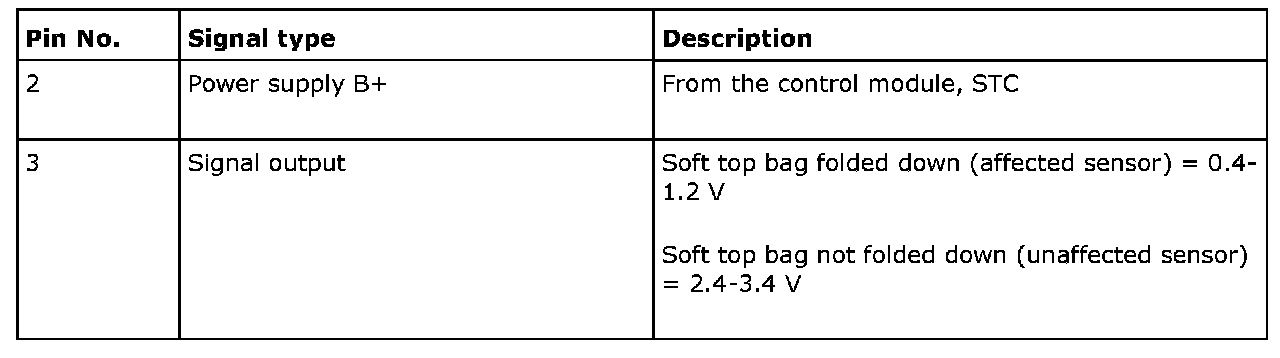

Connection










The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information on the soft top bag position to the STC control module on pin 3.

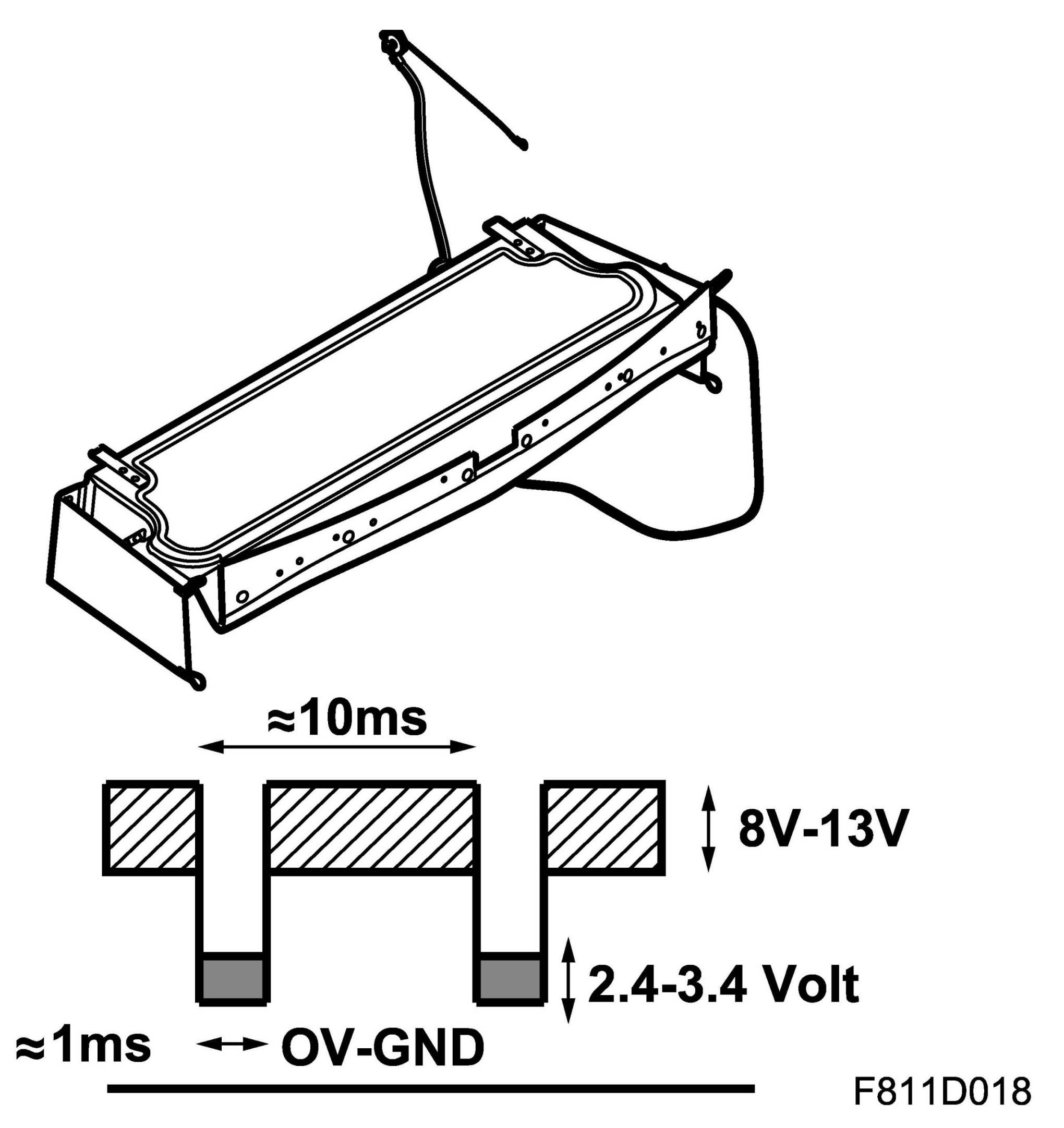

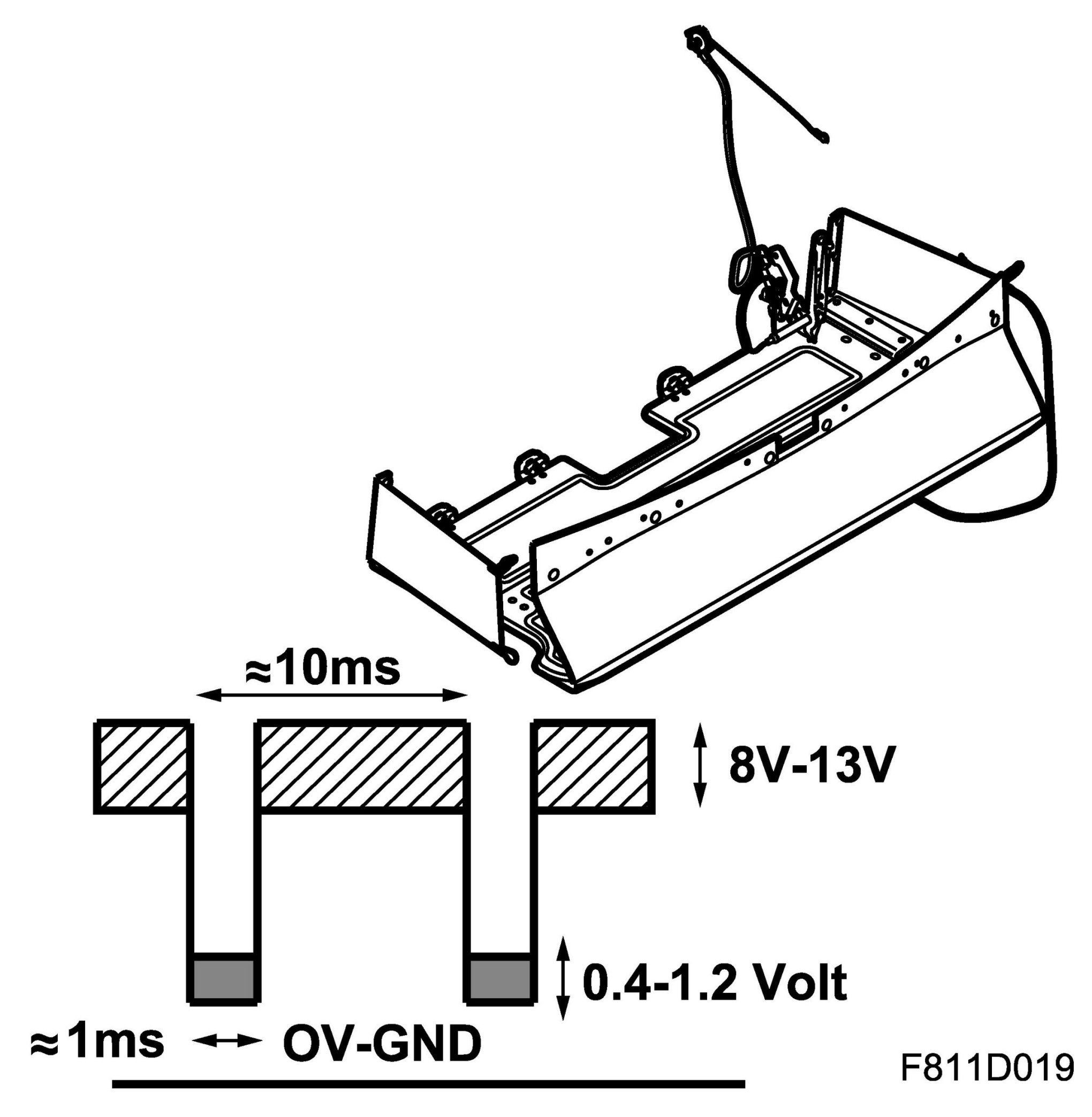

The sensor is affected by a metal tongue on the mechanism that controls the soft top bag. The sensor is affected when the soft top bag is completely folded down.

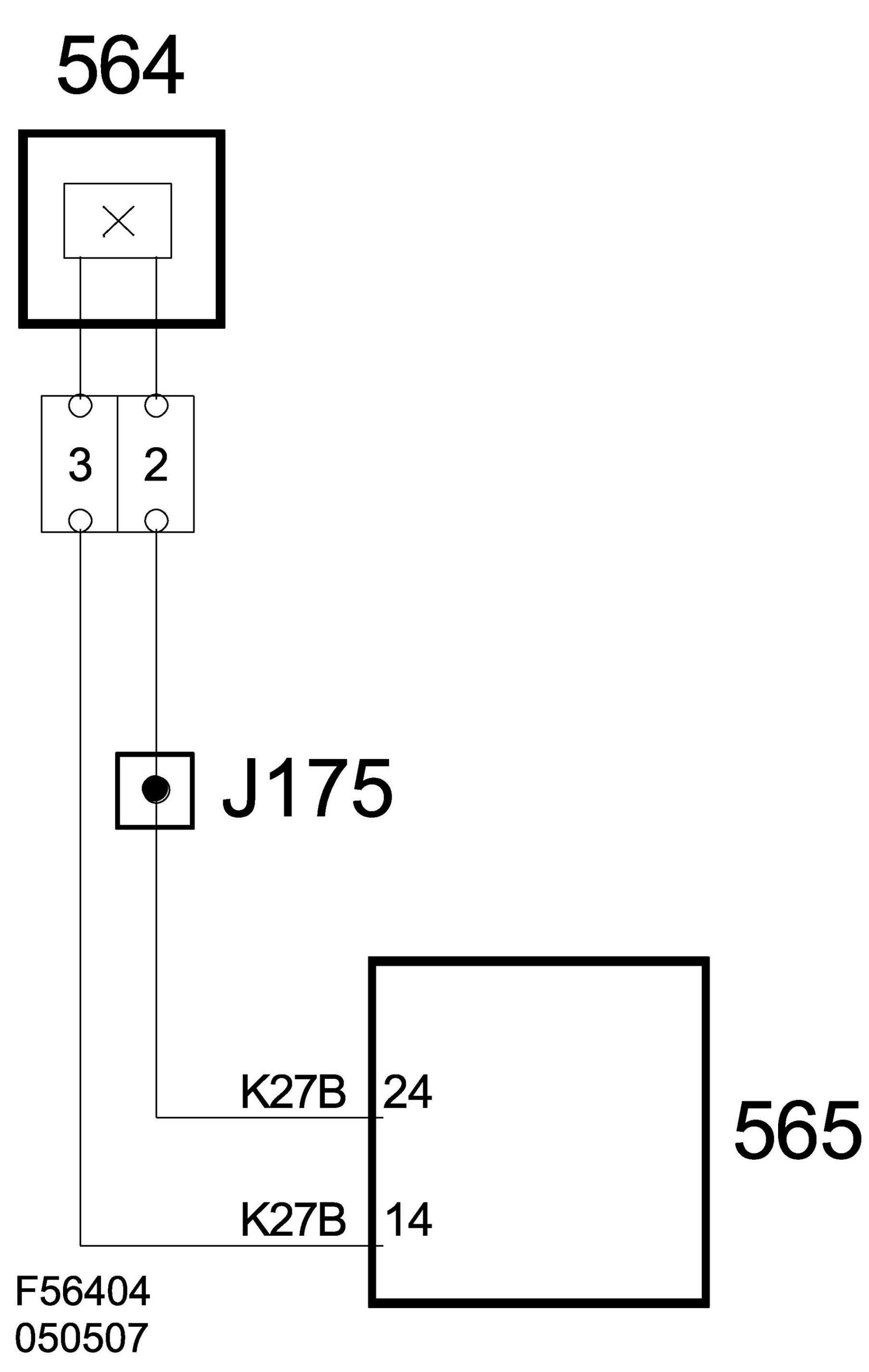

Diagram







Position sensor, soft top bag down (564)

Position Sensor, Soft Top Bag Down (564):
