Position Sensor, Sixth Bow Raised (578u)

Position Sensor, Sixth Bow Raised (578u)

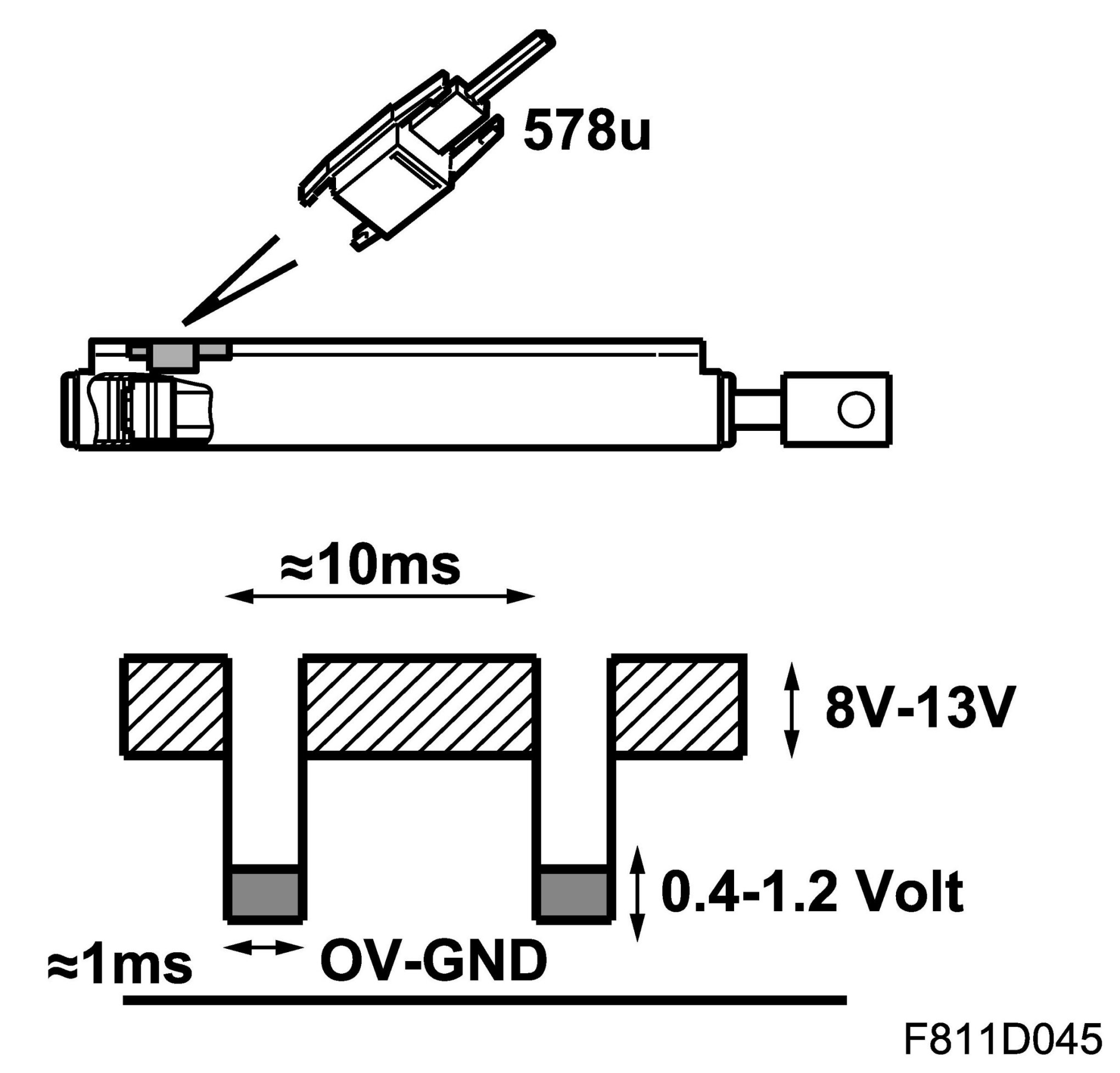

Location







Main task
The sensor informs the STC control module if the sixth bow is raised.

Bow Lowered







Bow raised

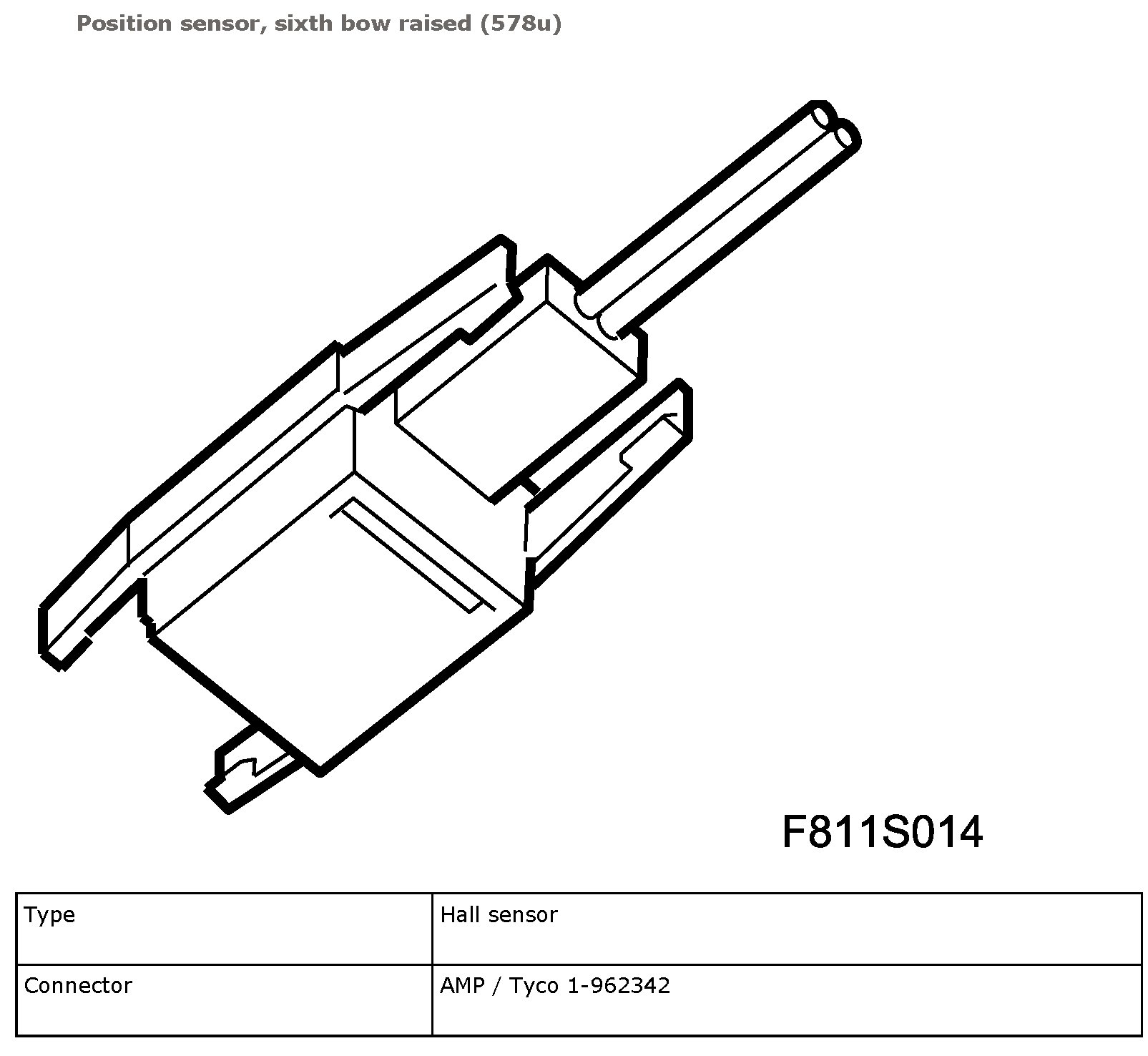

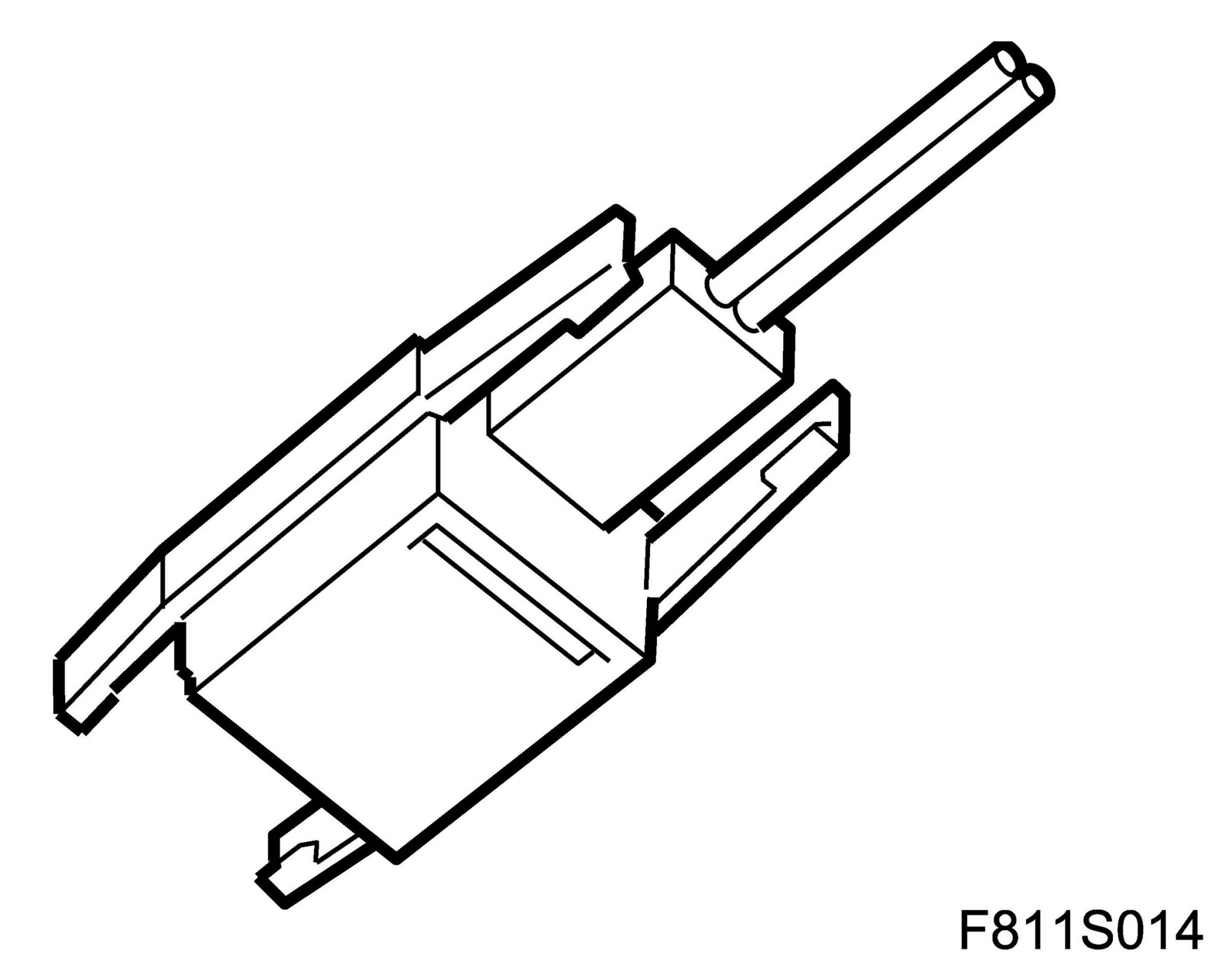

Type
Hall sensor with inbuilt magnet.

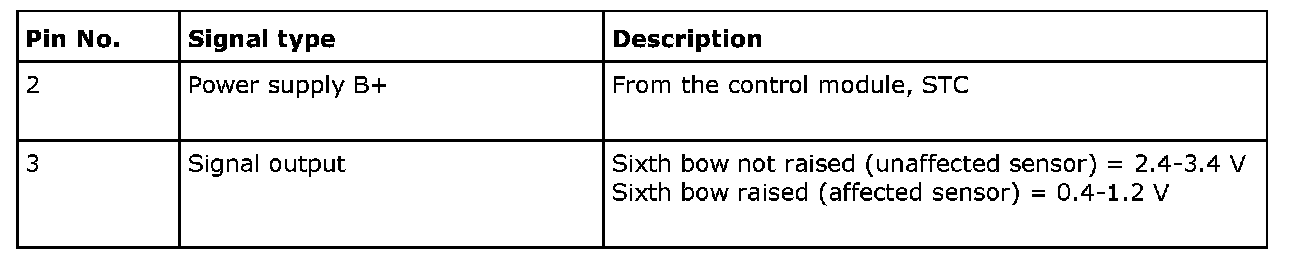

Connection










The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3.

The sensor is affected by the cylinder piston. The sensor is affected when the piston is in its upper position and the sixth bow is raised.

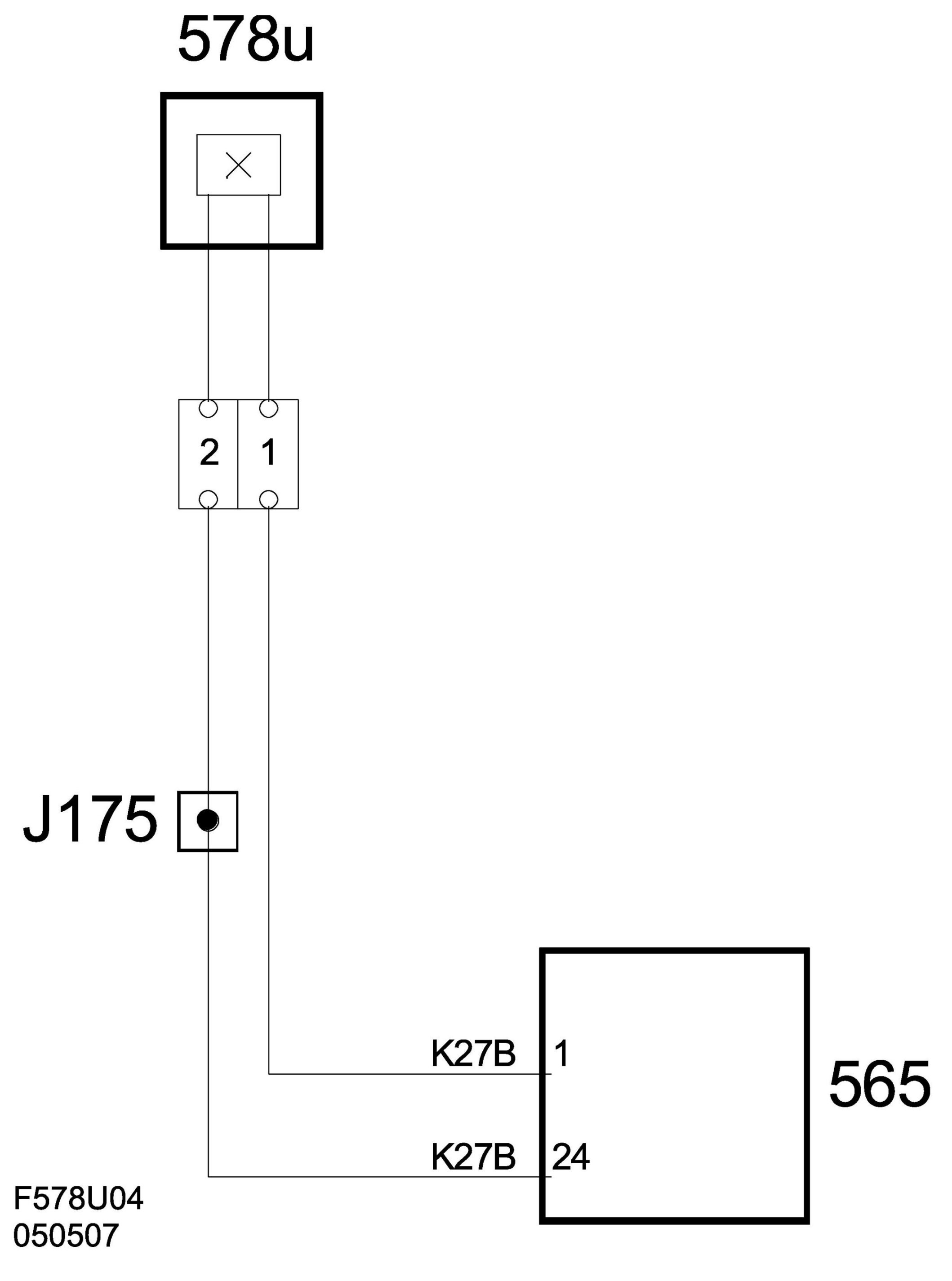

Diagram







Position Sensor, Sixth Bow Raised (578u)

Position Sensor, Sixth Bow Raised (578u):
