Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Seat Position Sensor >> Locations >> Position Sensor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357De)

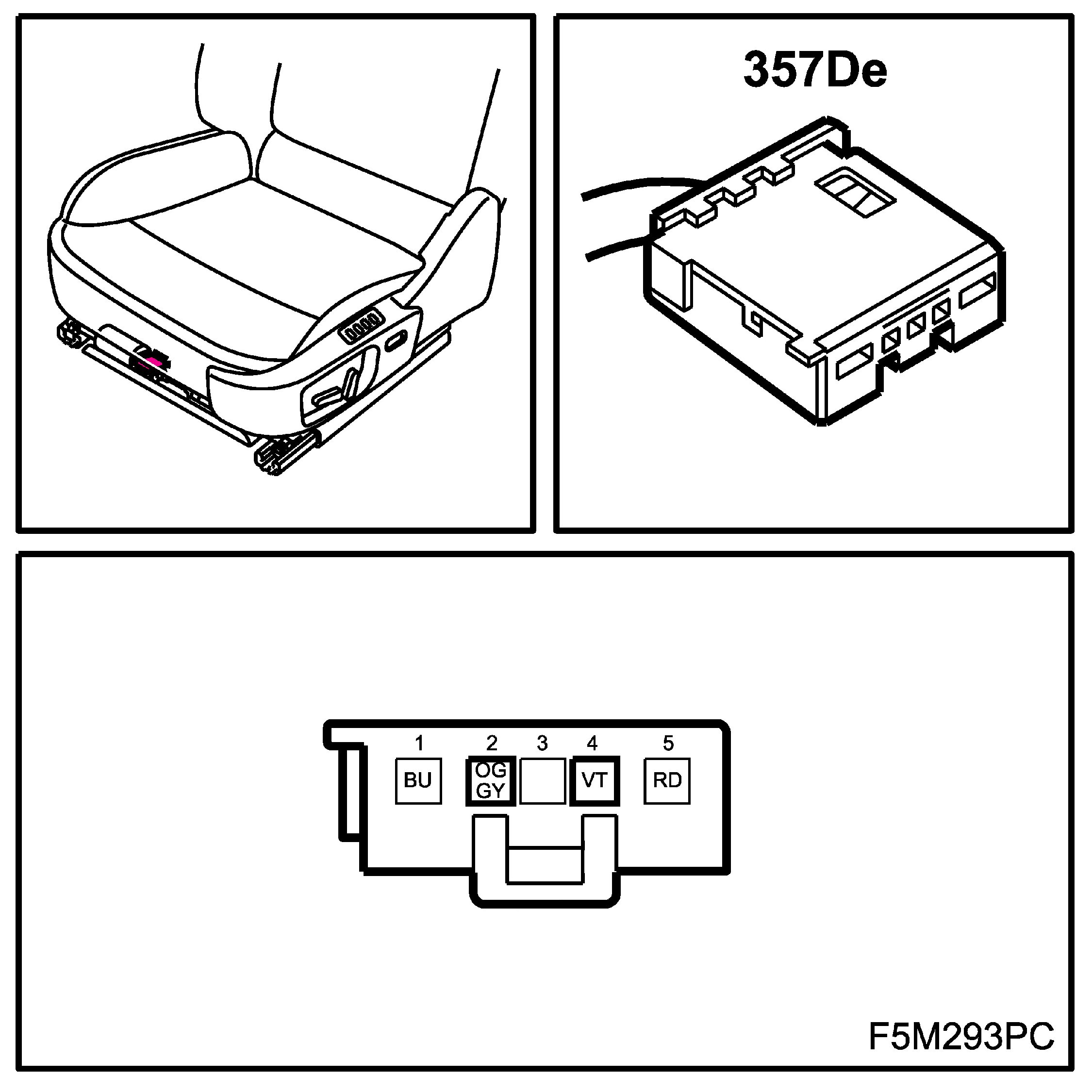

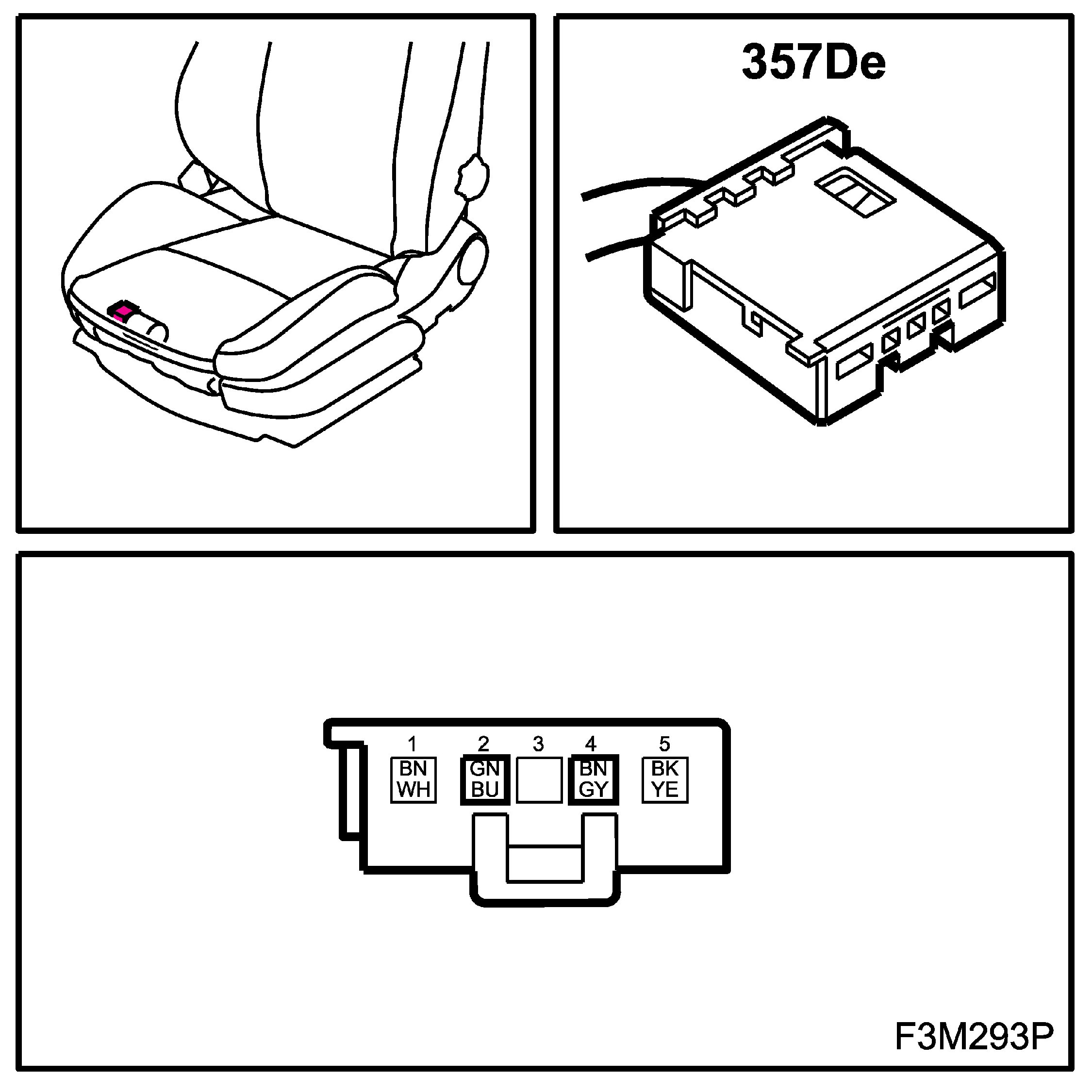

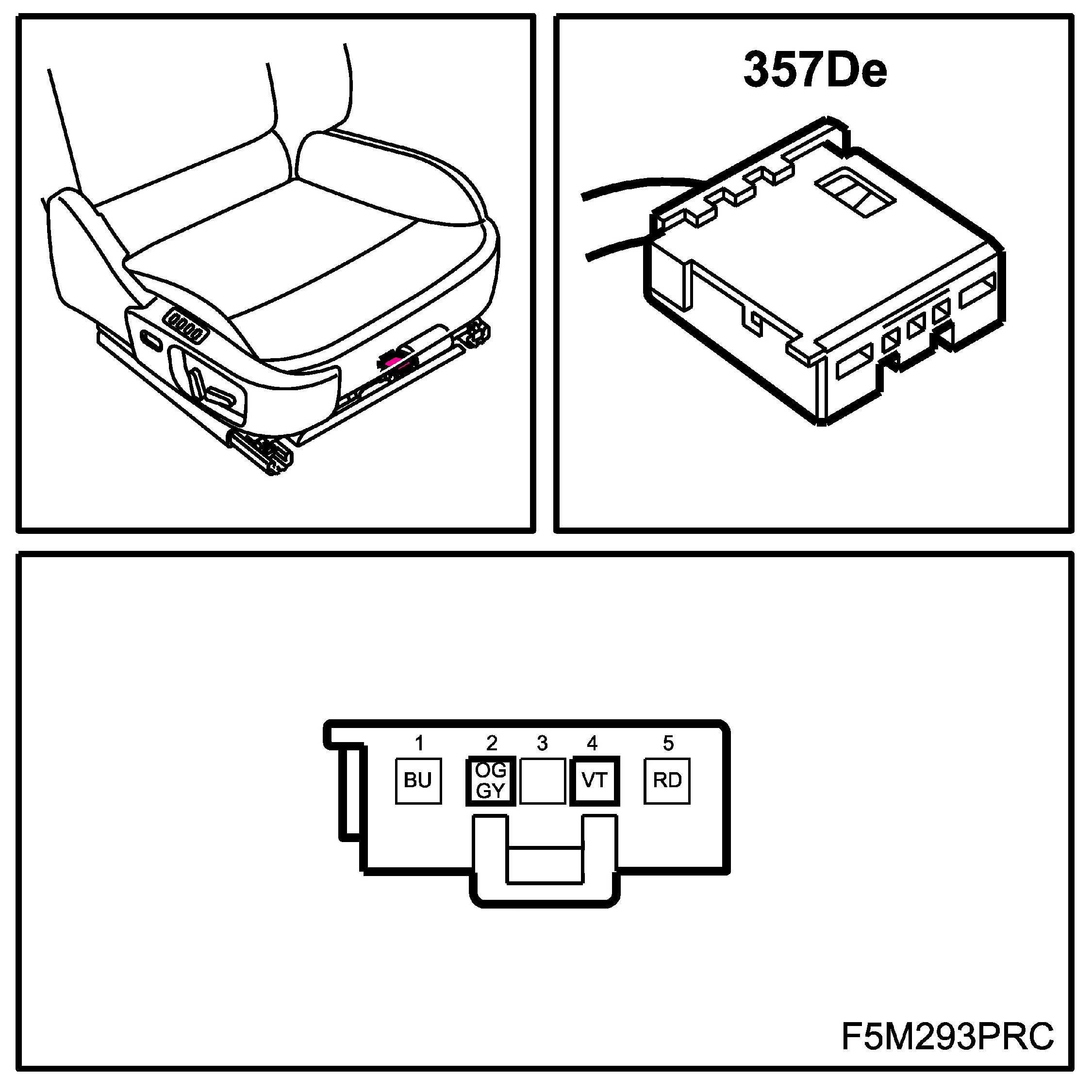

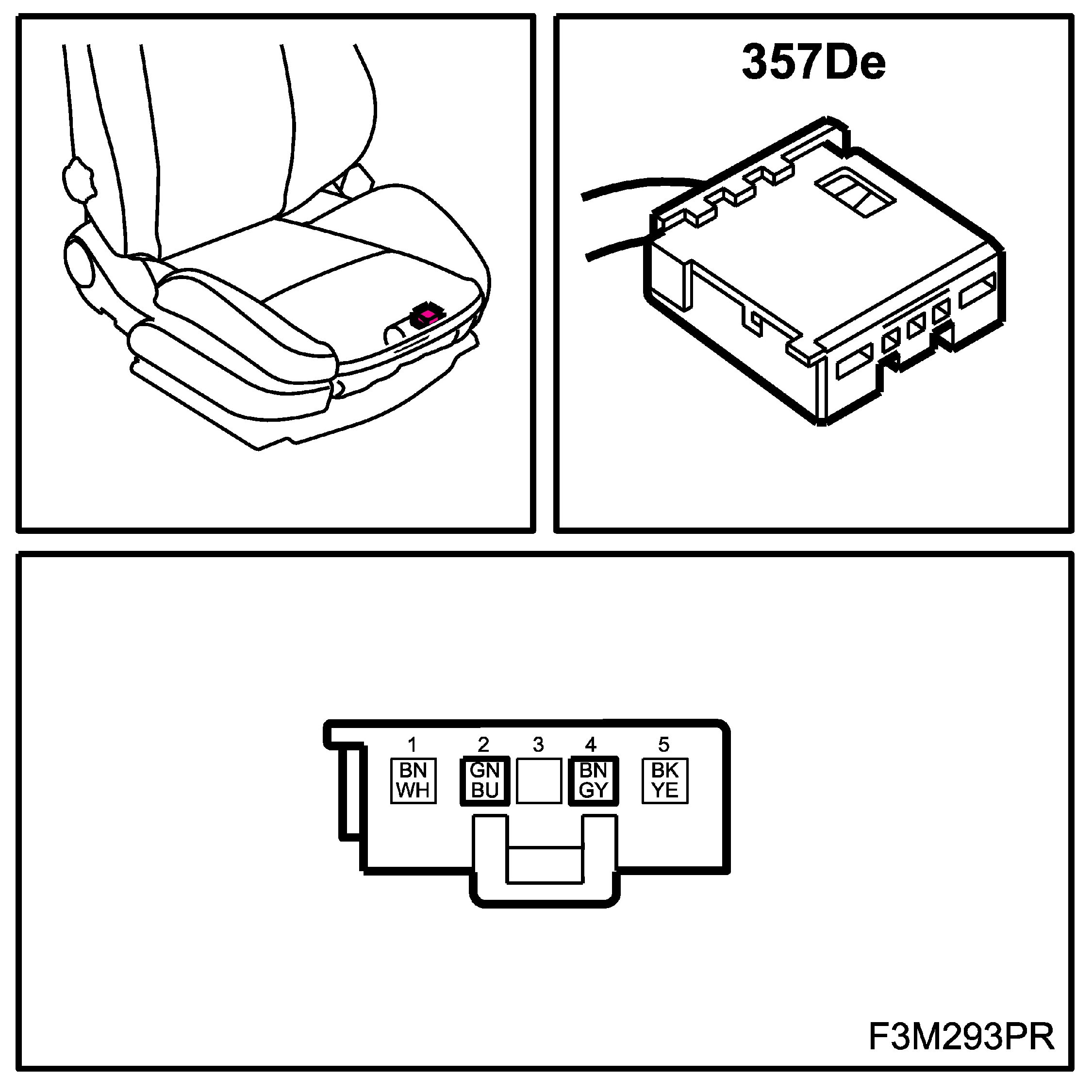

Position Sensor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357De)



Position Sensor, Length Adjustment, Electrically Operated Driver's Seat With Memory (357De)

Location: on the motor shaft

4D LH







4D RH







CV LH







CV RH
