Impact Sensor, Side, Rear (328RD, 328RP)

Impact Sensor, Side, Rear (328RD, 328RP)

WARNING: Read through Safety and handling instructions and Before removing a control module before starting work.

To remove

WARNING: The battery's ground cable must be removed before the positive cable. Wait for at least 1 minute after disconnecting the battery before beginning any work on the airbag system. Otherwise the airbag may be deployed unintentionally and this can cause fatal/severe personal injuries.

1. Turn the ignition key to the position LOCK.
2. Remove the rear seat.
3. Remove the rear scuff plate.

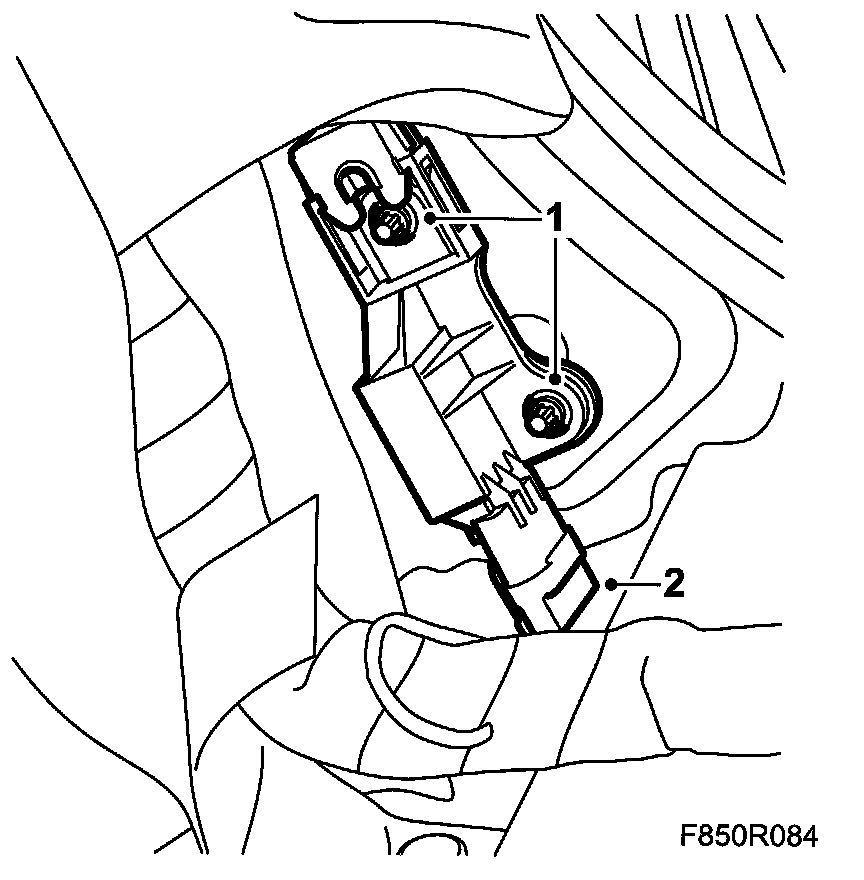

4. Dismantle the side impact sensor's connector.







5. Loosen the screws a few turns. Press together the locking clips on the outer part of the sensor. Press up the lower part of the sensor and pull out the sensor.

To fit

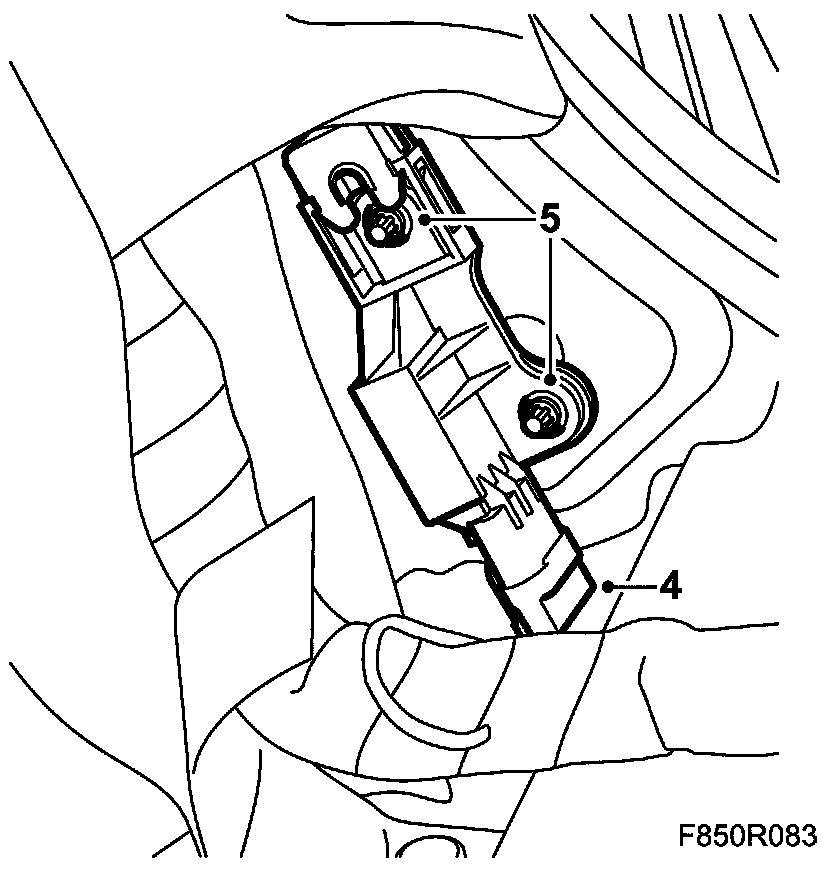

1. Fit the side impact sensor by placing the sensor in its position. Pull down the lower part of the sensor. Tighten the screws.







Tightening torque 6 Nm (4 lbf ft)

2. Connect the side impact sensor's connector.
3. Fit the rear scuff plate.
4. Fit the rear seat.
5. Connect the battery.
6. Turn ON the ignition and check the airbag system and control module using the diagnostic tool as follows:
Connect the diagnostic tool to the data link connector under the dashboard. Delete any diagnostic trouble codes.
Turn the ignition OFF and then ON again. Wait at least 1 minute with the ignition on.
Check whether a diagnostic trouble code is displayed:
If a diagnostic trouble code is displayed:
Carry out fault diagnosis according to the instructions under respective trouble codes.
If no diagnostic trouble code is displayed:
Fitting completed correctly. Disconnect the diagnostics instrument.
7. Carry out Measures after disconnecting the battery.
