Seat Belt Buckle, Rear, Sedan

Seat-Belt Buckle, Rear

To remove
1. Remove the rear seat.
2. Dismantle the seat belt buckle.







To fit

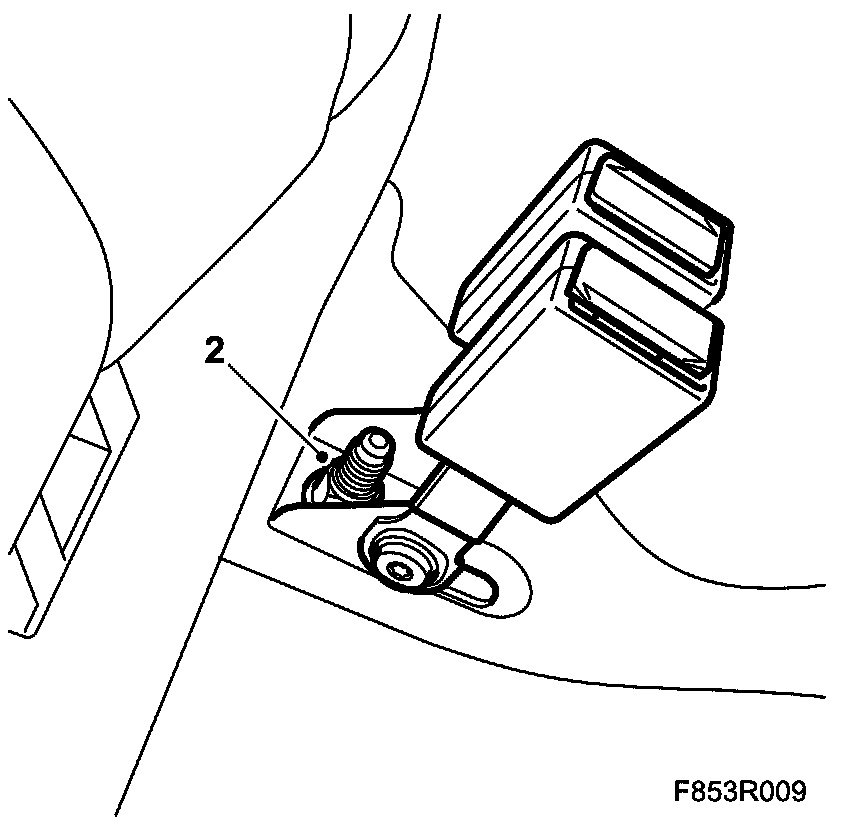

1. Fit the seat belt buckle. Make sure that the seat belt buckle's guide tab faces the right way.







Tightening torque 45 Nm (33 lbf ft)

2. Fit the rear seat.
3. Check the operation of the seat belt buckle.
