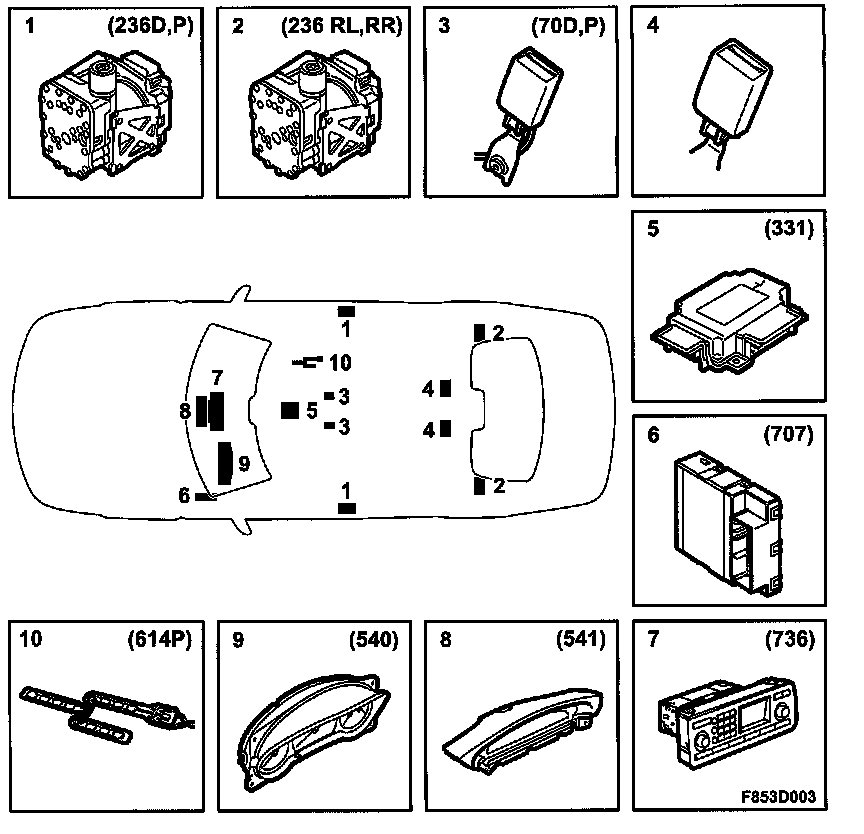

Main Components

Main Component

1. Front seat-belt with belt tensioner (236D, 236P)







2. Rear seatbelt with belt pretensioner (outer seats, CV) (236RL, 236RR)
3. Front seat-belt buckle sensor (70D, 70P)
4. Rear seat-belt buckle
5. Airbag control module (331)
6. Control module, BCM (707)
7. ICM (736)
8. SID (541)
9. Main instrument display panel, MIU (540)
10. Sensor, loaded seat cushion, front passenger seat (614P)
