Belt Pretensioner (236C, 236P) (236RD, 236RP, Convertible)

Belt Pretensioner (236C, 236P) (236RD, 236RP, CV)







Main task
The belt tensioner pulls the belt taut during the event of a collision, reducing forward movement of the driver or passenger. Additionally, force limiters release the belt according to a controlled sequence.

Type

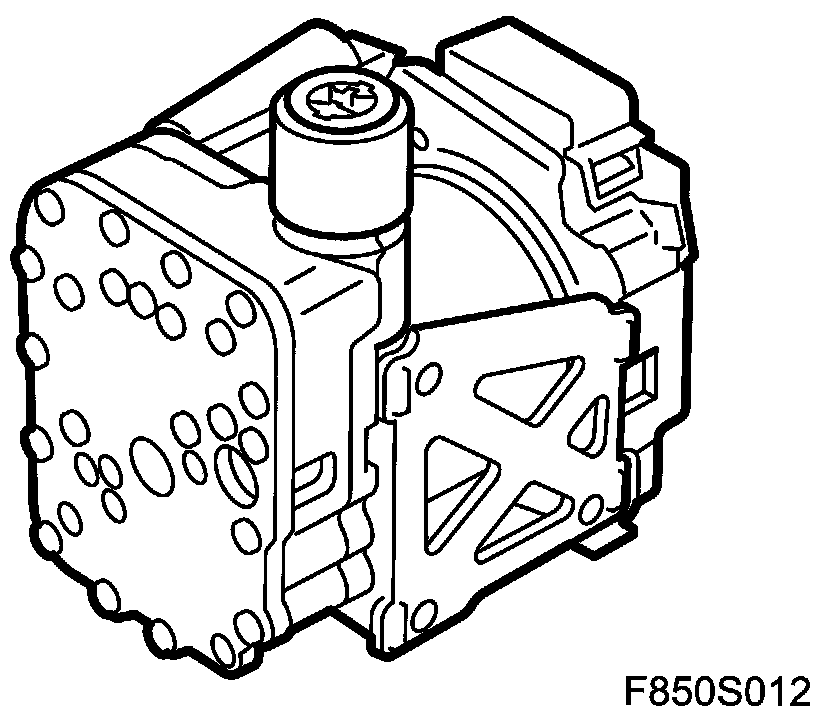

The compact belt tensioner is a part of the inertia reel consisting of an explosive charge, feeler gauge, filter and a torsion unit.

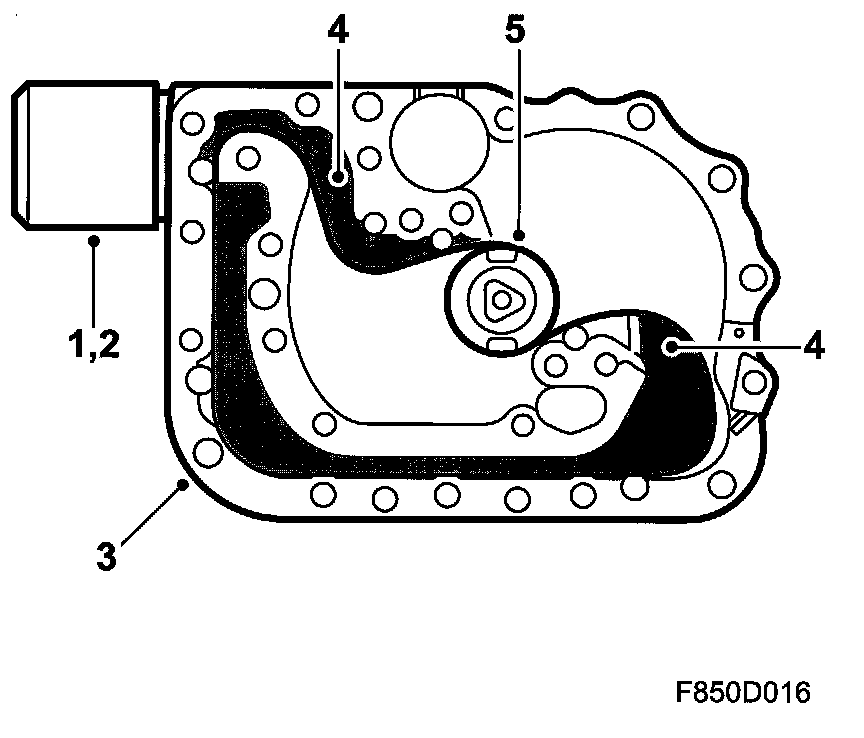

1. Detonator







2. Charge
3. Belt tensioner housing
4. Chamber
5. Steel band

Connect

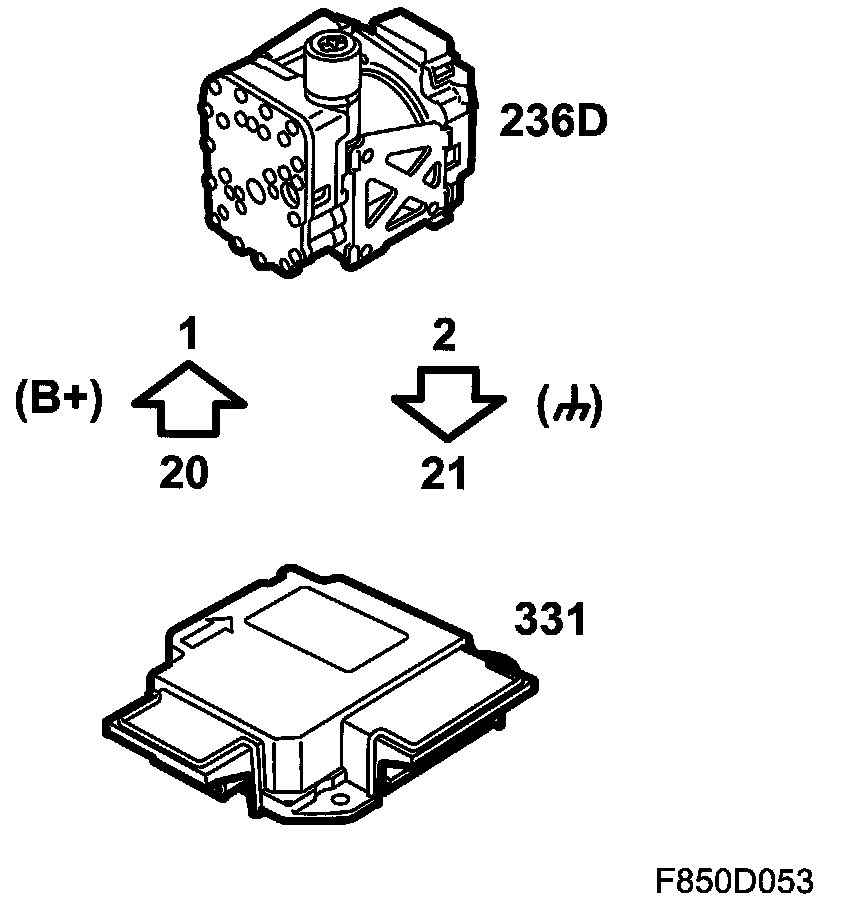

The driver's side belt tensioner is connected to pin 20 (B+) and pin 21 (ground) on the airbag control module (236D).

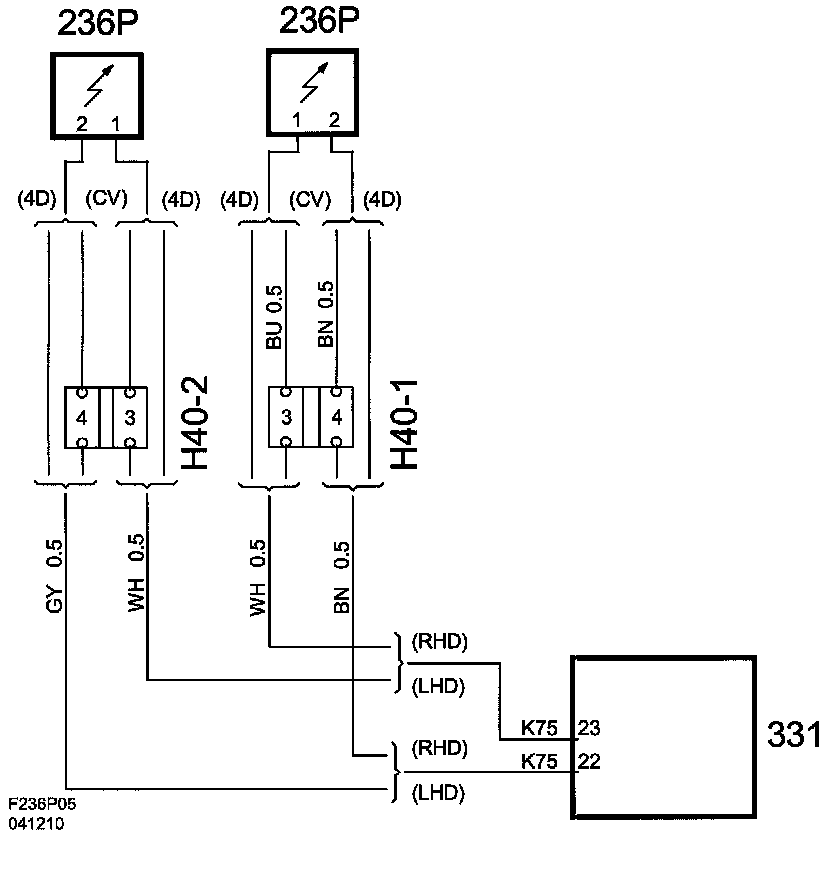

The passenger side belt tensioner is connected to pin 23 (B+) and pin 22 (ground) on the airbag control module (236P).







The belt tensioner in the rear seat behind the driver (236RD) is connected to pin 45 (B+) and pin 46 ground.

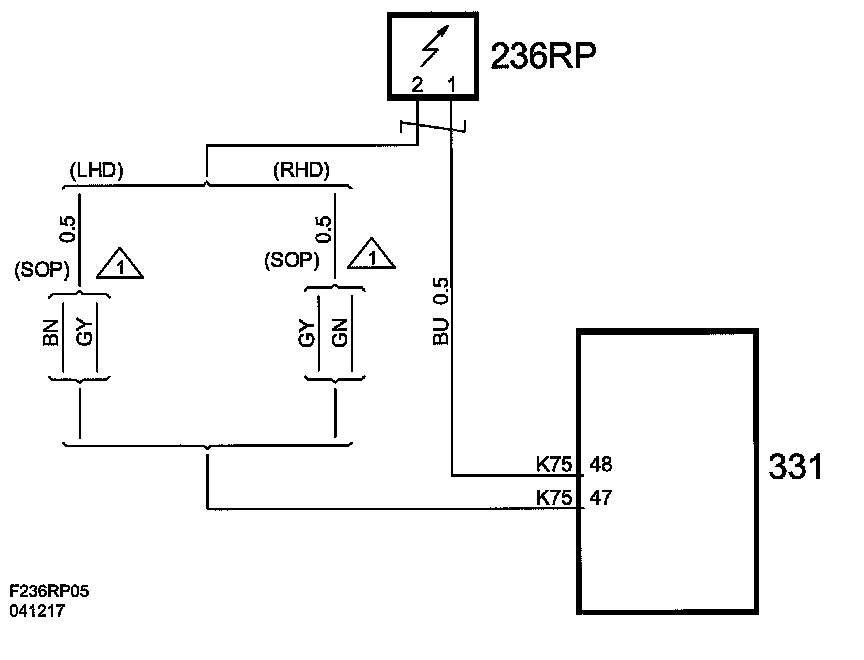

The belt tensioner in the rear seat behind the passenger (236RP) is connected to pin 48 (B+) and pin 47 ground.
