Sedan

Brief Description

Overview

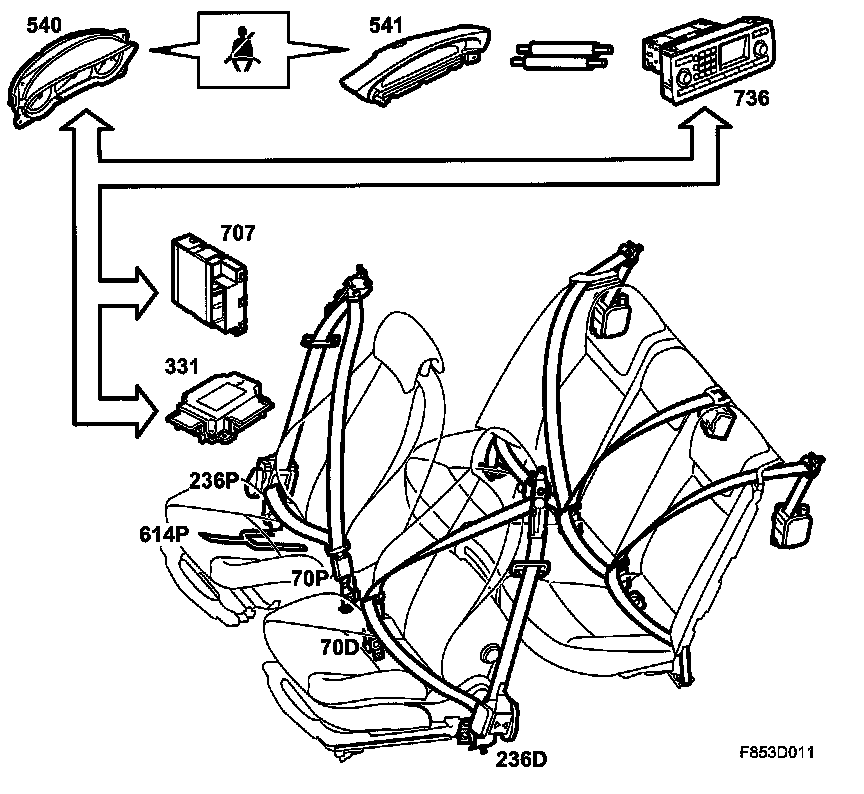

4D:







- Front seat-belt with belt tensioner (236D, 236P)
- Rear seatbelt with belt pretensioner (outer seats, CV) (236RL, 236RR)
- Front seat-belt buckle sensor (70D, 70P)
- Rear seat-belt buckle
- Airbag control module (331)
- Control module, BCM (707)
- ICM (736)
- SID (541)
- Main instrument display panel, MIU (540)
- Sensor, loaded seat cushion, front passenger seat (614P)

Description

4D: The seatbelt system comprises two front seat-belts and three rear seat-belts. All belts are of the three-point variety. The front seat-belts have belt pretensioners.

The driver receives a seat-belt warning in the main instrument panel and in the SID (Saab Information Display) which monitors seat-belt locking. The passenger receives an SID seat-belt warning.
