Convertible

Brief Description

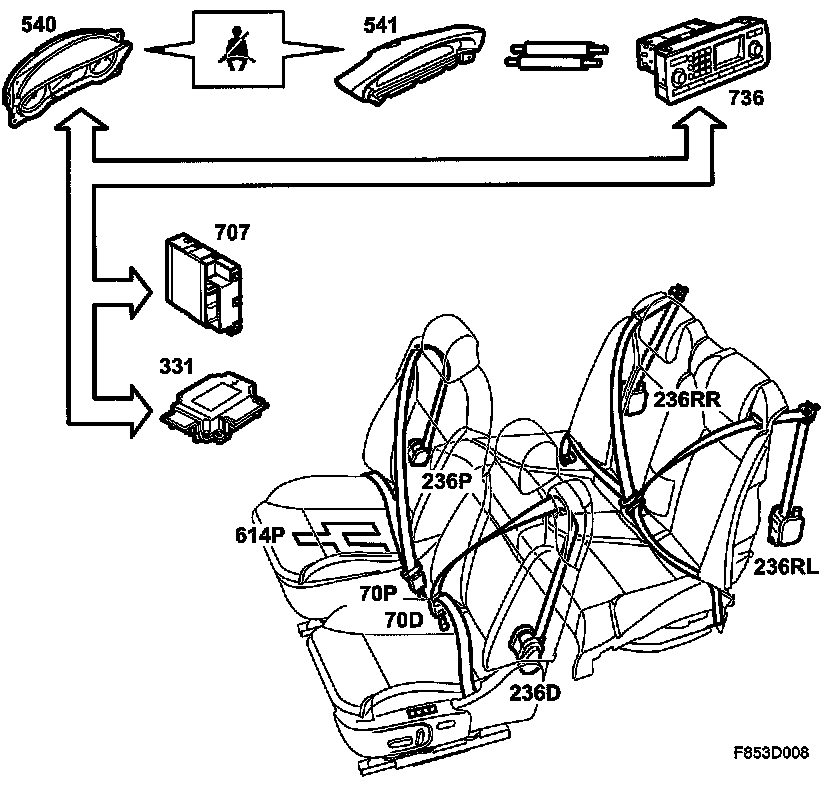

Overview
CV:







- Front seat-belt with belt tensioner (236D, 236P)
- Rear seatbelt with belt pretensioner (outer seats, CV) (236RL, 236RR)
- Front seat-belt buckle sensor (70D, 70P)
- Rear seat-belt buckle
- Airbag control module (331)
- Control module, BCM (707)
- ICM (736)
- SID (541)
- Main instrument display panel, MIU (540)
- Sensor, loaded seat cushion, front passenger seat (614P)

Description

CV: The seatbelt system comprises two seat-belts integrated in the front seats and two rear seat-belts. All belts are of the three-point variety. All seat-belts have belt pretensioners. The belt pretensioners tension the belt straps in the event of a collision, which reduces the forward movement of the body.

The driver receives a seat-belt warning in the main instrument panel and in the SID (Saab Information Display) which monitors seat-belt locking. The passenger receives an SID seat-belt warning.
