Sedan

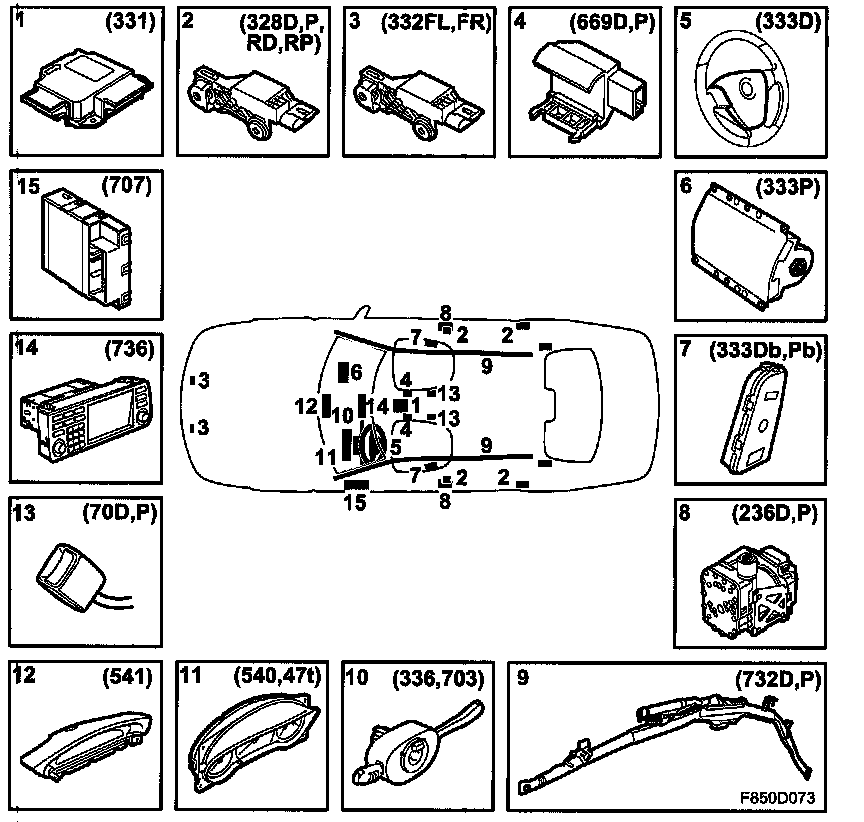

Main Components

4D







1. ACM on the exhaust tunnel between the front seats (331)
2. Impact sensor, side, front, driver/passenger side (328D/P)
4D: Impact sensor, side, rear, driver/passenger side (328D/RP)
3. Front impact sensor on the bumper rail under the radiator fairing, blue (332FL/FR)
4. Seat position sensor in the seat rail (669D, 669P)
5. Dual-stage driver airbag in the steering wheel (333D)
6. Dual-stage passenger airbag in the dashboard (333P)
7. Side airbag in the front seat (333Db, 333Pb)
8. Belt pretensioner (236D, 236P, 236RD, 236RP) (rear units in CV only)
9. 4D: Inflatable curtain, driver/passenger side, behind headlining (732D/P)
10. Steering wheel contact roller (336) (Column integration unit 703)
11. MIU (540)
12. SID (541)
13. Seat-belt buckle (70D, 70P)
14. ICM (736)
15. BCM (707)
