Manual Climate Control (504)

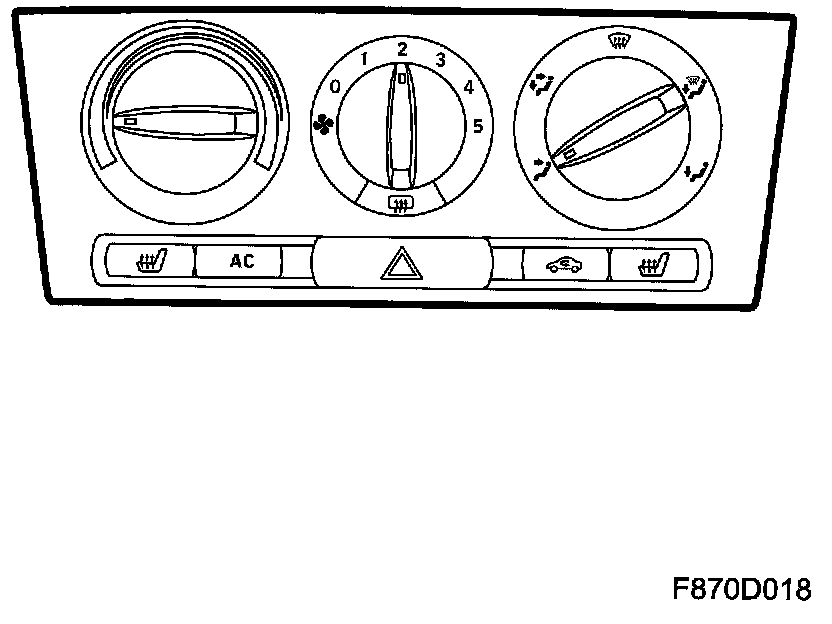

Control Panel, Manual Climate Control (504)

Main task
The control panel processor receives information from the heating/air distribution knob potentiometers, calculates and ensures that the DC motors for heating/air distribution positions correspond to the selections made by the user.







Type
Contains a microprocessor, see MCC, general description. Is not connected to a bus.

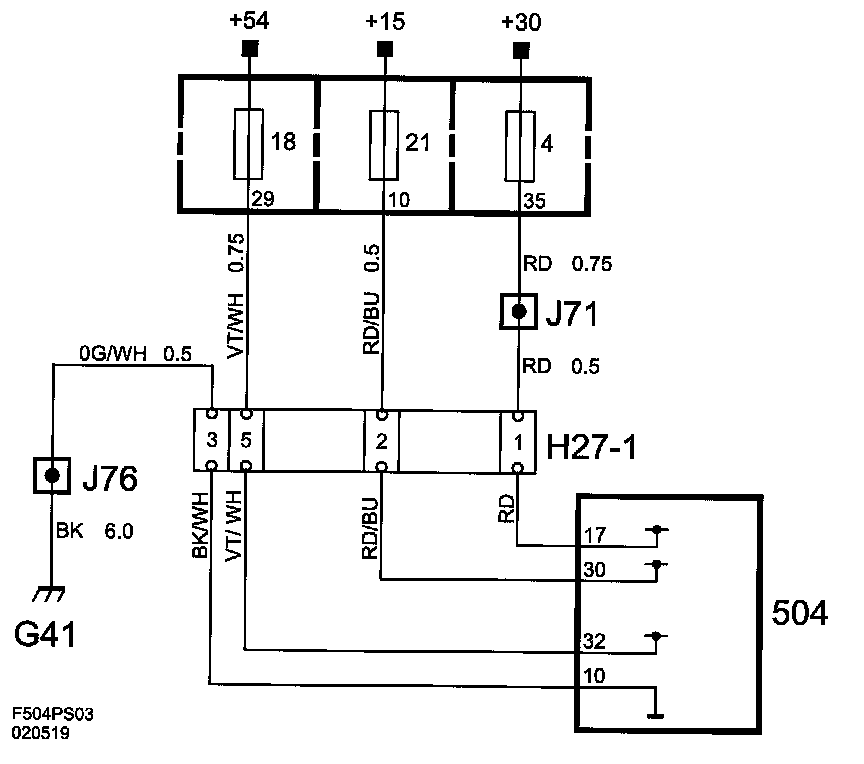

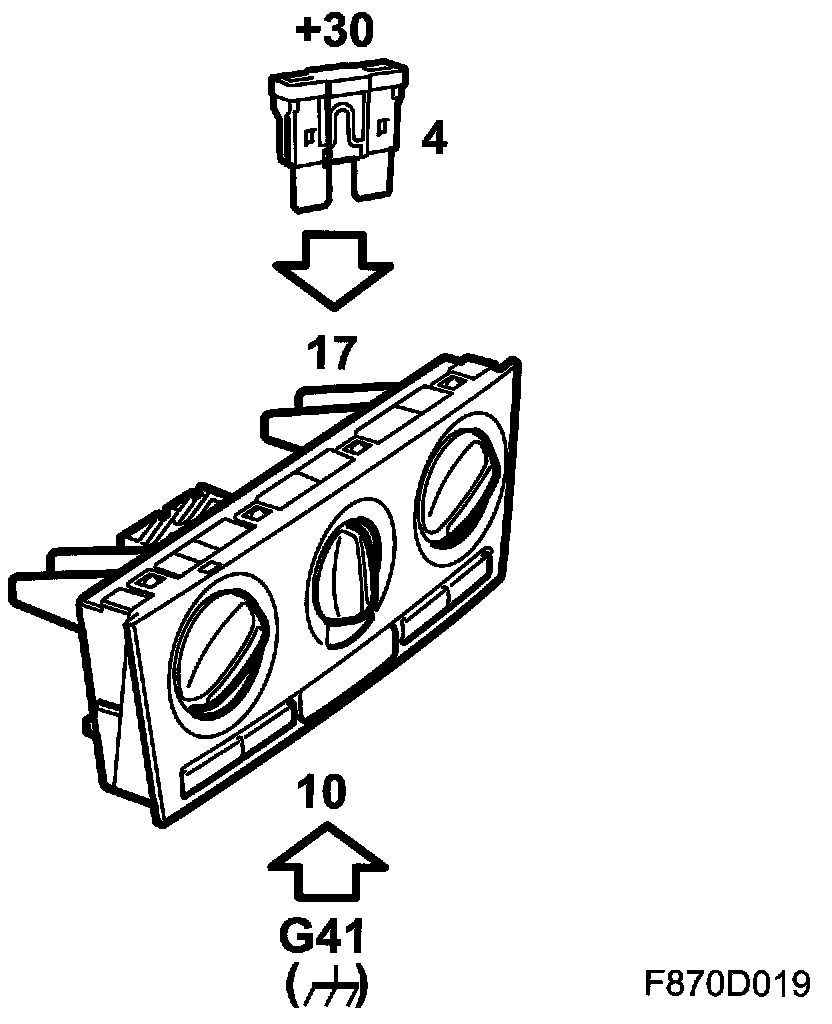

Power supply, ground and bus communication
