Rear Heated Oxygen Sensor (593), T8



T8

Location

component: after the catalytic converter

connector: brown connector on the bracket between the power steering pump and the vacuum pump

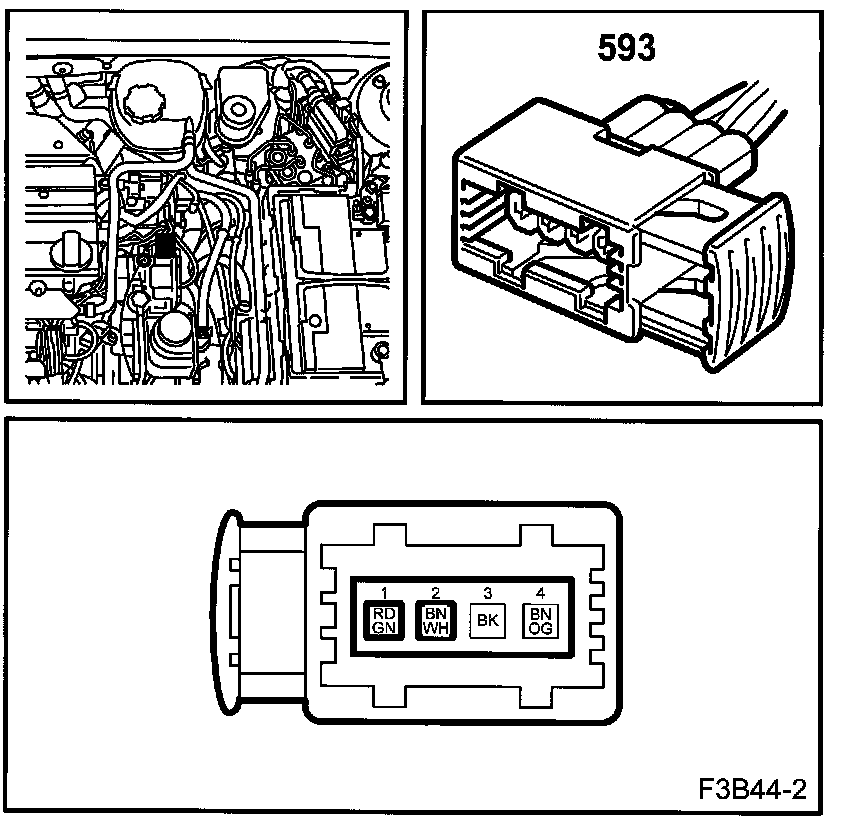

Heated Oxygen-sensor, Rear (593):
