9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Computers and Control Systems
>>
Fuel Tank Pressure Sensor
>>

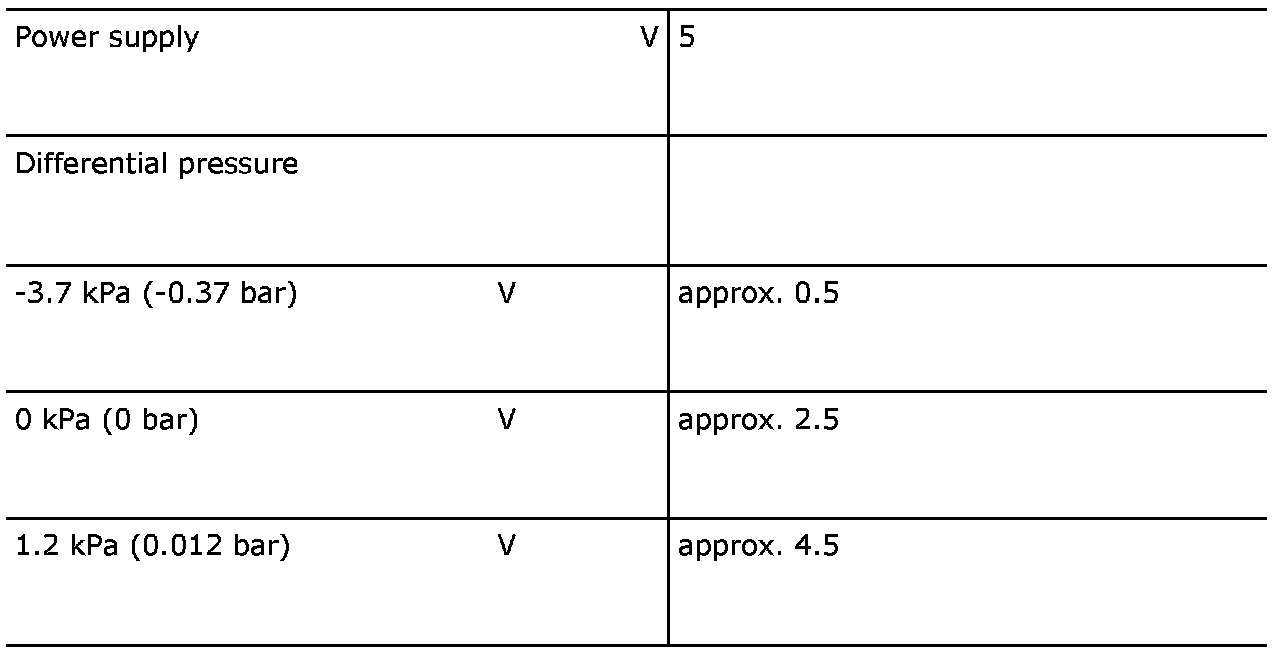

Specifications
>>

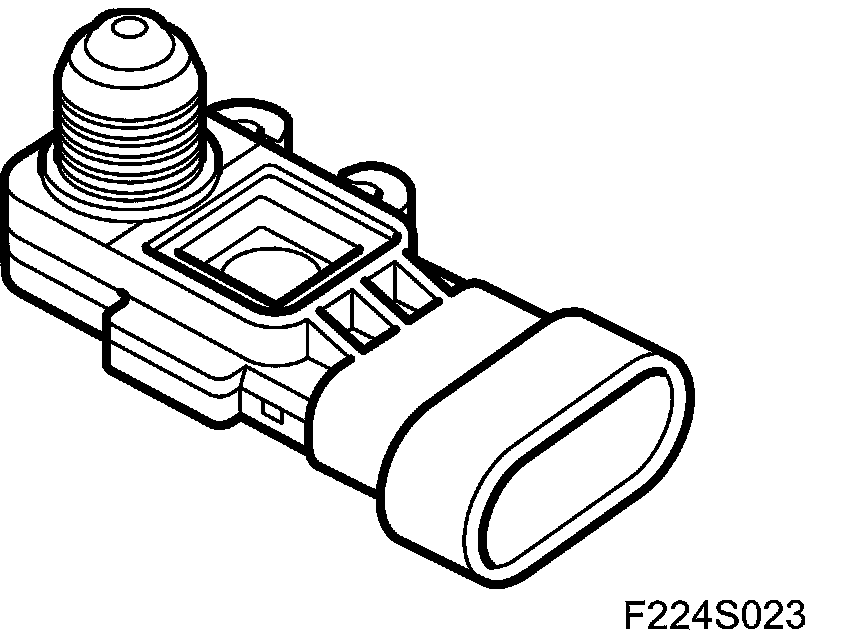

EVAP Pressure Sensor (585)
EVAP Pressure Sensor (585)
EVAP Pressure Sensor (585)

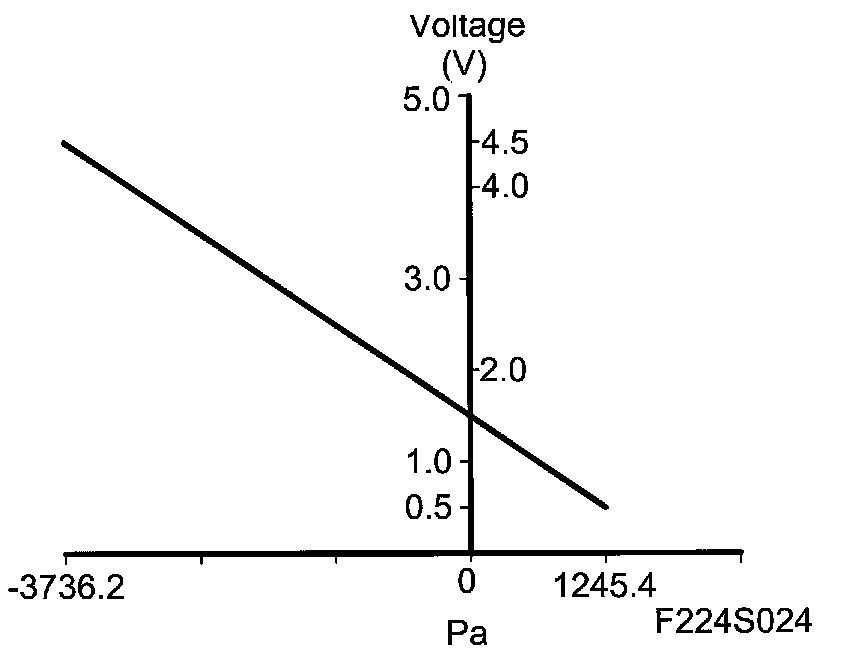

The pressure sensor determines the difference in pressure between the tank and the atmosphere, and supplies the control module with a proportional voltage.
