Spark Plug: Service and Repair

Spark Plug (157)

To remove

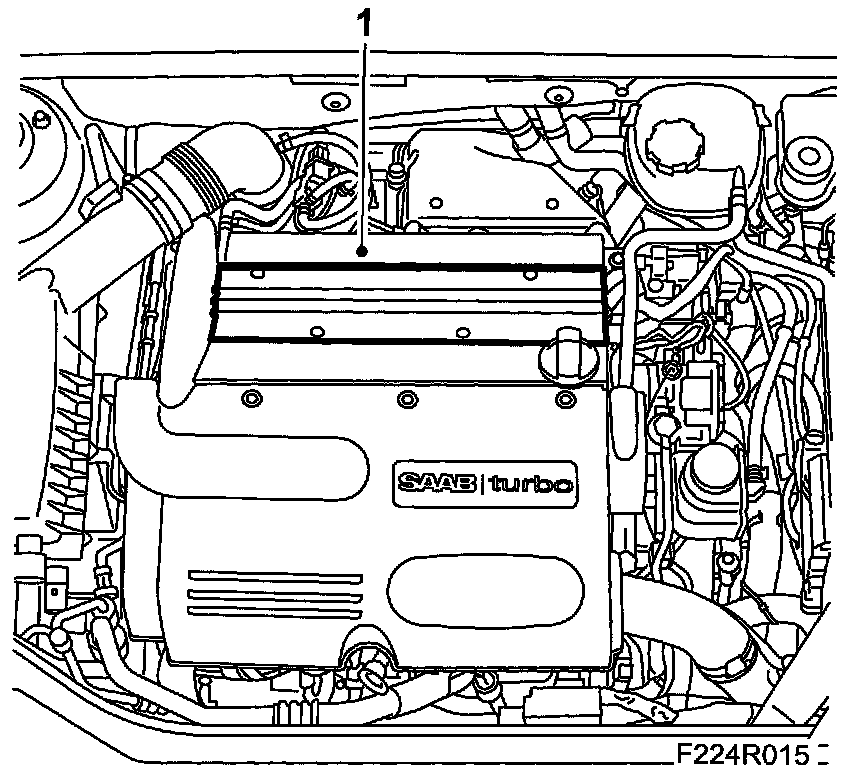

1. Remove the cover over the ignition coils.

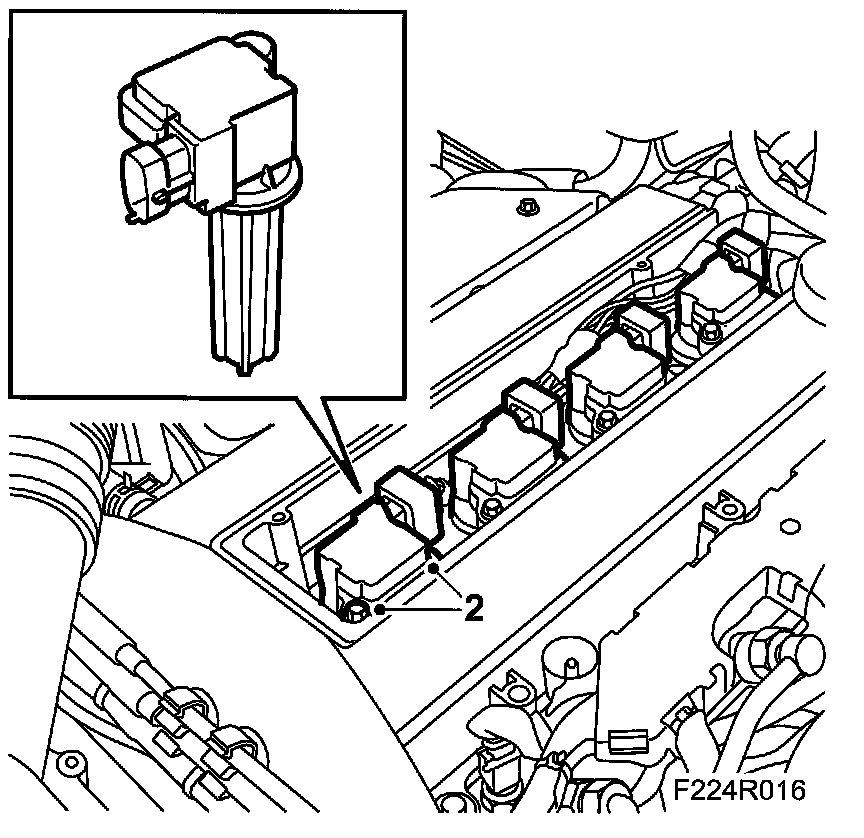

2. Remove the bolts, lift up each ignition coil and move aside. Start with the ignition coil for cylinder 1.
3. Remove the spark plugs, socket 8394785.

To fit
1. Check the spark plug gap as described in Spark plugs (157). Application and ID
2. Fit the spark plugs, keeping the socket straight so the spark plugs are not damaged.
Tightening torque 28 Nm (21 ft lbs).






3. Fit the respective ignition coils starting with the one for cyl 4.
Tightening torque 20 Nm (15 ft lbs).
4. Make sure to locate the ignition coil cables so they are not pinched.






5. Fit the cover over the ignition coils (1).
Tightening torque 8 Nm (6 ft lbs).
