Ignition Coil: Service and Repair

Ignition Coil With Integrated Power Module (320)

To remove

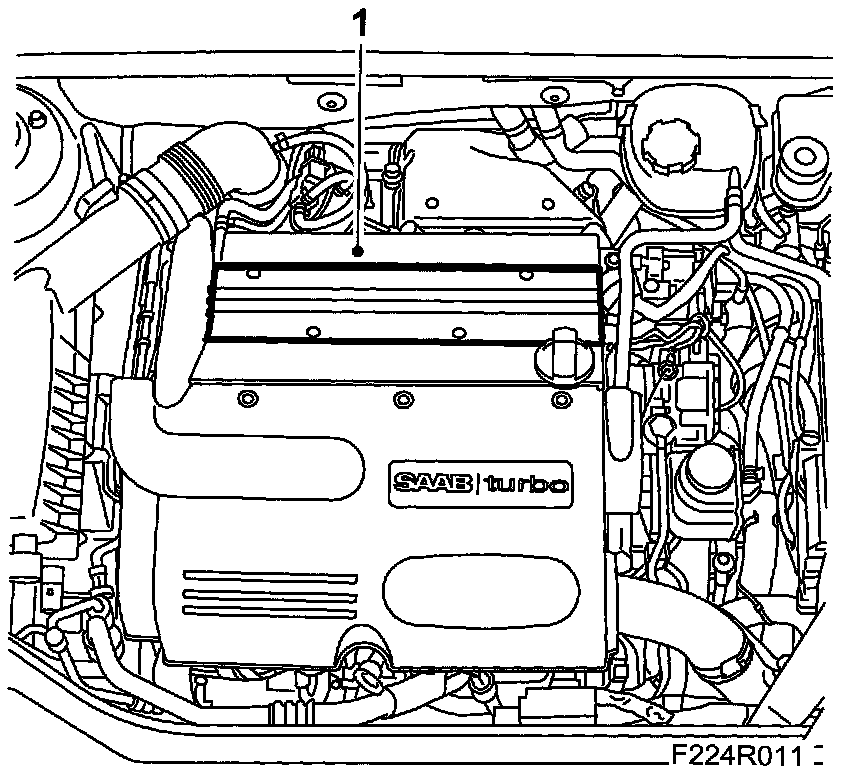

1. Remove the cover over the ignition coils.

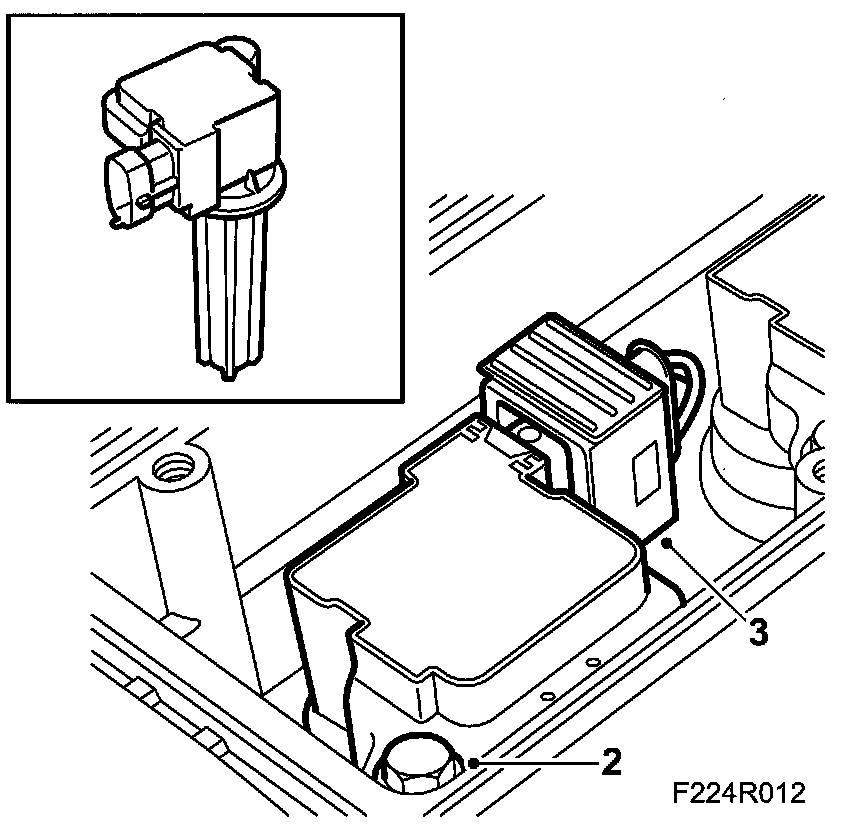

2. Remove the ignition coil.
3. Unplug the ignition coil connector.

To fit






1. Plug in the connector.
2. Fit the ignition coil.
Tightening torque 20 Nm (15 ft lbs).
3. Make sure to locate the ignition coil cables so they are not pinched.

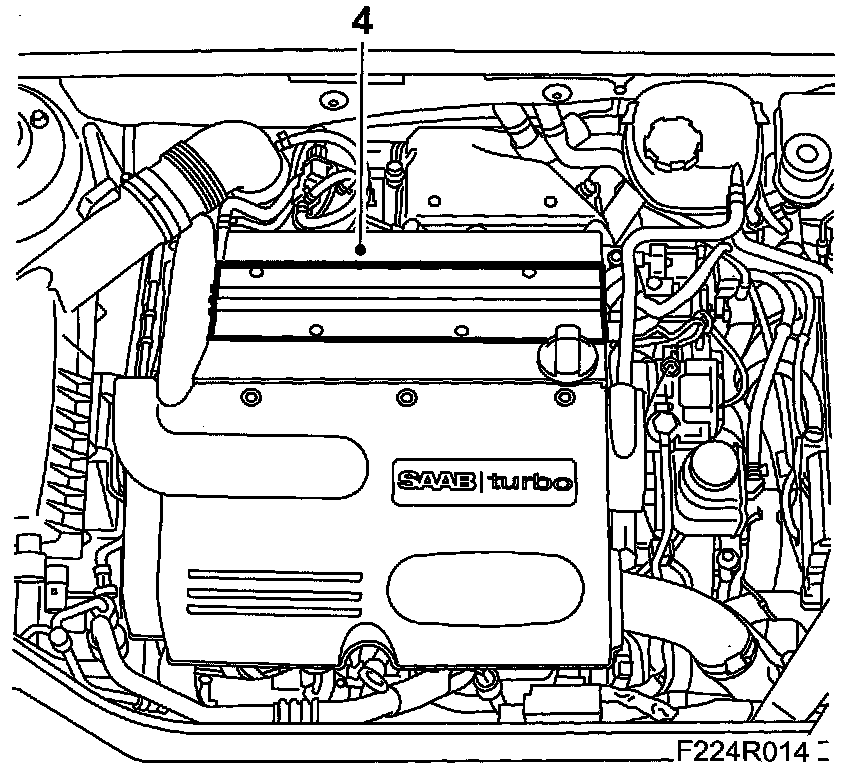

4. Fit the cover over the ignition coils.
Tightening torque 8 Nm (6 ft lbs).
