Oil Return Pipe, Turbocharger

Oil return pipe, turbocharger
To remove
1. Raise the car.
CV: Remove Chassis reinforcement, front subframe, CV.

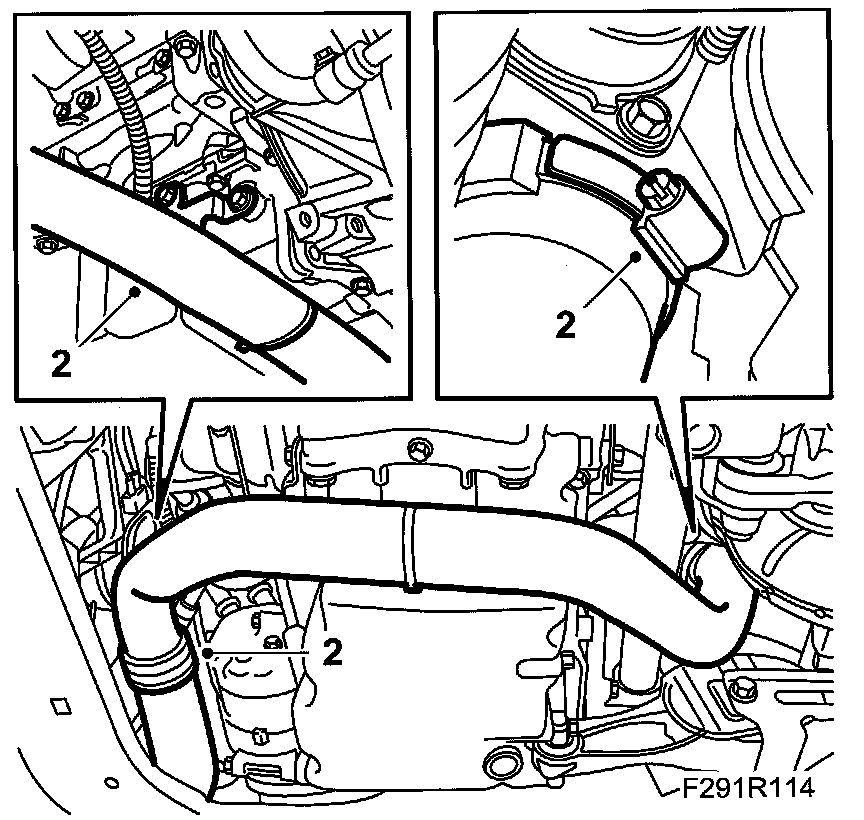

2. Remove the turbocharger delivery pipe.

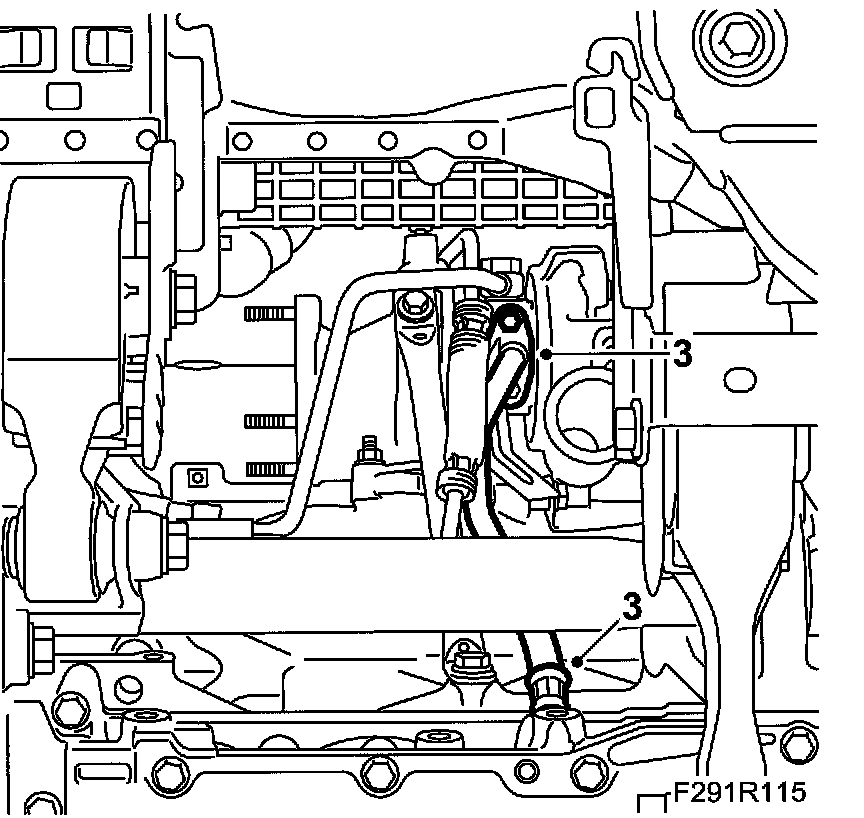

3. Remove the screws to the turbo oil return pipe from the turbo.

Important: If the flexible part of the return oil pipe is bent, the resulting restriction may become permanent and cause damage to the turbo charger.





4. Remove pipe and its O-ring from the connection hole in the engine block.

To fit

Important: To reduce the risk of hoses mounted on the delivery side of the turbocharger coming loose due to low friction at high air pressures, the hoses and connecting pieces must be cleaned thoroughly before fitting. Use a rag dampened with 30 15 815 Cleaning agent to wipe clean inside the ends of the hoses. Clean also the connecting pieces. If hose clips are rusty or damaged, they must be replaced with new ones to maintain the correct clamping force.

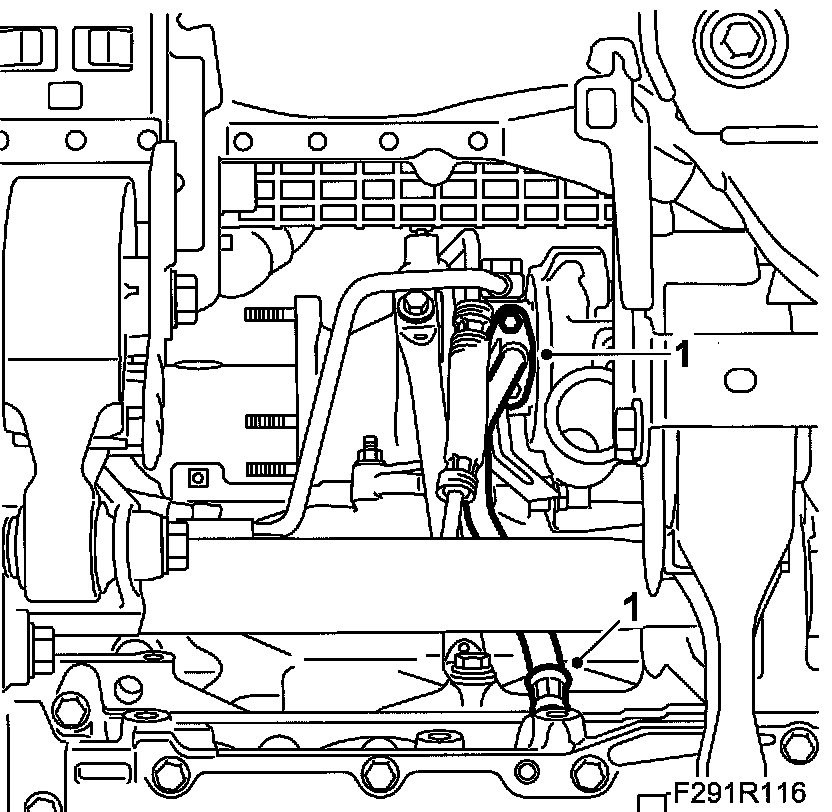

1. Fit the turbo oil return pipe to the turbo using a new gasket, and connect the pipe with a new O-ring, lightly greased with 30 06 665 Vaseline, to the connecting hole in the engine block.
Tightening torque 15 Nm (11 ft. lbs.).





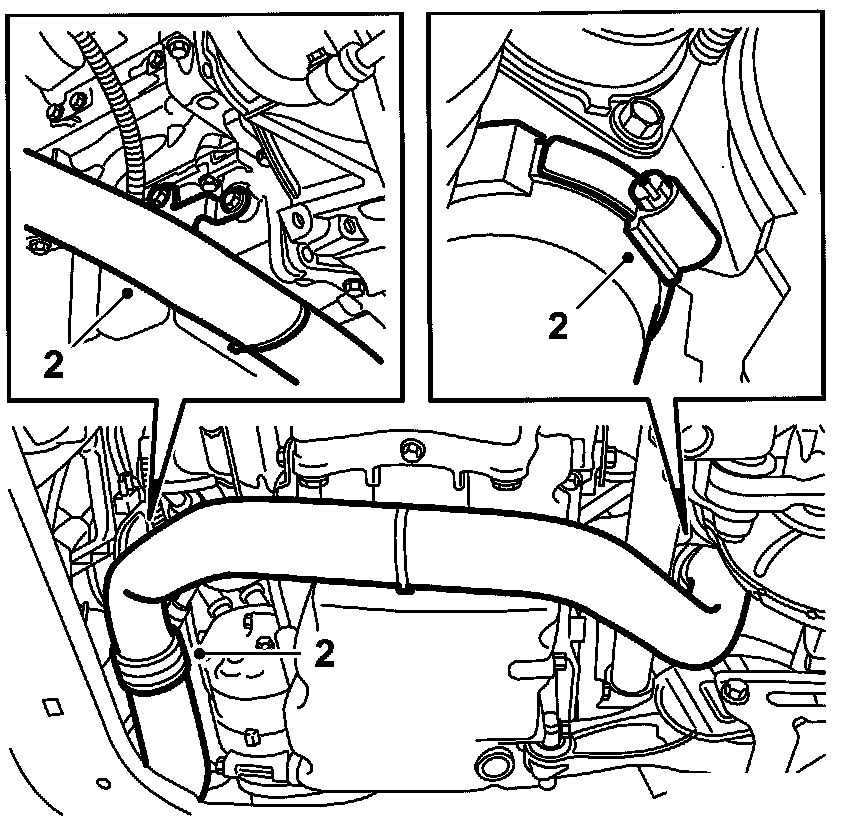

2. Fit the turbocharger delivery pipe.
CV: Fit Chassis reinforcement, front subframe, CV.





3. Lower the car.
