Fuel Filler Hose: Service and Repair

Fuel Filler Pipe

WARNING:
Removing the fuel line involves work on the car's fuel system. The following points must therefore be observed when taking any action:
- Ensure good ventilation. If there is approved ventilation for extraction of fuel fumes then this must be used.
- Wear protective gloves. Prolonged exposure of the hands to fuel can cause irritation of the skin.
- Have a fire extinguisher class BE at hand. Be aware of the risk for sparks, e.g. in connection with circuit breaking, short-circuiting, etc
- Absolutely No Smoking.
- Wear protective glasses.

IMPORTANT: Be particulary observant regarding cleanliness when working on the fuel system. Loss of function may occur due to very small particles. Prevent dirt and grime from entering the fuel system by cleaning the connections and plugging pipes and lines during disassembly. Use 82 92 948 Plugs, A/C system assembly. Keep components free from contaminants during storage.

To remove
1. Drain the fuel tank if necessary.
2. Remove the rear wheel.
3. Remove the Wing liner, rear.

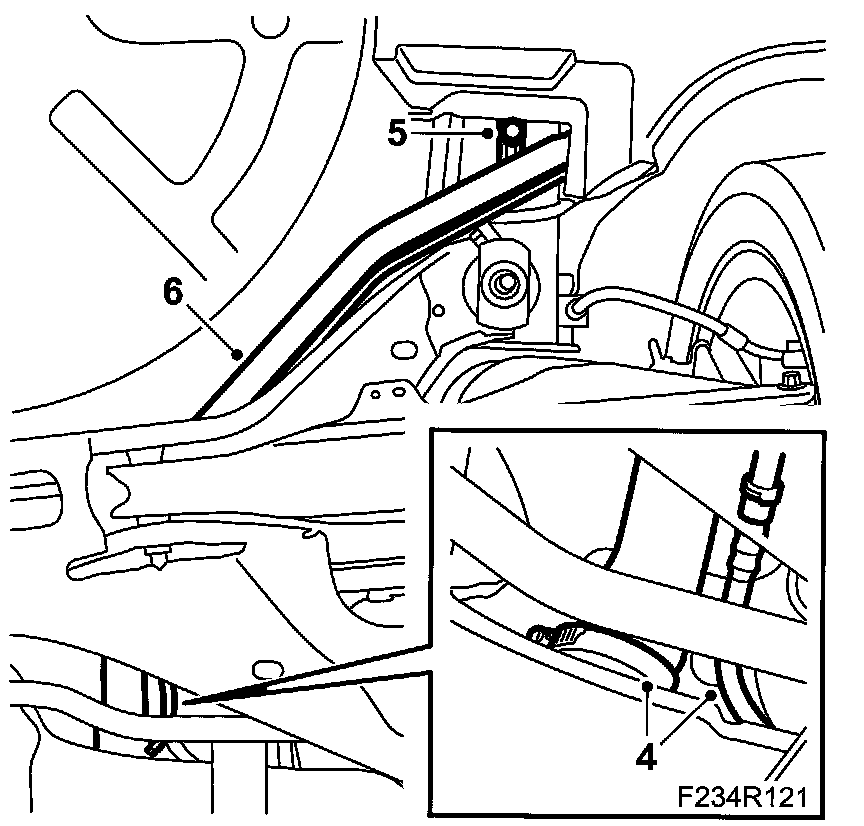

4. Uncouple the quick coupling for bleeding. Detach the filler pipe clamp.







5. Remove the filler pipe screw.
6. Remove the filler pipe.

To fit
1. Remove the plug.

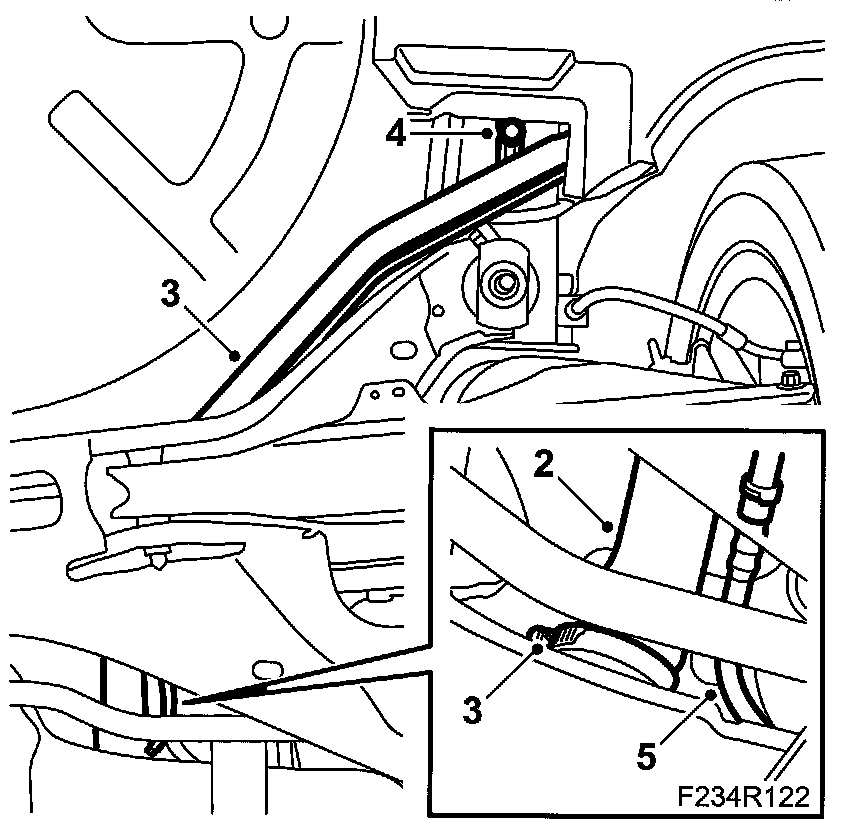

2. Fit a new hose to the filler pipe.
3. Fit the filler pipe. Tighten the clamp's screw.







4. Fit the filler pipe screw.







5. Fit the quick coupling for bleeding.
6. Fit the Wing liner, rear
7. Fit the Wheel.
