Leak Detection Solenoid: Service and Repair

Fuel Tank Shut-off Valve (ORVR)

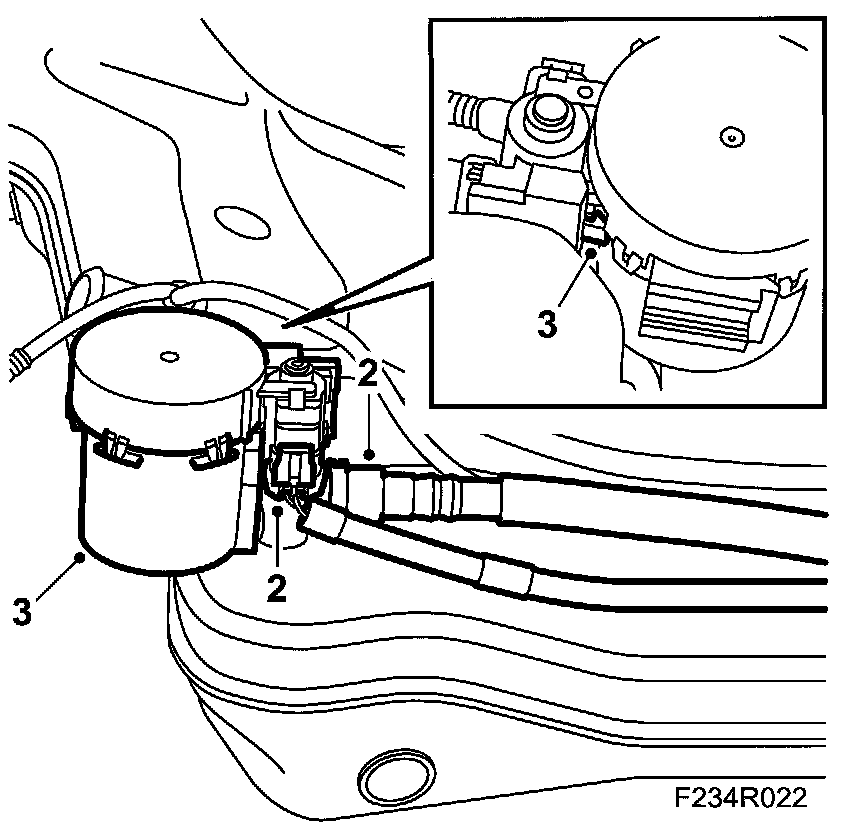

To remove
1. Remove the fuel tank.
2. Unplug the connector and disconnect the quick-release coupling from the shutoff valve.







3. Undo the catch and remove the shut-off valve.

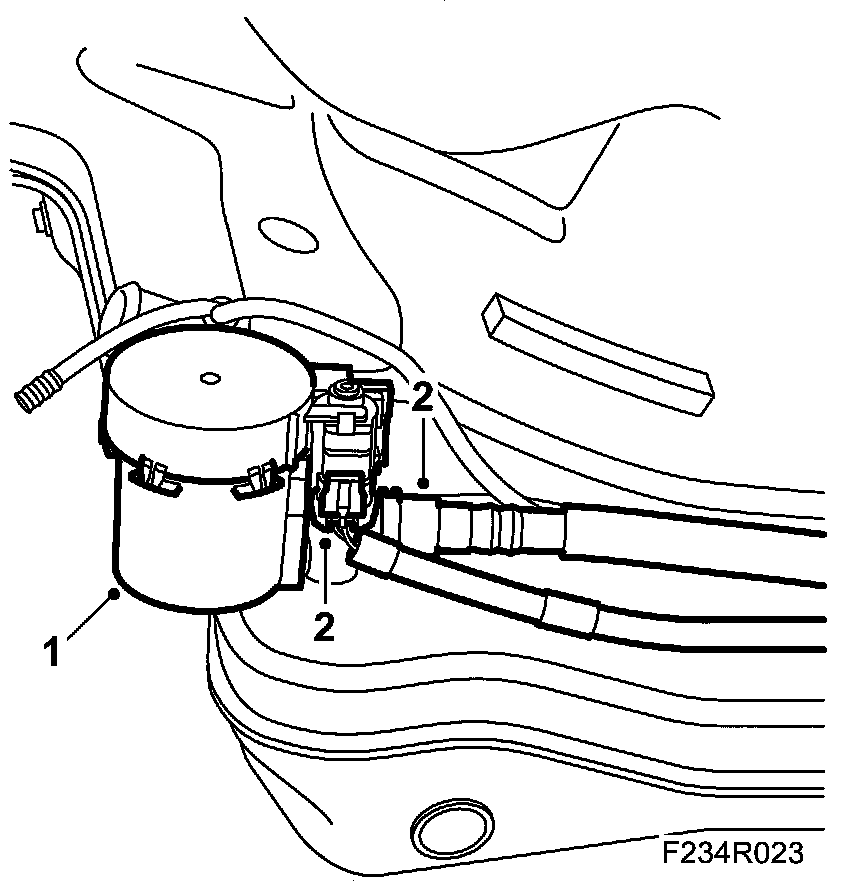

To fit
1. Fit the shut-off valve.







2. Plug in the connector and connect the quick-release coupling to the shut-off valve.
3. Fit the fuel tank.
