Leak Detection Solenoid: Description and Operation

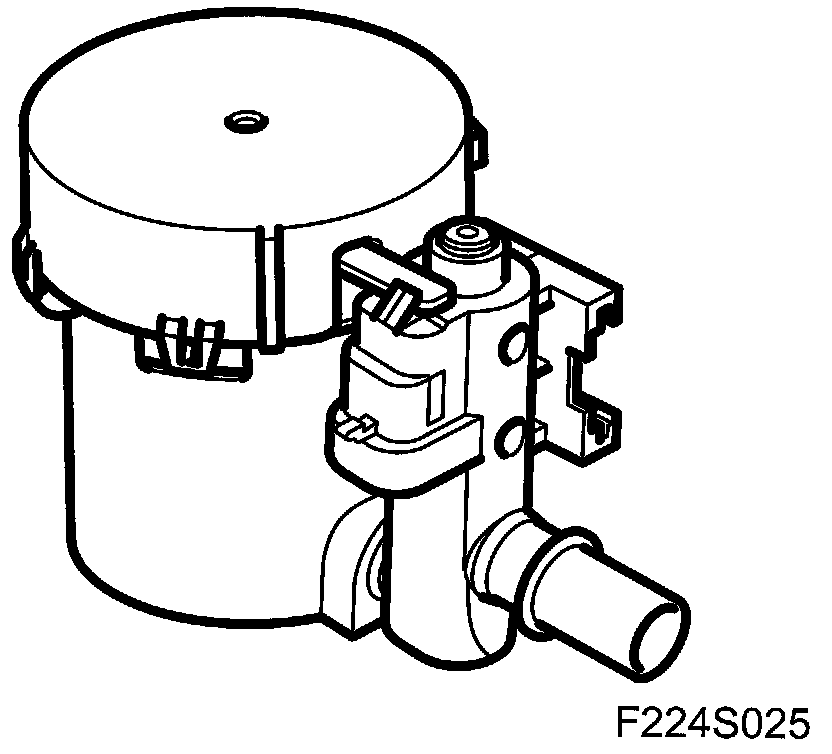

EVAP Shut-off Solenoid Valve (588)

Main task
The shut-off valve is used for onboard diagnostics to detect leakage in the purge system.

Type

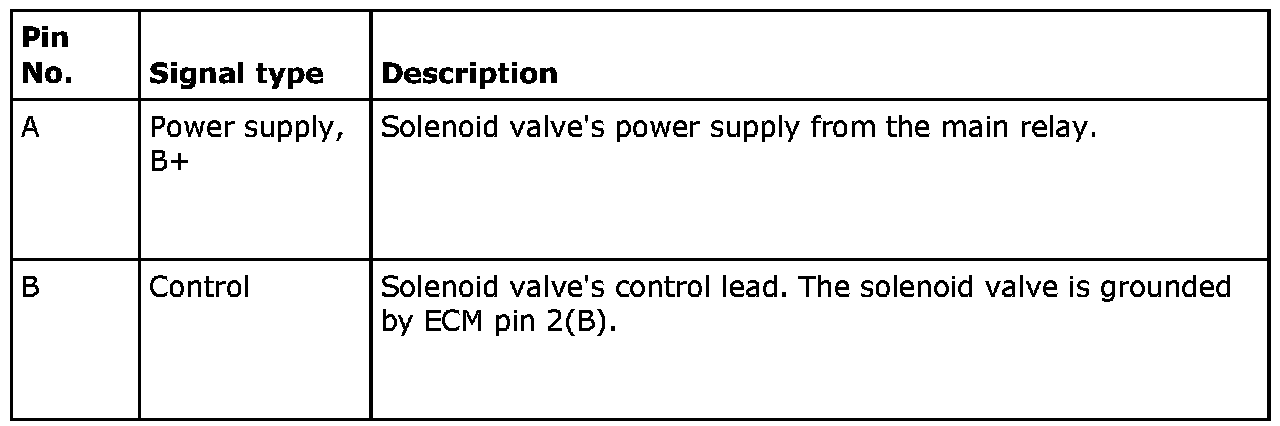

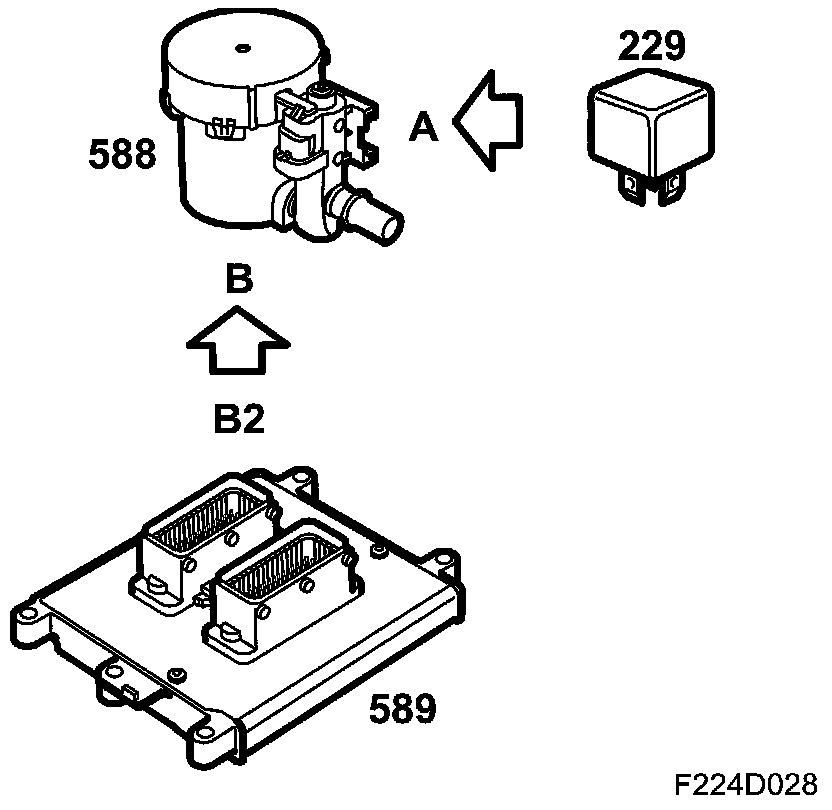

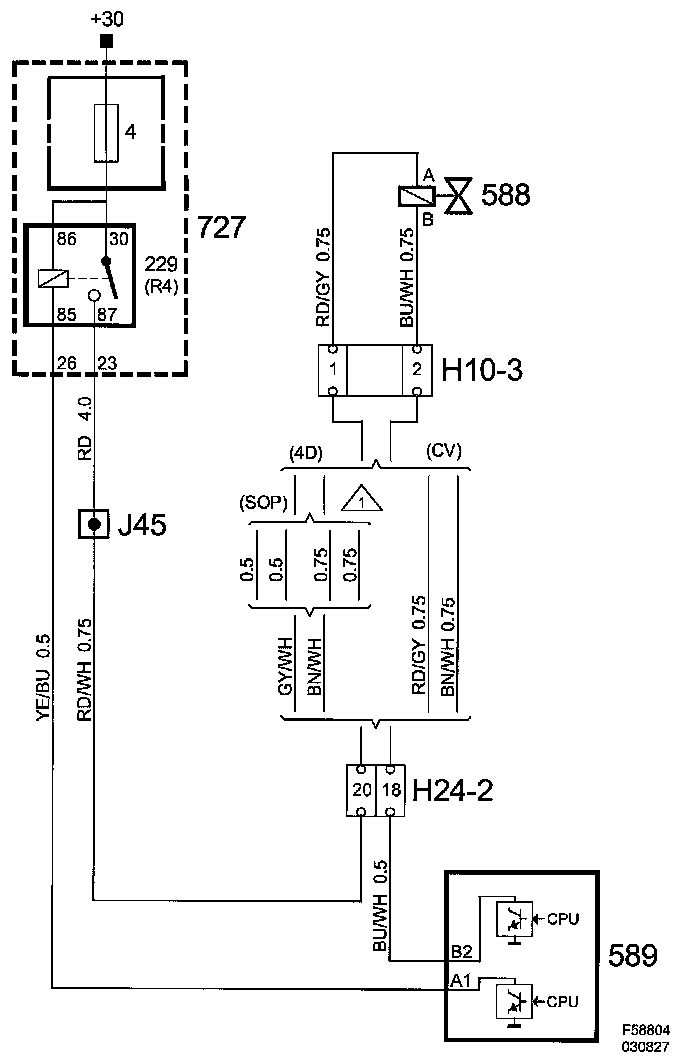

Connection

Pin No. A-B:

The shut-off valve is open when there is no power.
