Rear Heated Oxygen Sensor (593), T8

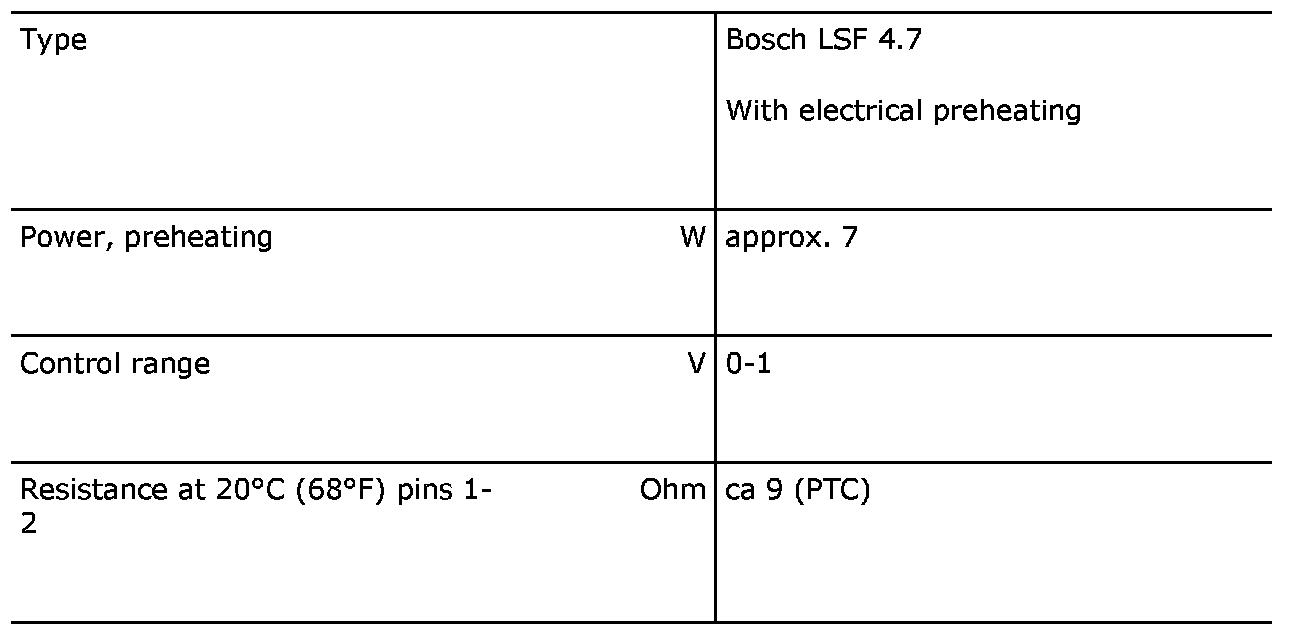

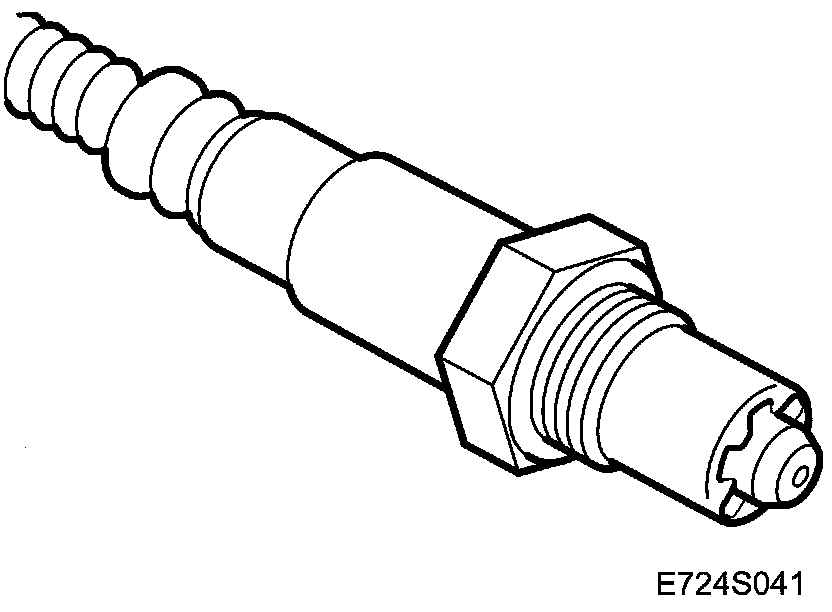

Heated Oxygen-sensor, Rear (593)













Pins 3 and 4 are gold plated.

NOTE: The connector must not be treated with any sort of contact cleaner.
