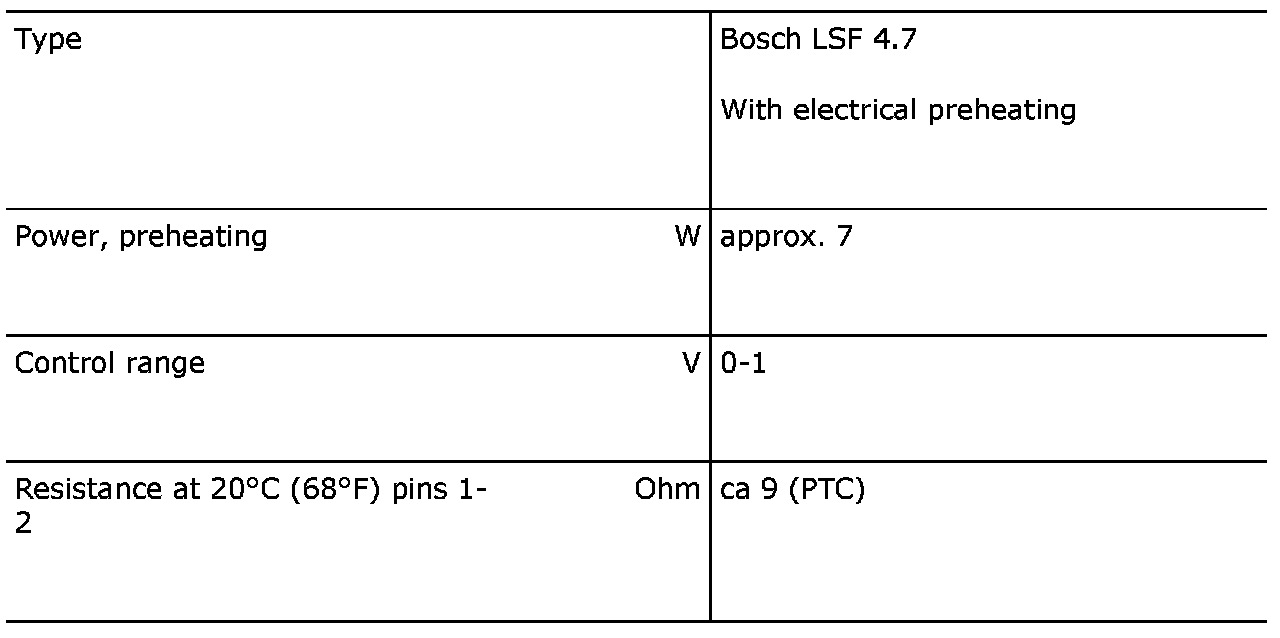

Front Heated Oxygen Sensor (592), T8

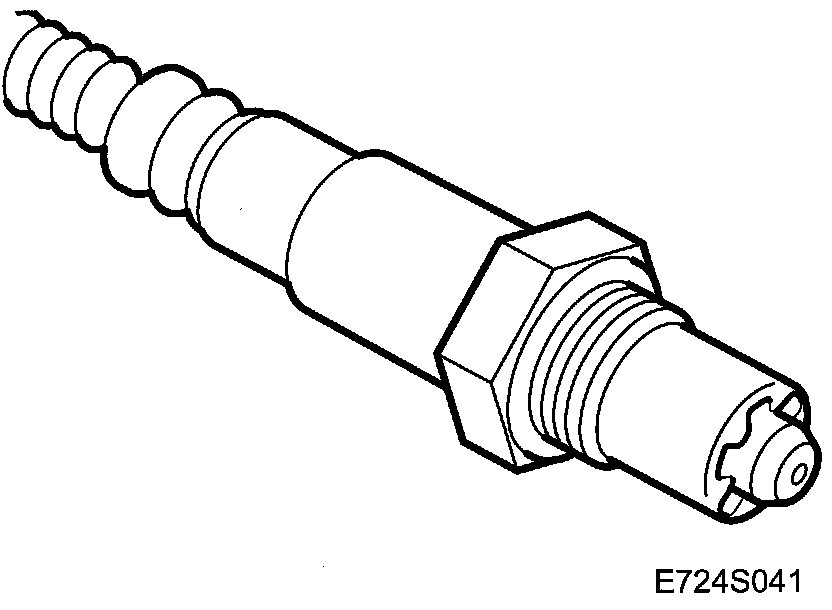

Pre-heated Oxygen-sensor, Front (592)













Pins 3 and 4 are gold plated.

NOTE: The connector must not be treated with any sort of contact cleaner.
