Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Component Locations >> Related Components >> Control Module, Window Lift, Rear, RH (575RR) >> Convertible

Convertible

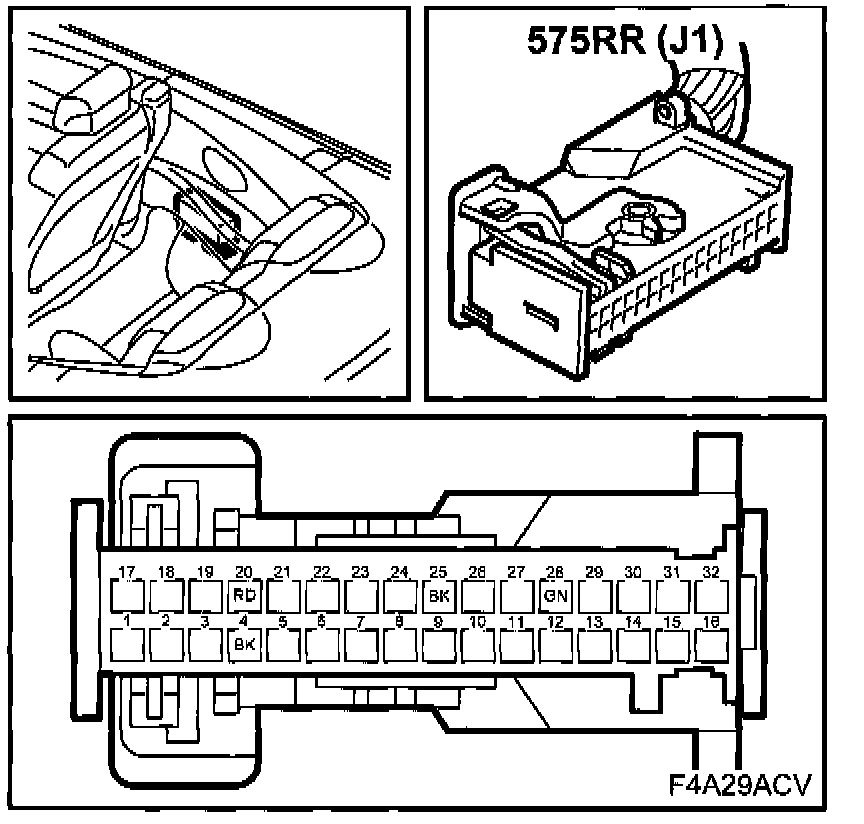

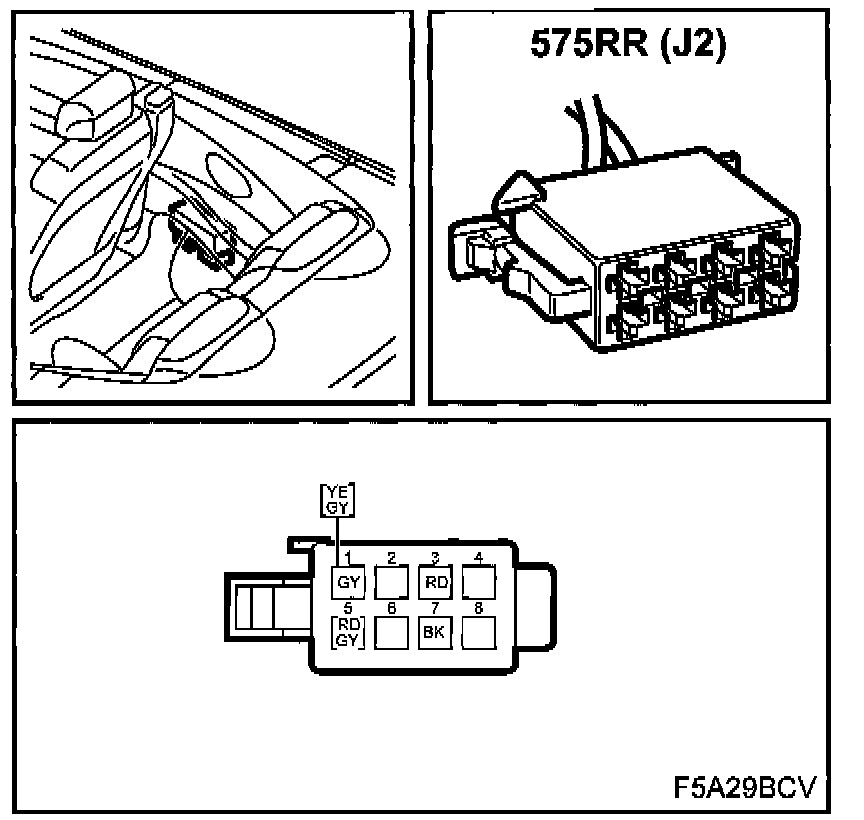

Control Module, Window Lift, Rear, RH (575RR)

Location: Inside the rear seat RH side trim.






J1






J2
