Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Component Locations >> Related Components >> Control Module, Window Lift, Rear, LH (575RL) >> Convertible

Convertible



Control Module, Window Lift, Rear, LH (575RL)

Location: Inside the LH rear seat side trim.

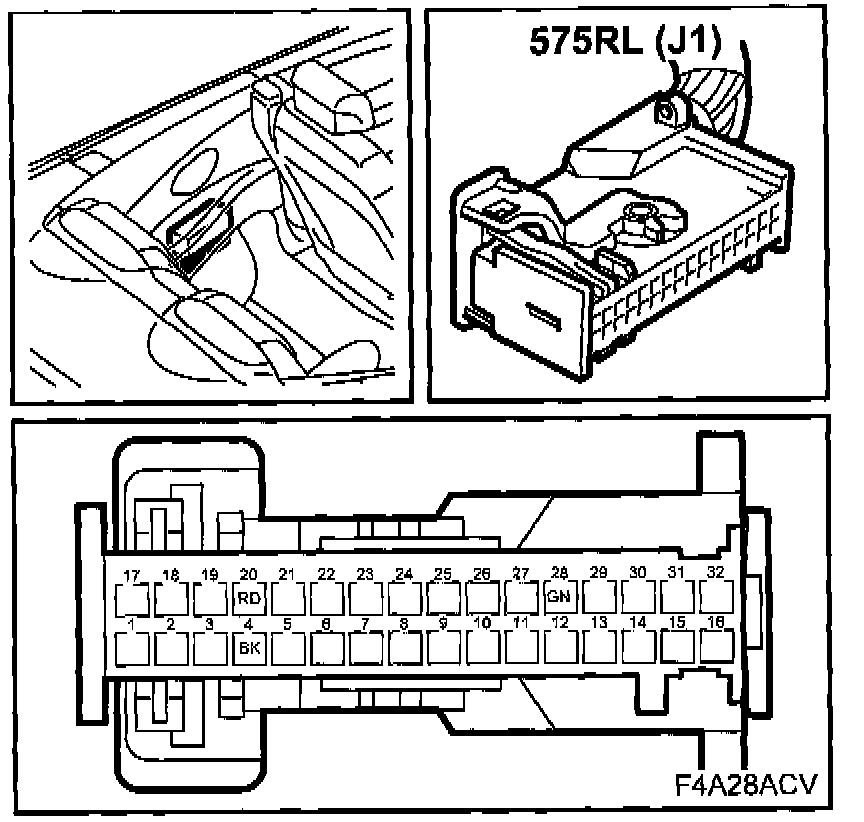

J1

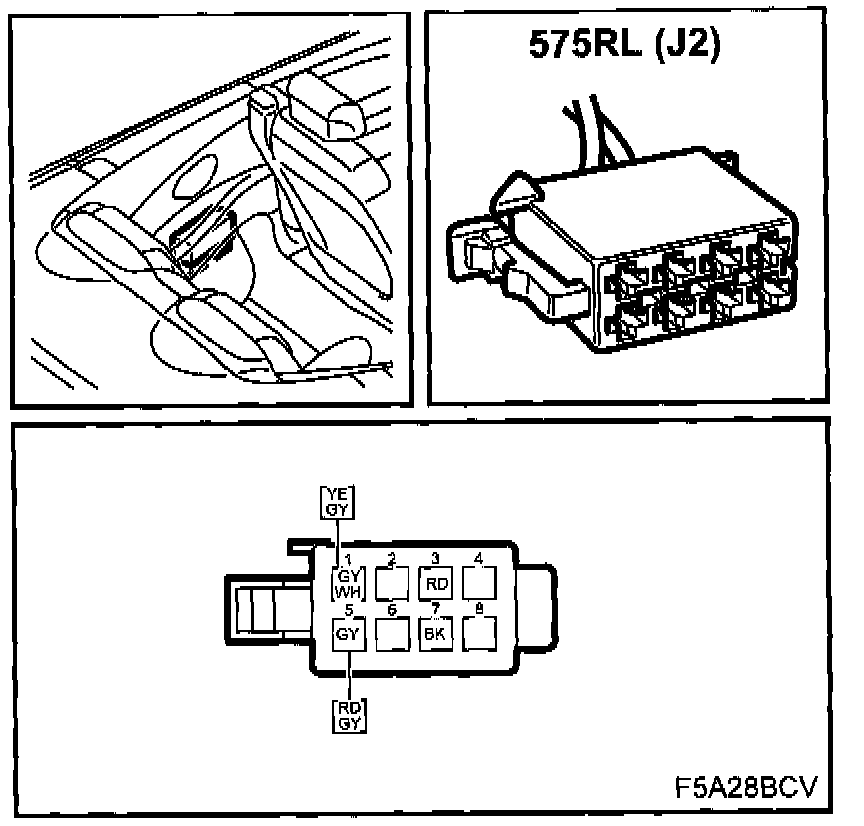

J2
