Sedan

Main Components

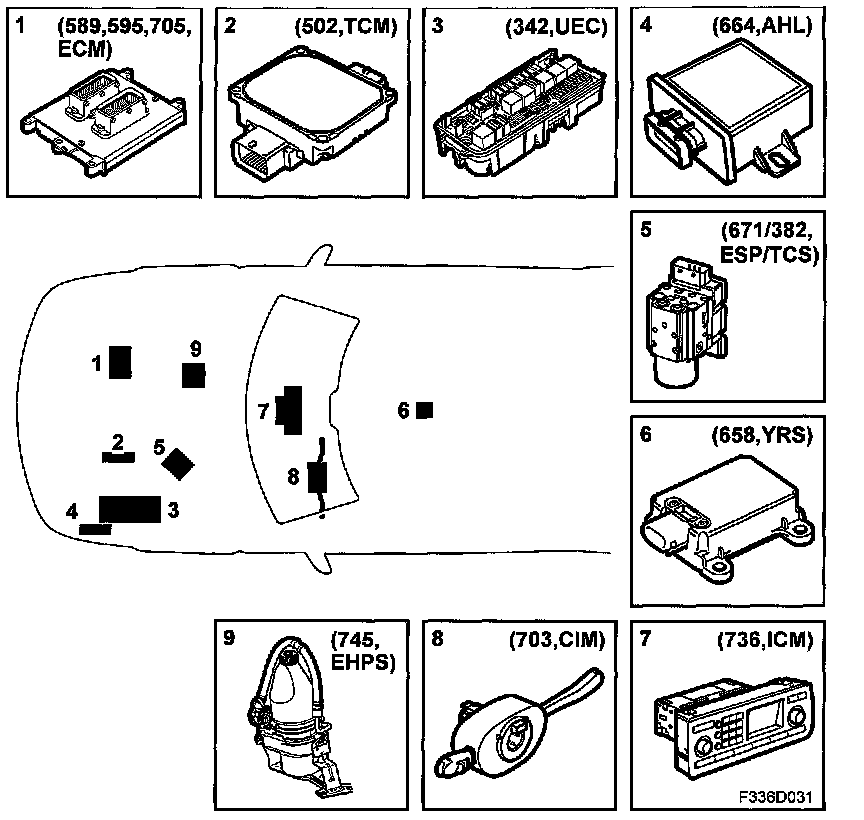

P-bus
1. Engine control module, ECM (589/595/705)
2. Control module, TCM (502)
3. Underhood Electrical Centre, UEC (342)
4. Control module, AHL (664)
5. Control module, ESP/TCS (671/382)
6. Angle Sensor, yaw, YRS (658)
7. Control panel, infotainment, ICM (736)
8. Column Integration Module, CIM (703a)
9. Unit, power steering system, EHPS (745)

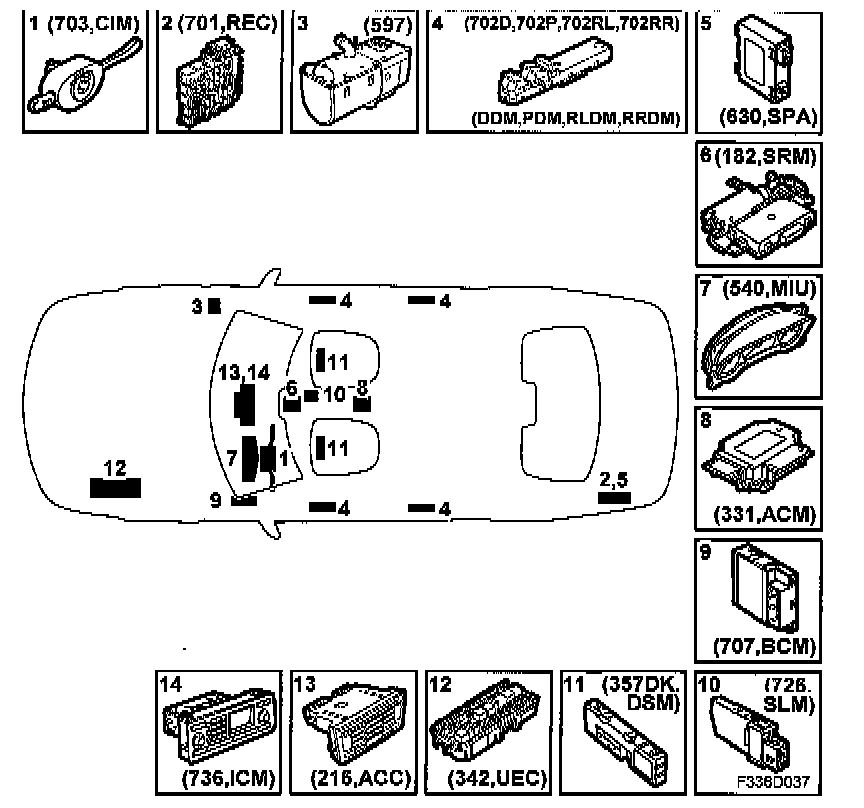

I-bus, 4D
1. Column Integration Module, CIM (703a)
2. Rear Electrical Centre, REC (701)
3. Control module, parking/auxiliary heater, PHM/AHM (597a)
4. Door control modules, DDM/PDM/RLDM/RRDM (702)
5. Control module, SPA (630)
6. Sun Roof Module, SRM (182b)
7. Main Instrument Unit, MIU (540)
8. Airbag Control Module, ACM (331)
9. Body Control Module, BCM (707)
10. Shift Lever Module, SLM (726)
11. Driver Seat Module, DSM (357Dk)
12. Underhood Electrical Centre, UEC (342)
13. Control module, ACC (216)
14. Control panel, infotainment, ICM (736)






O-bus, 4D
1. Control panel, infotainment, ICM (736)
2. Entertainment Head Unit, EHU (353)
3. CD player/changer, front, CDF/CDCF (355F)
4. CD Changer Rear, CDCR (355R)
5. Audio System Amplifier, front speakers, AMP1 (354F)
6. Audio System Amplifier, rear speakers, AMP2 (354R)
7. Communication unit, Positioning unit, CU/PU (468/635)
8. Unit, DVD (729)
