P-Bus (Powertrain Bus)

Engine Management, Bus Information

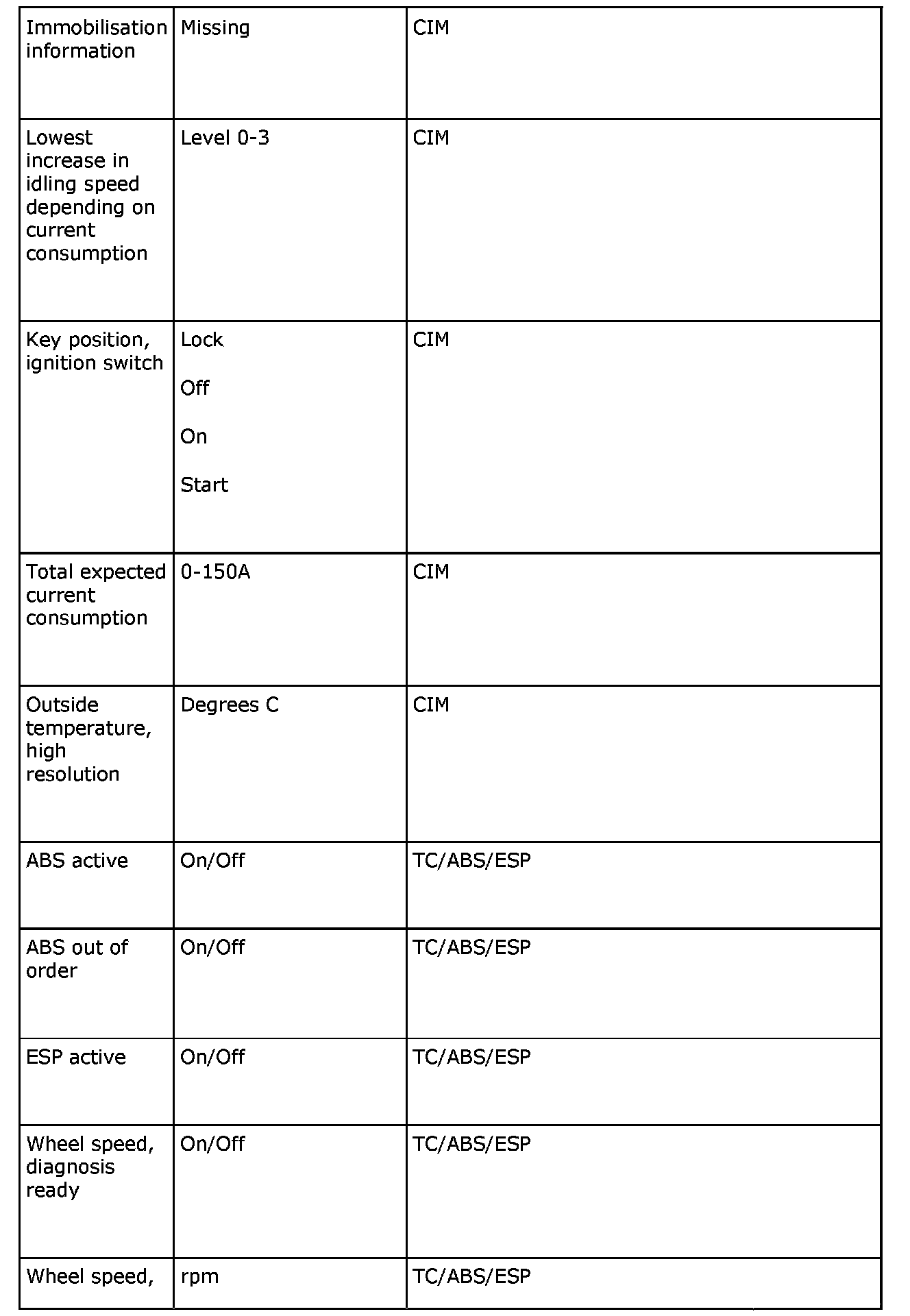

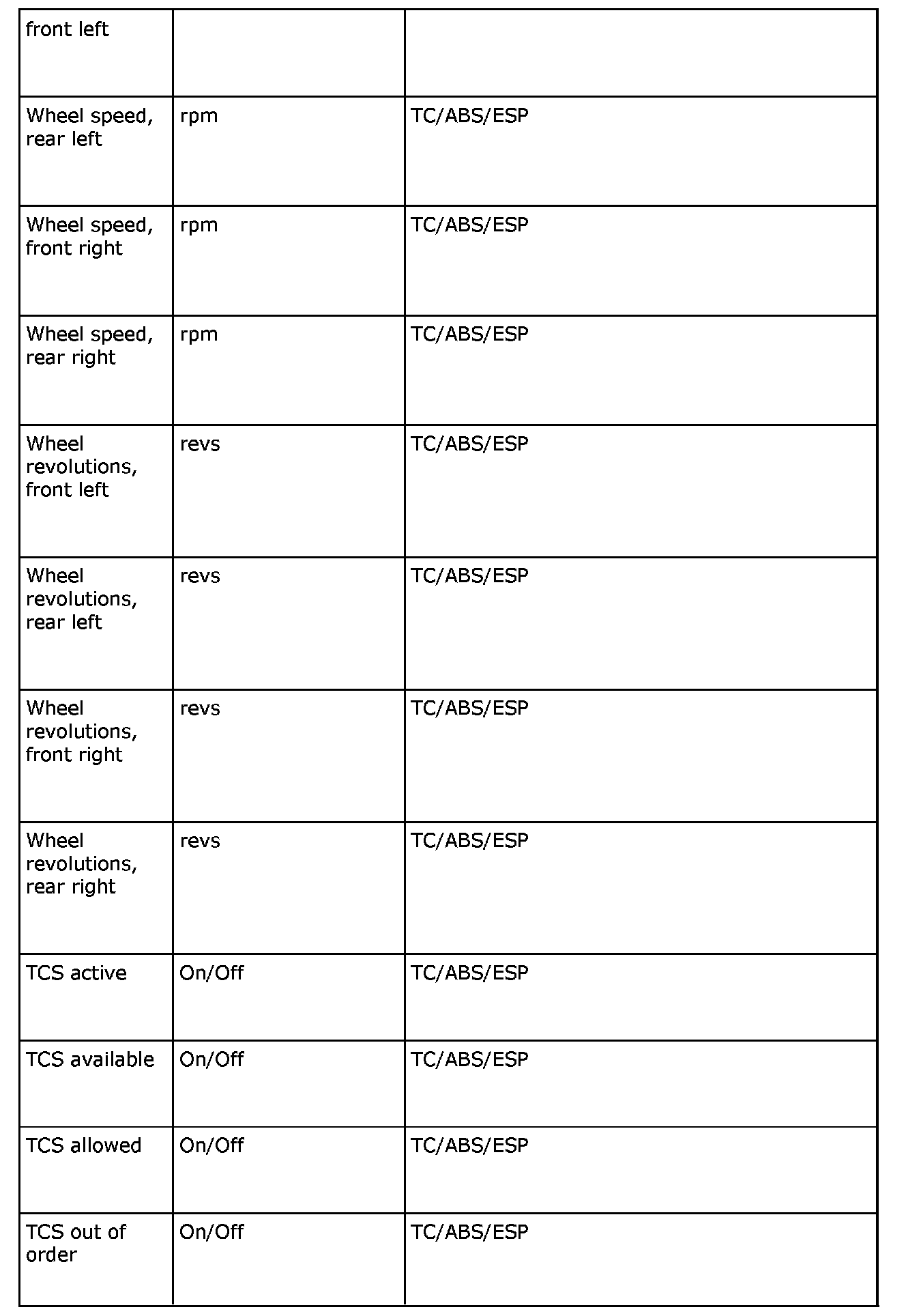

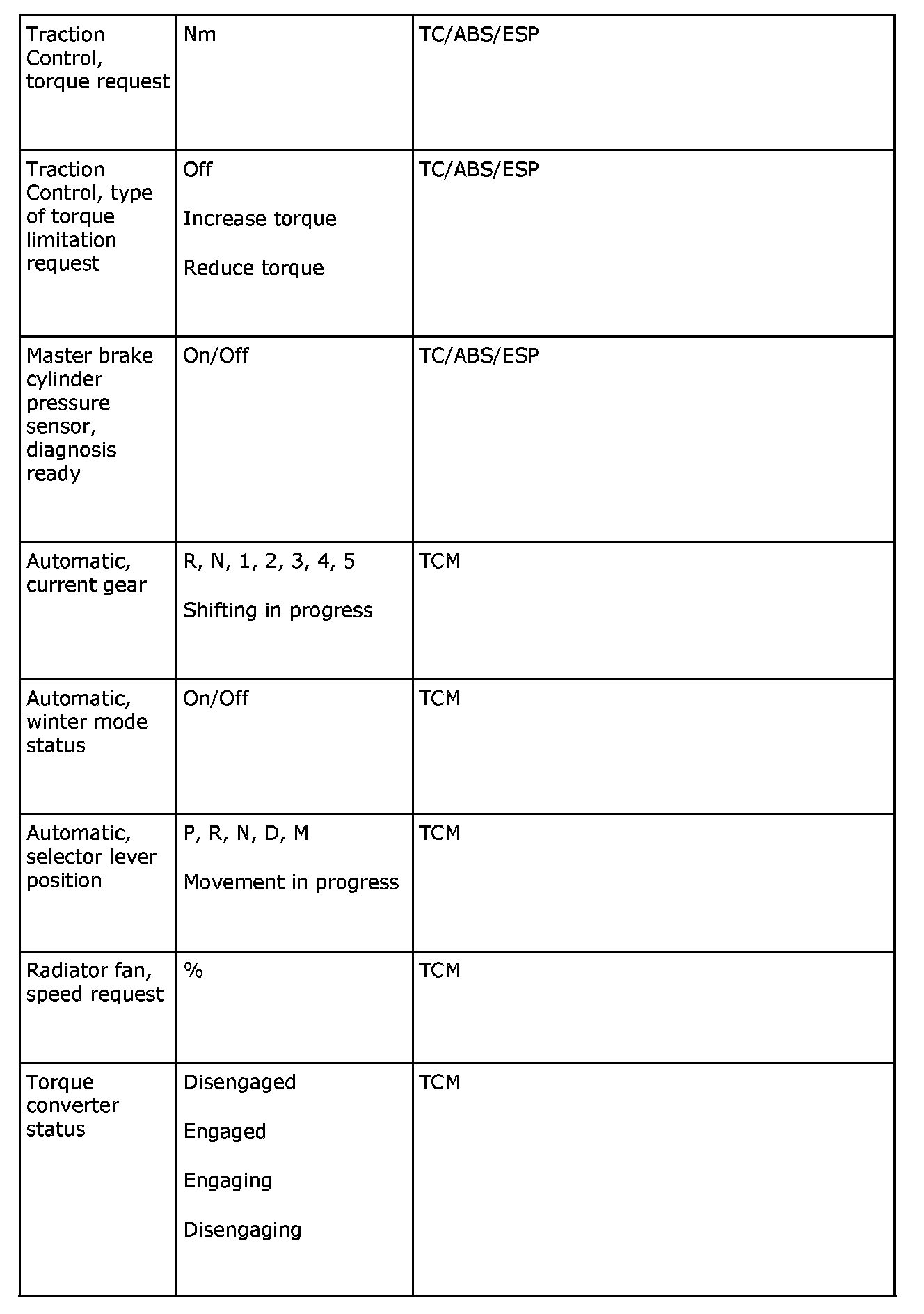

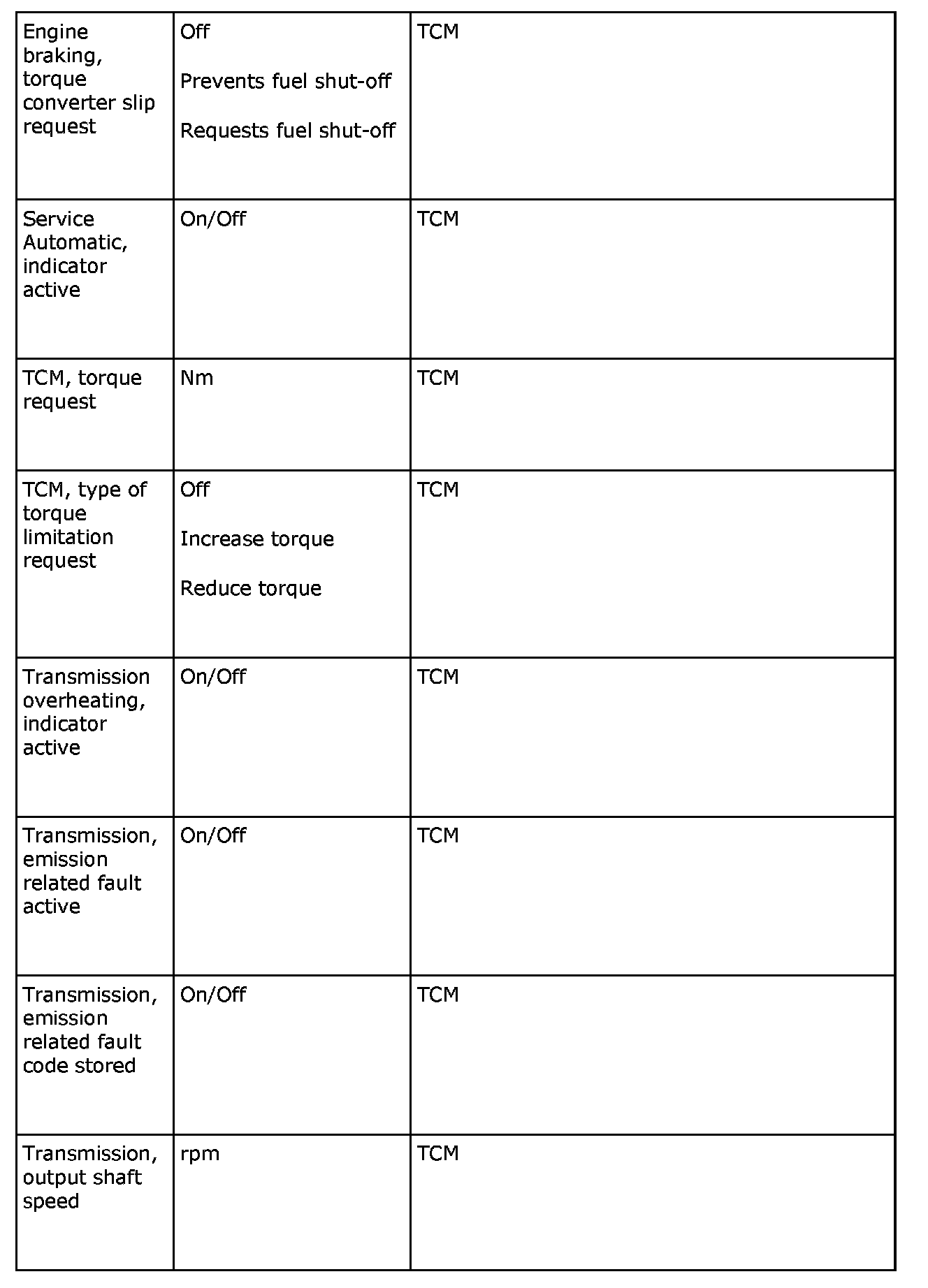

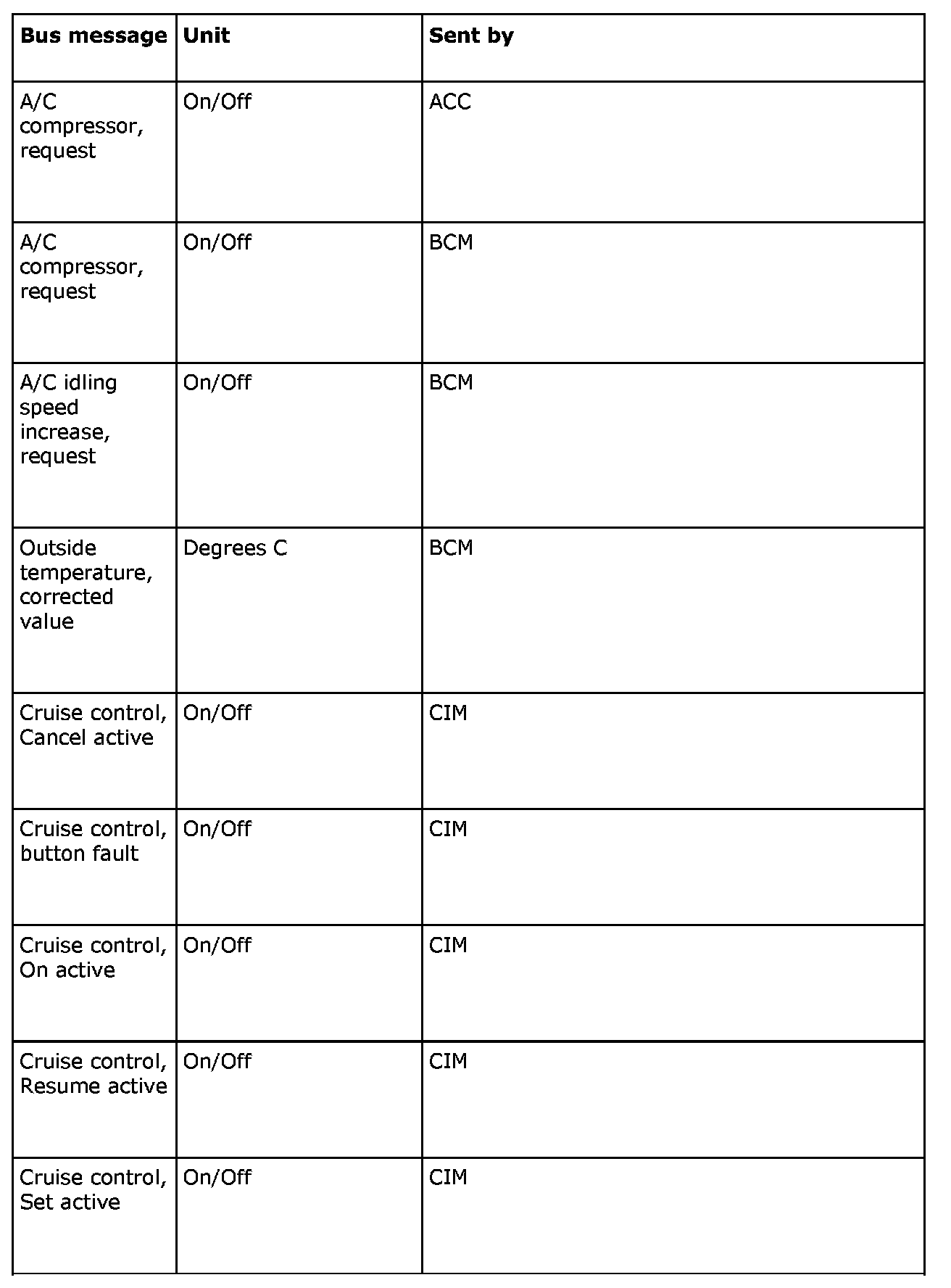

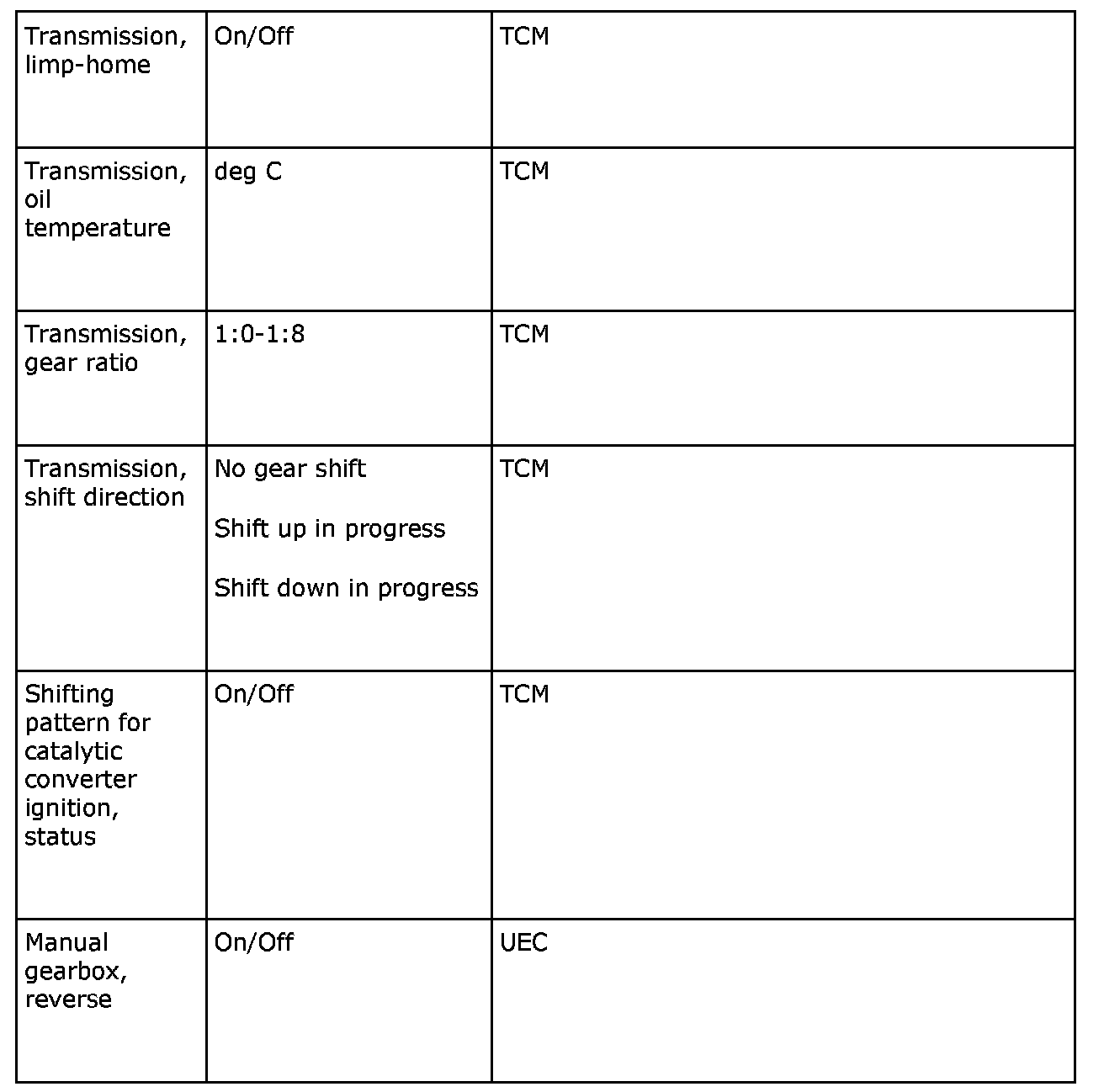

The engine management system uses the following information:

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

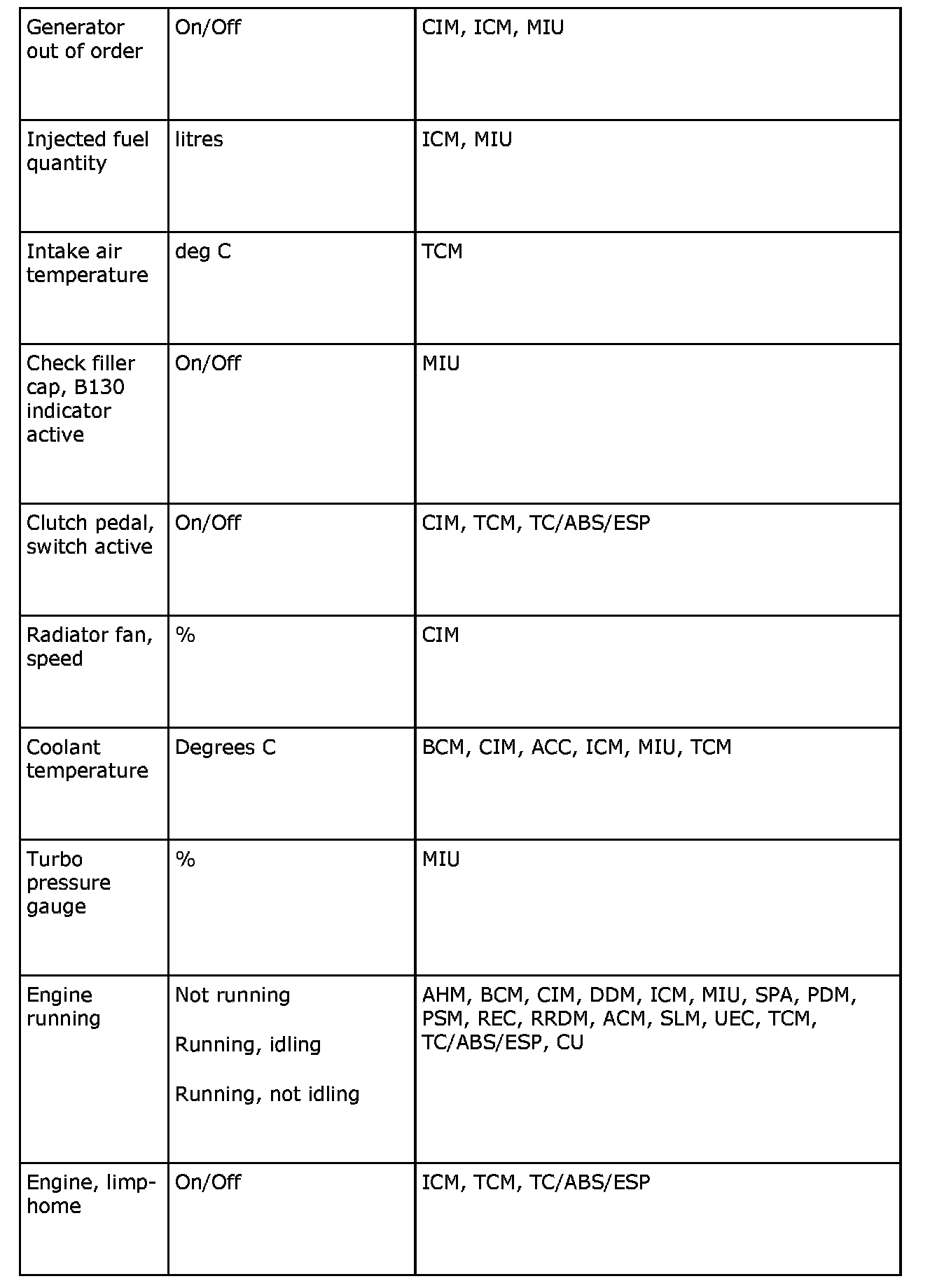

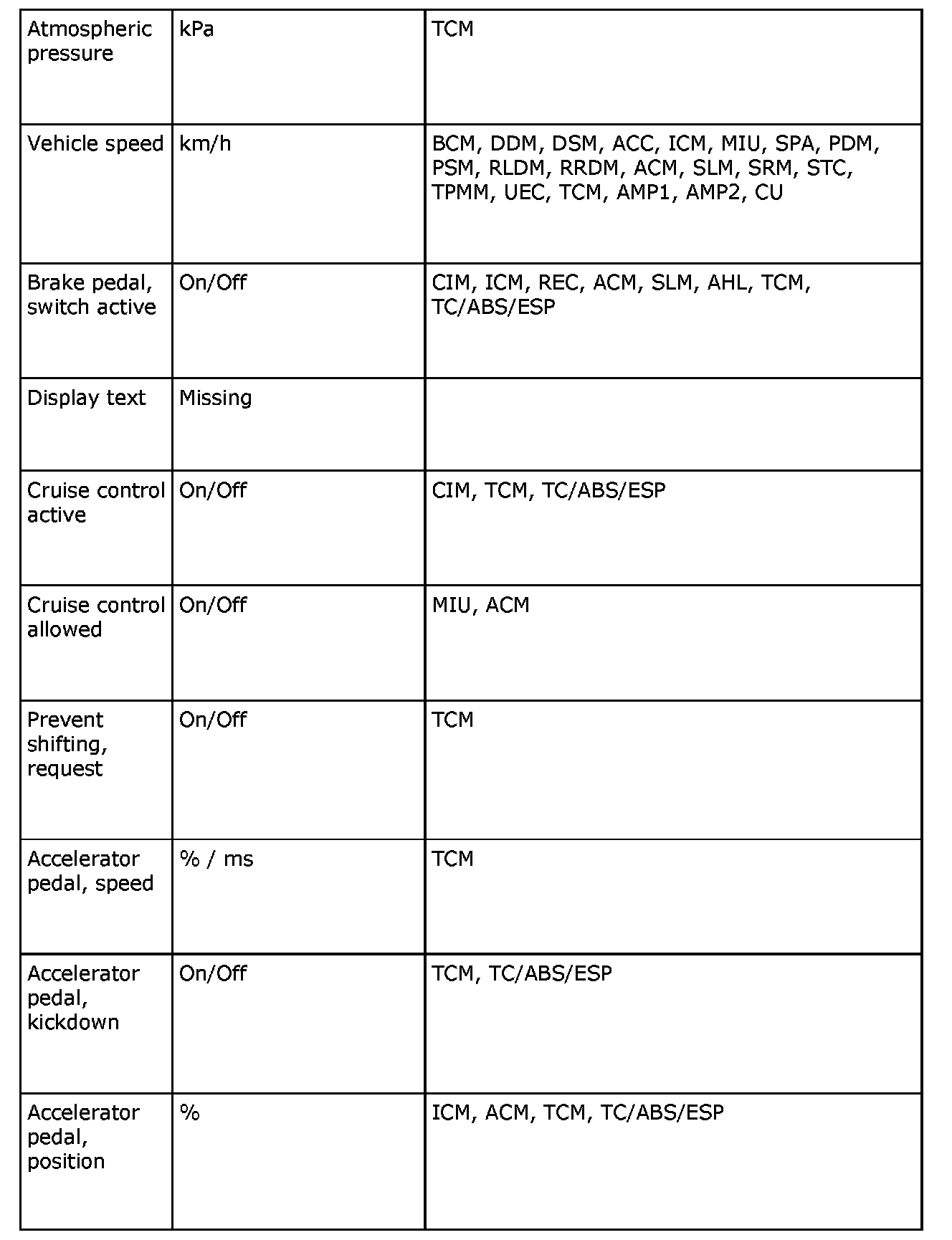

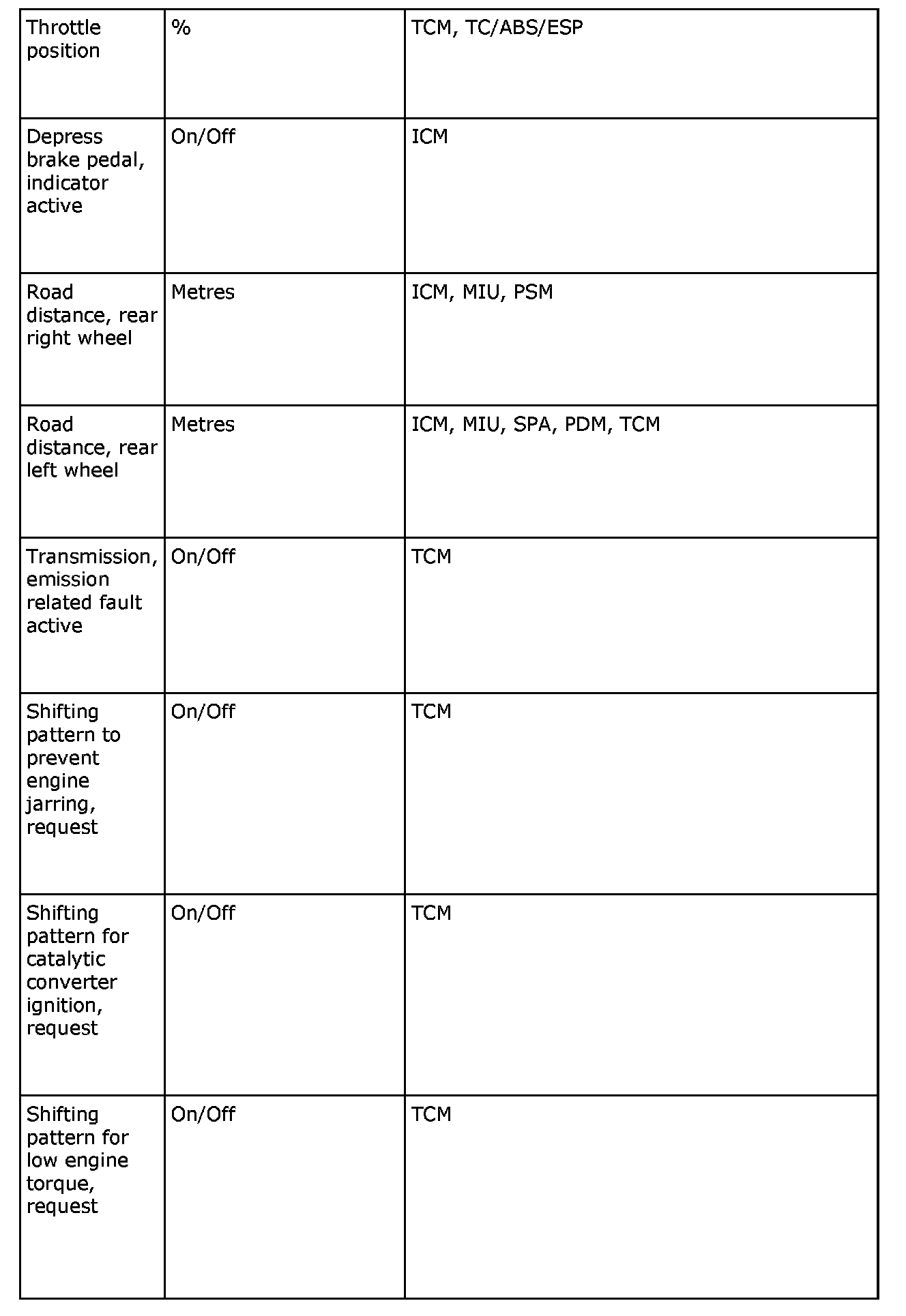

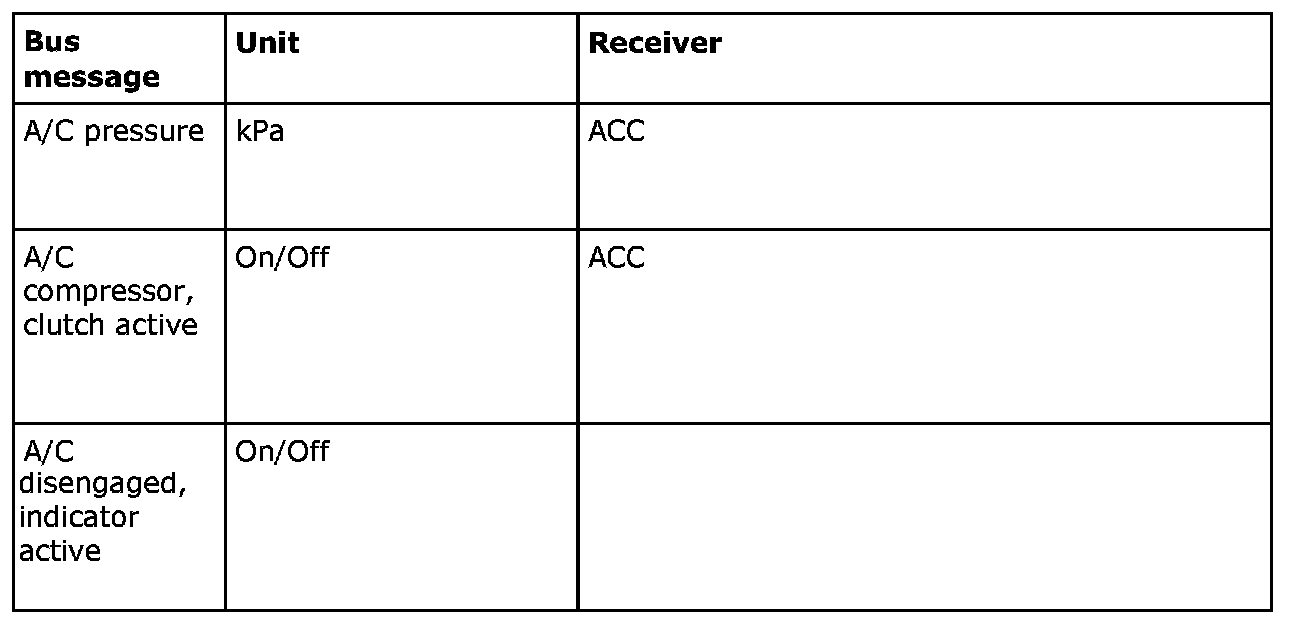

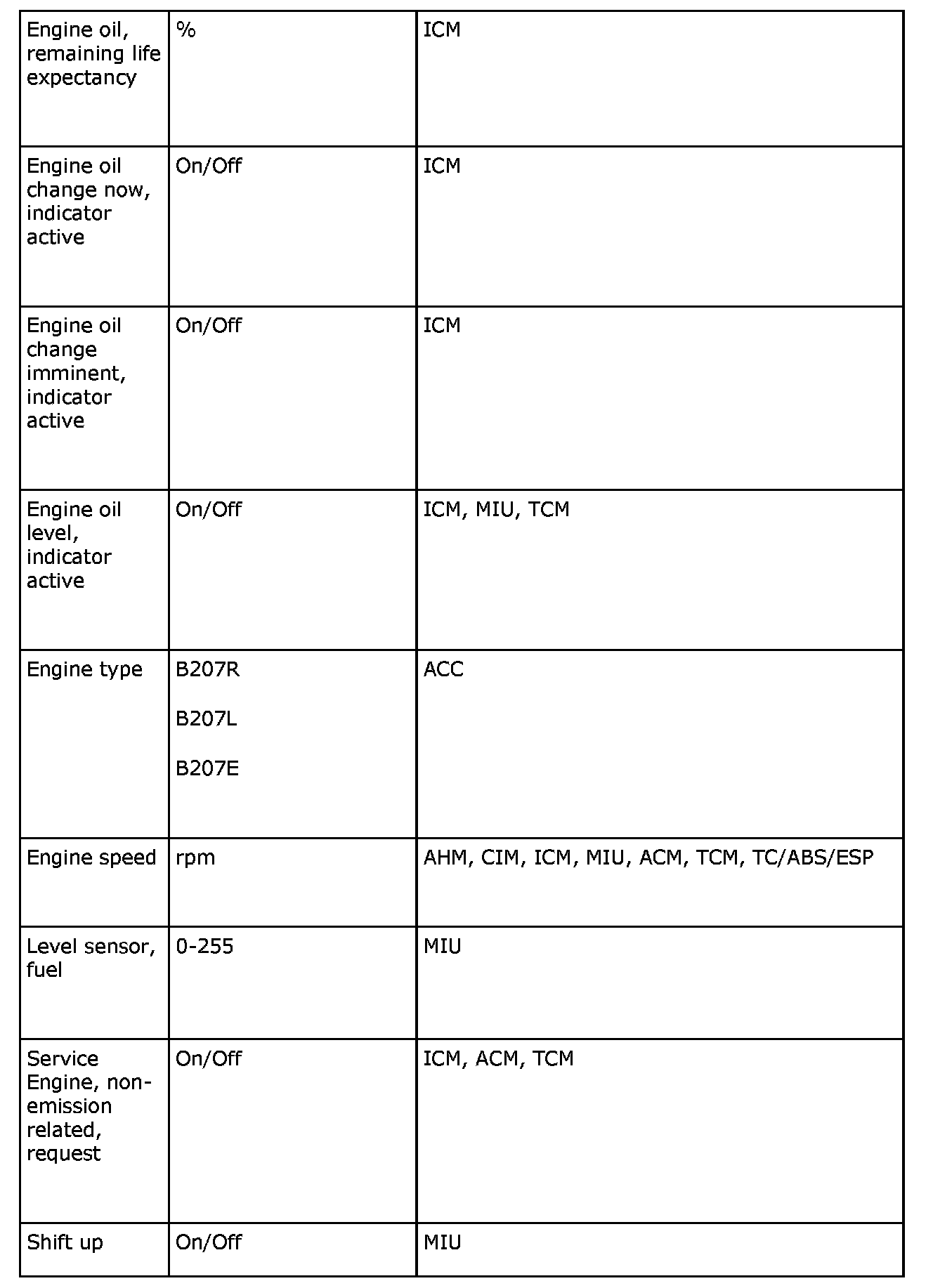

The engine management system sends the following information:

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:
