Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Description and Operation >> Detailed Description >> I-Bus (Instrument Bus) >> SID Display and Buttons, Bus Information

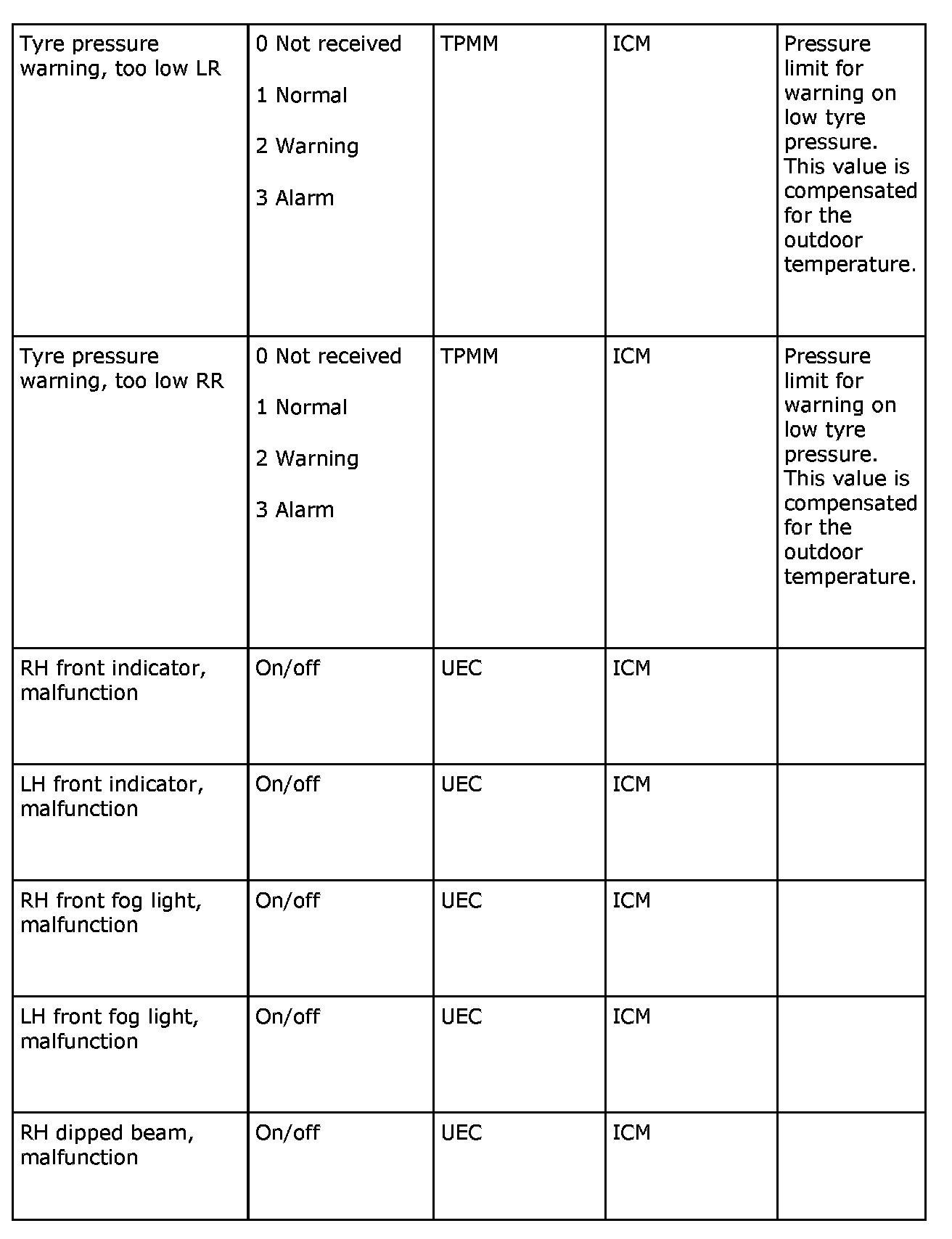

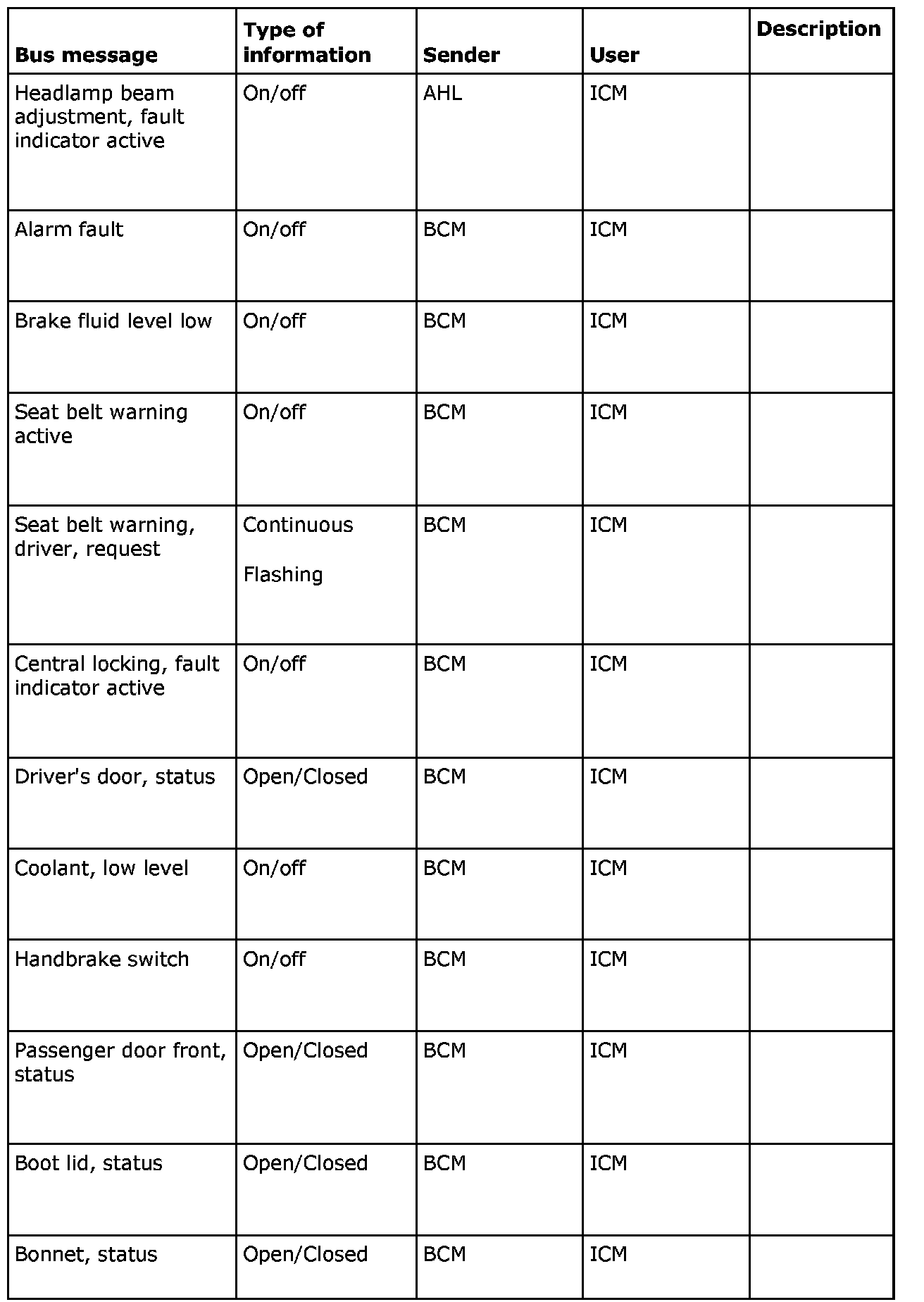

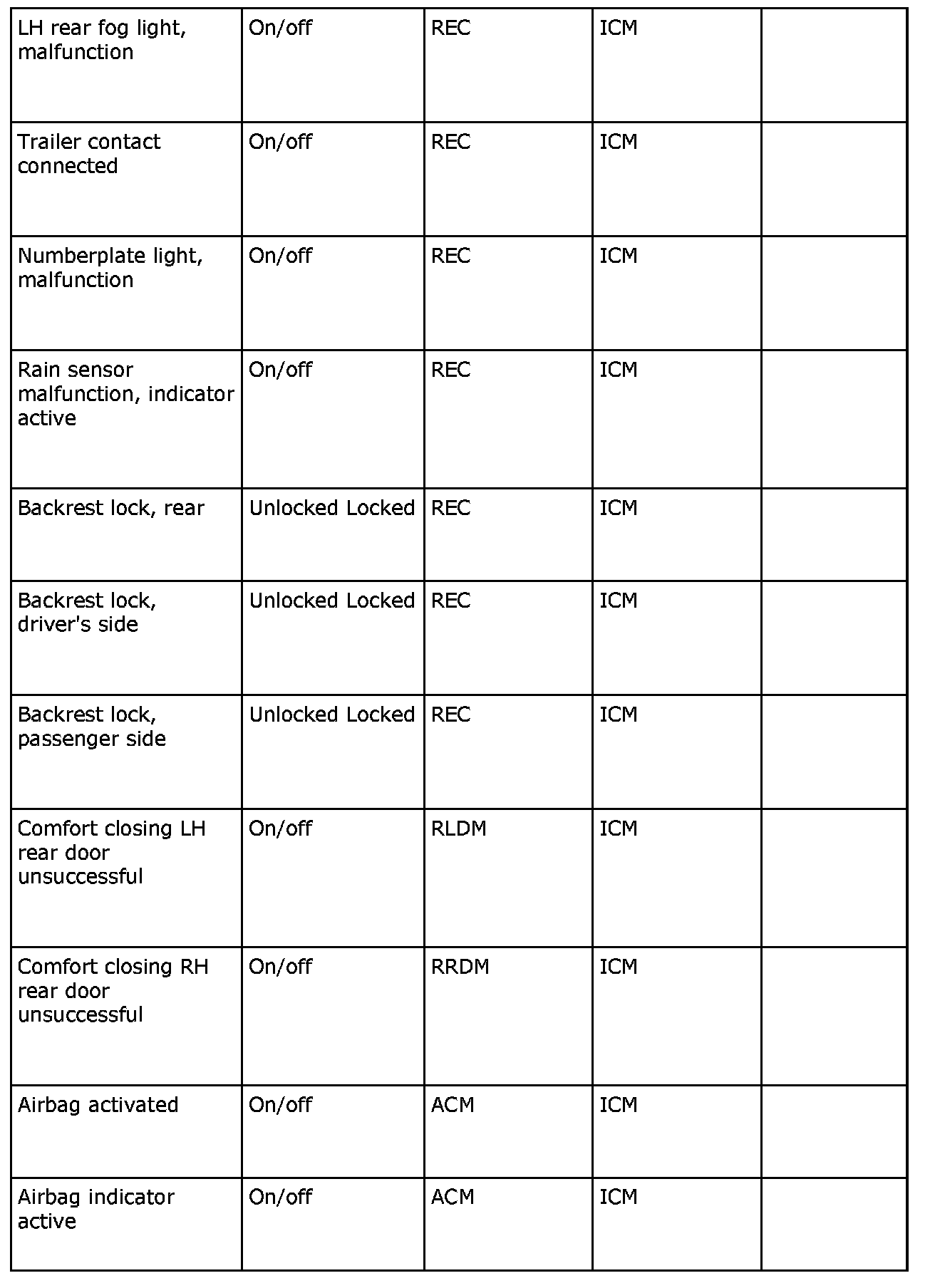

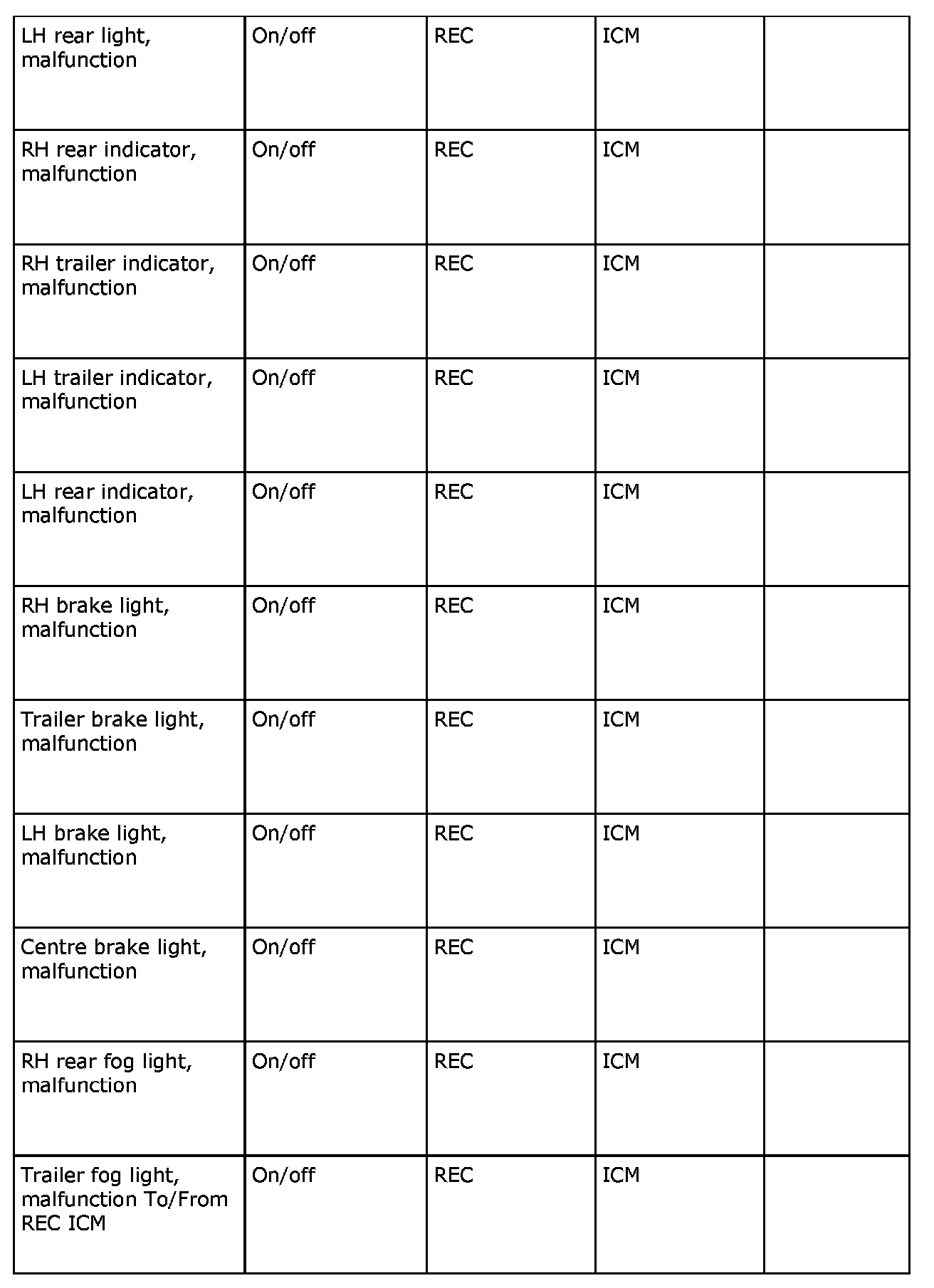

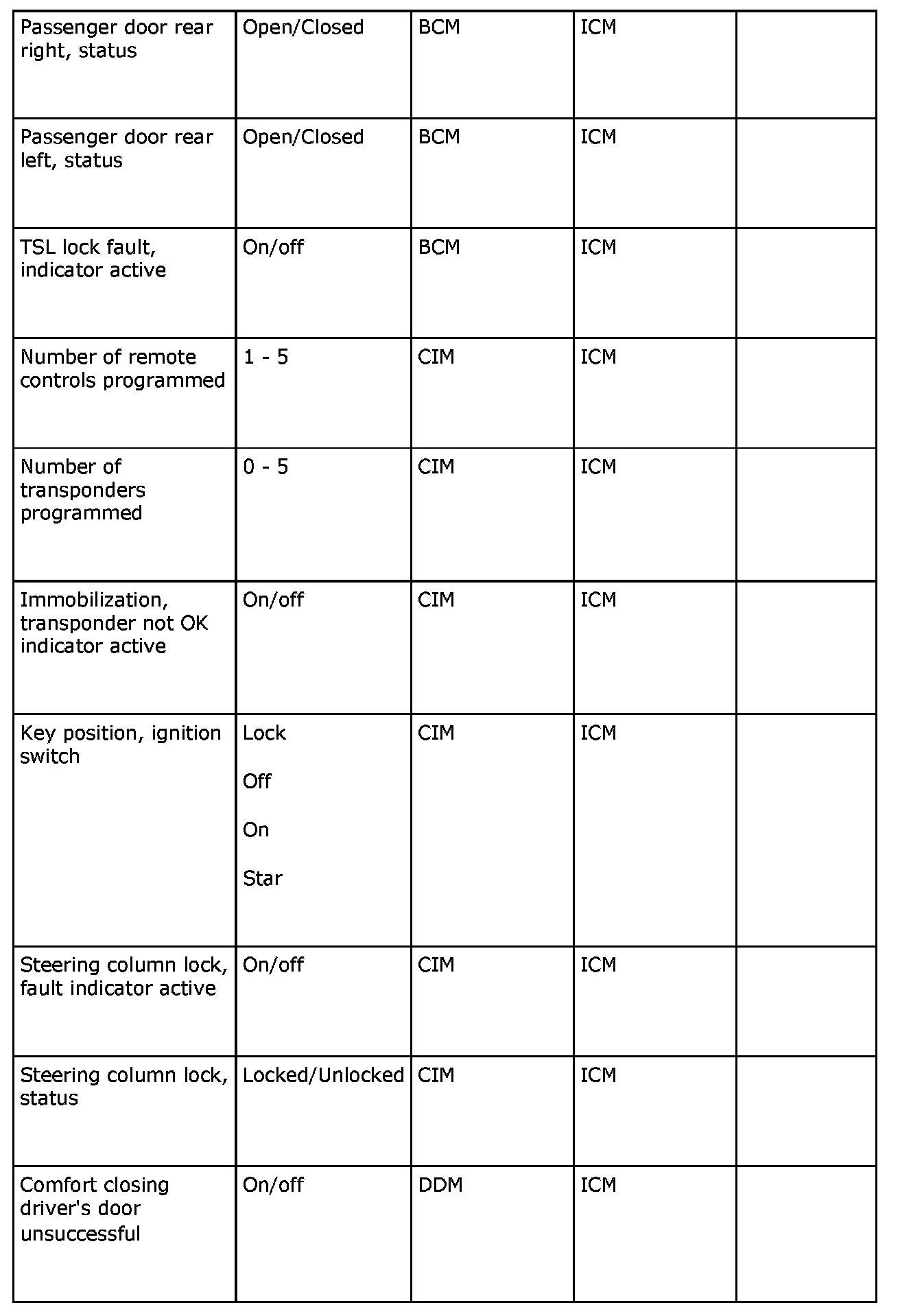

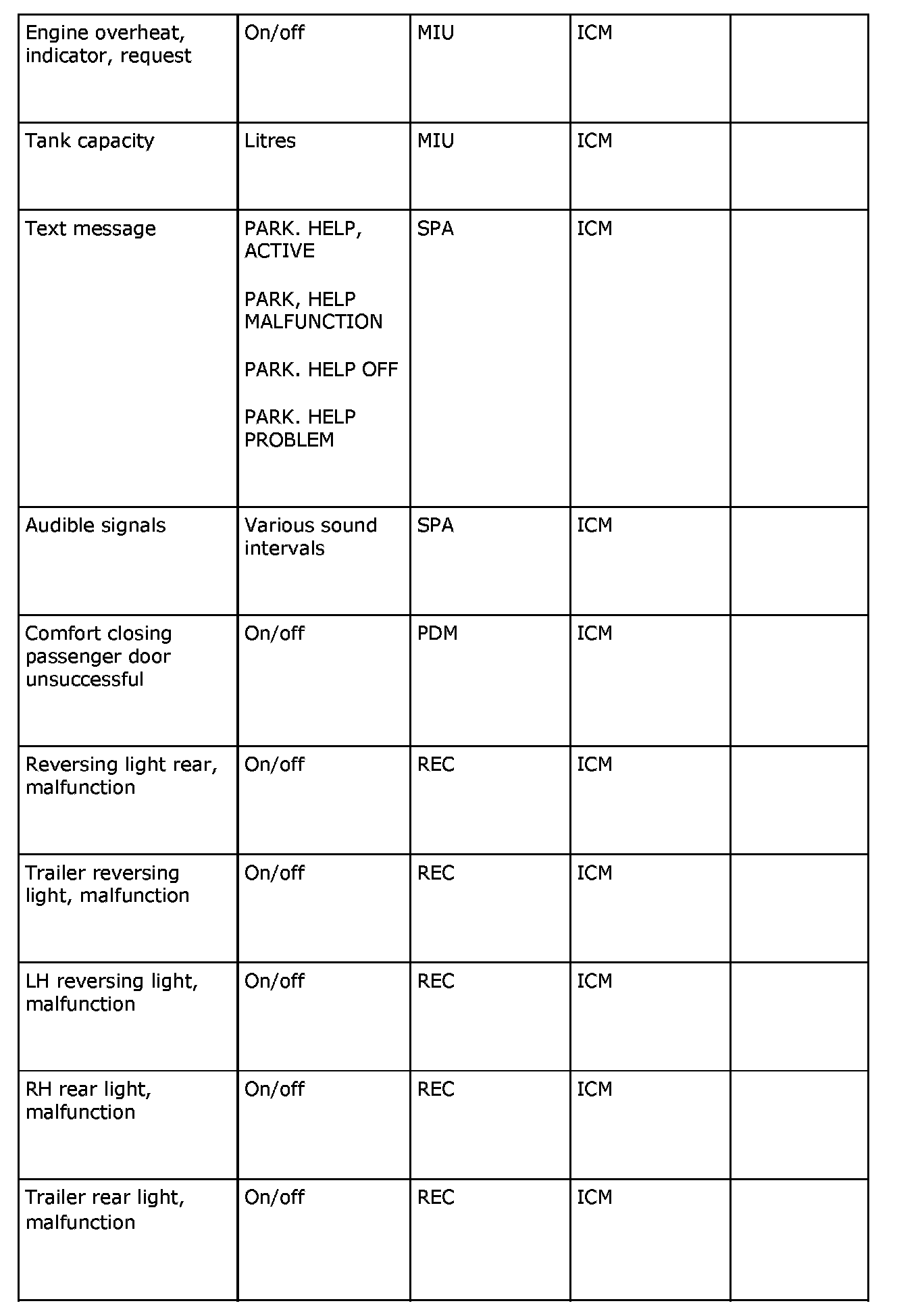

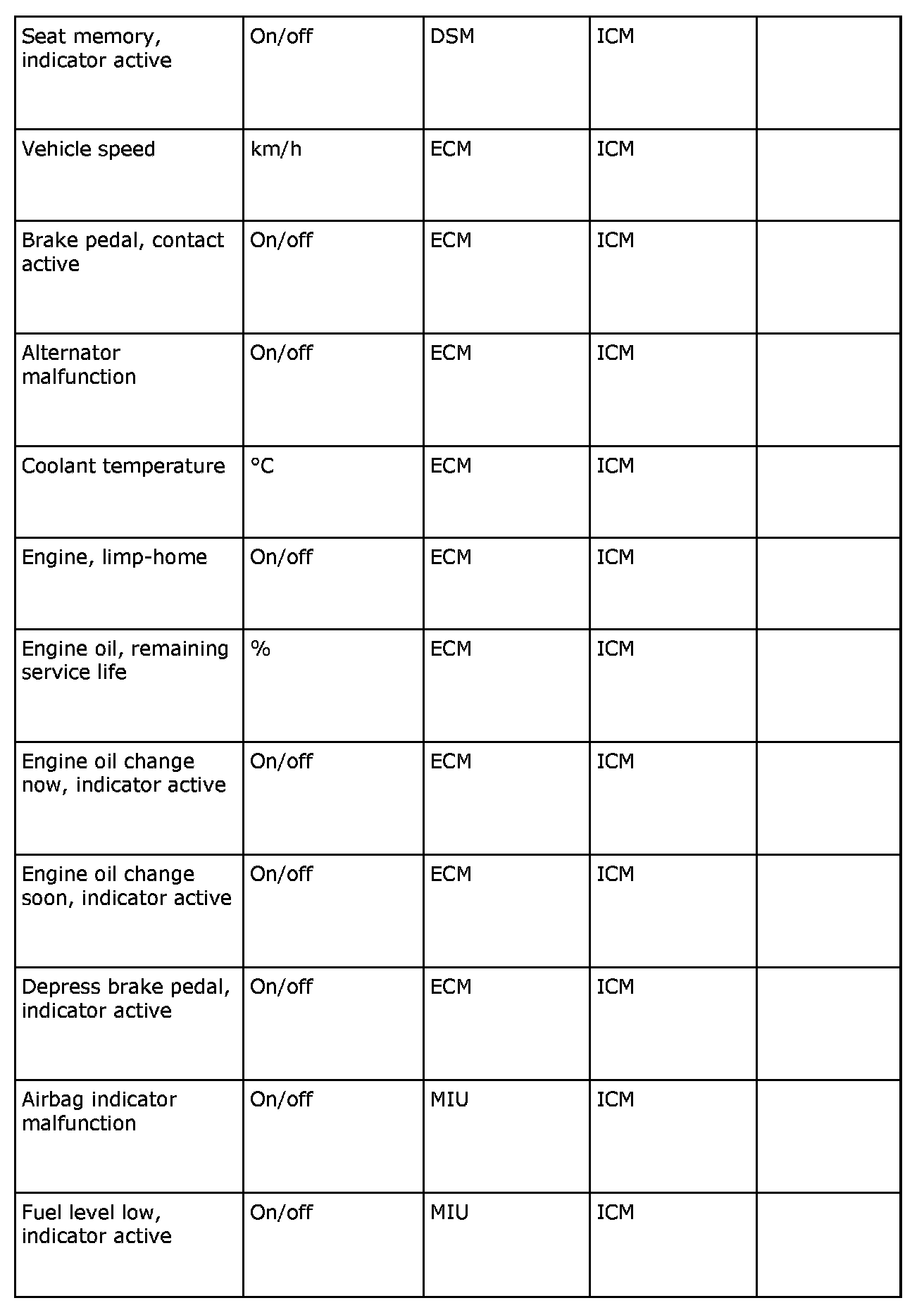

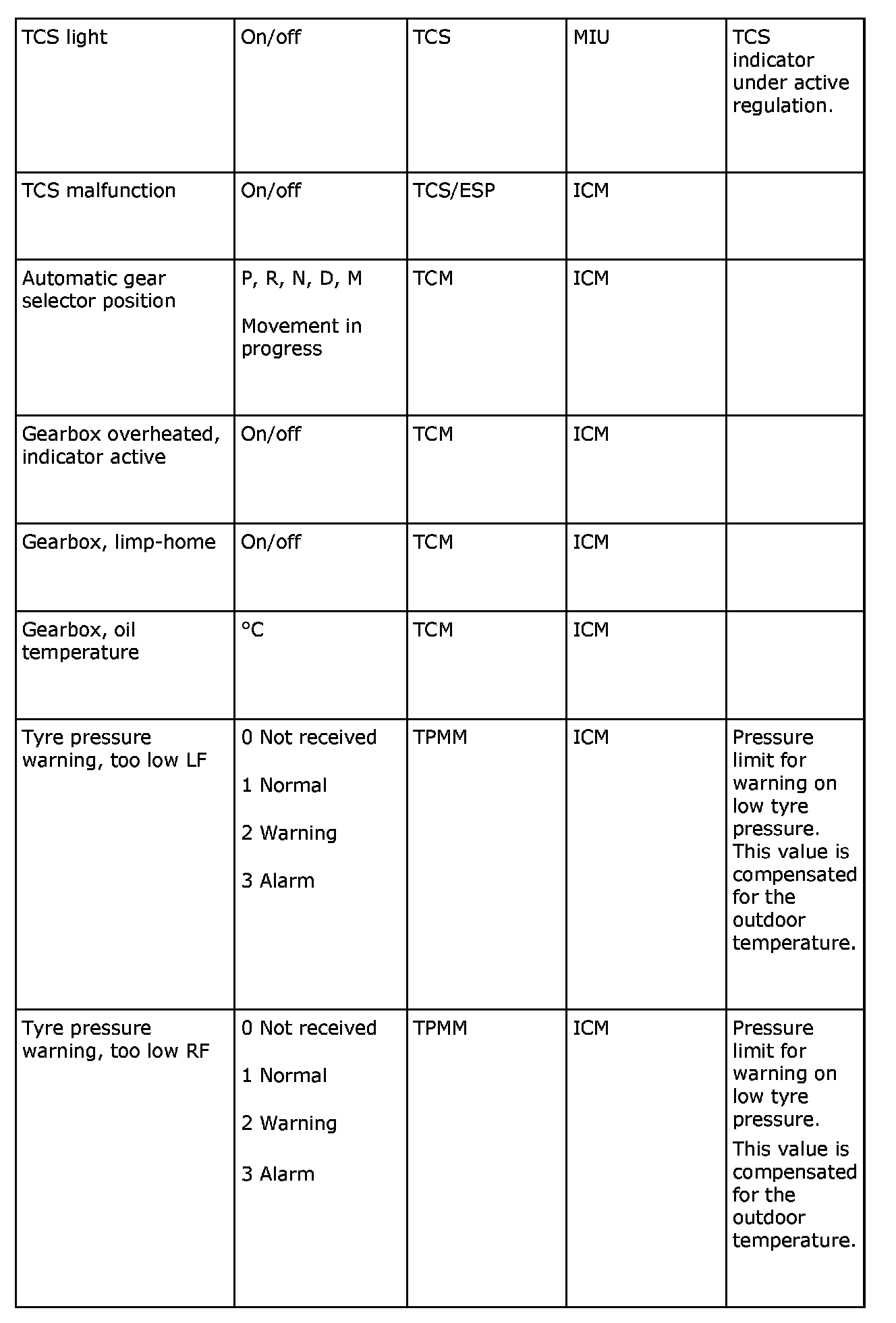

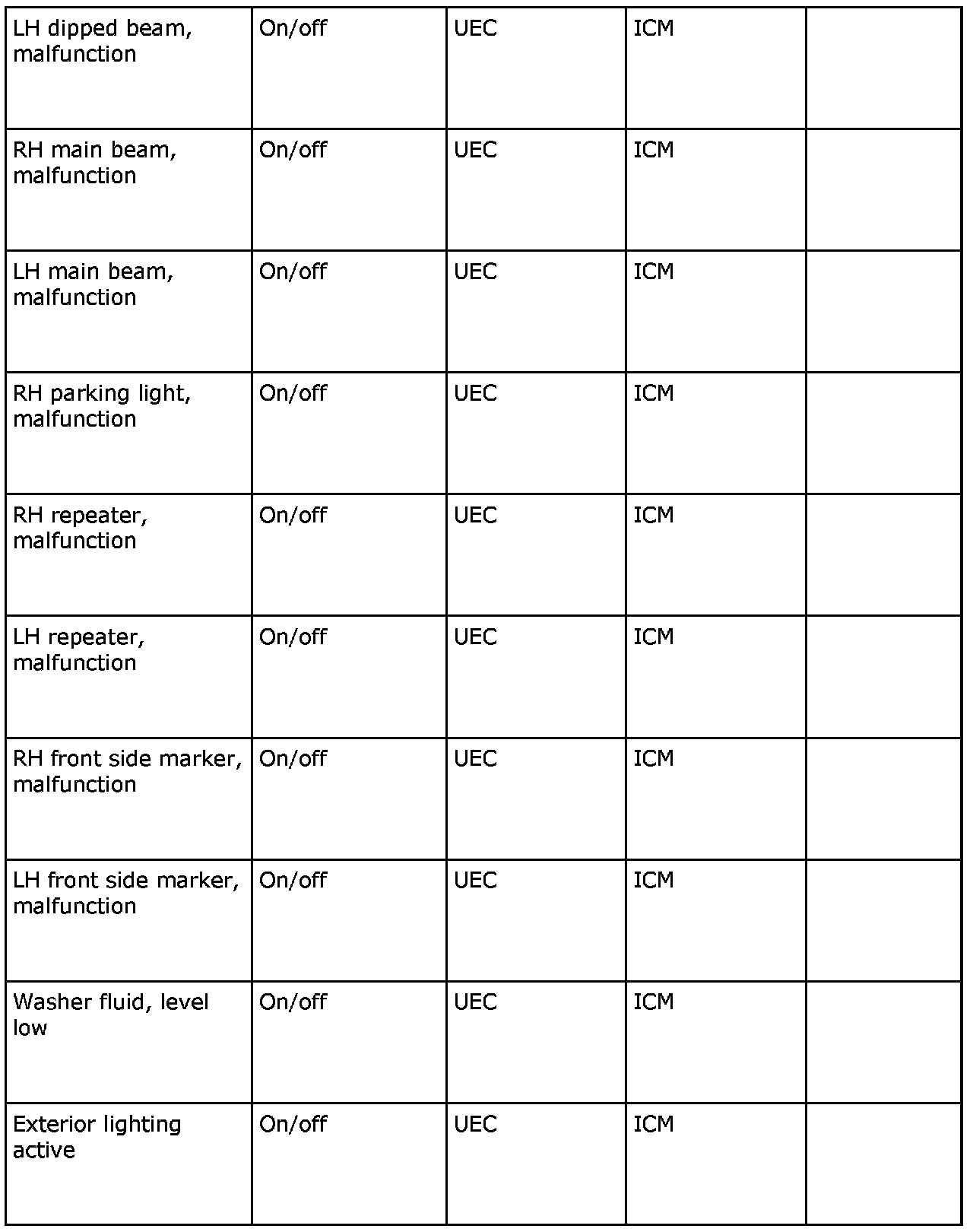

SID Display and Buttons, Bus Information



SID Display And Buttons, Bus Information


Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:




Part 7:




Part 8:




Part 9:




Part 10:
