Crimp Connection J70, Instrument Harness



Location:

LHD: Approx. 190 mm from branching of light switch unit to column integration module

RHD: Approx. 150 mm from branching of grounding point G40 to grounding point G41

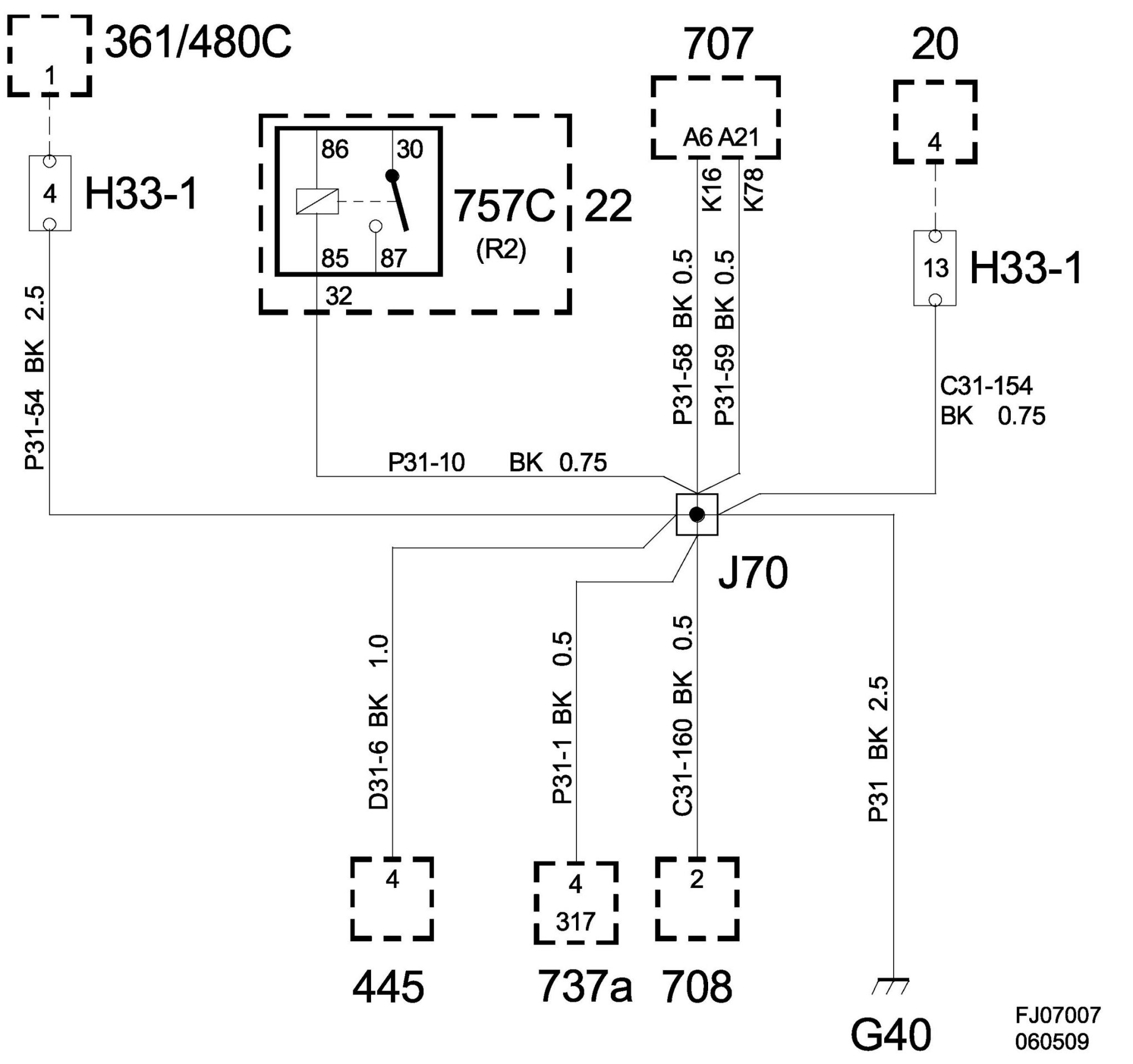

Crimp Connection J70, Instrument Harness:

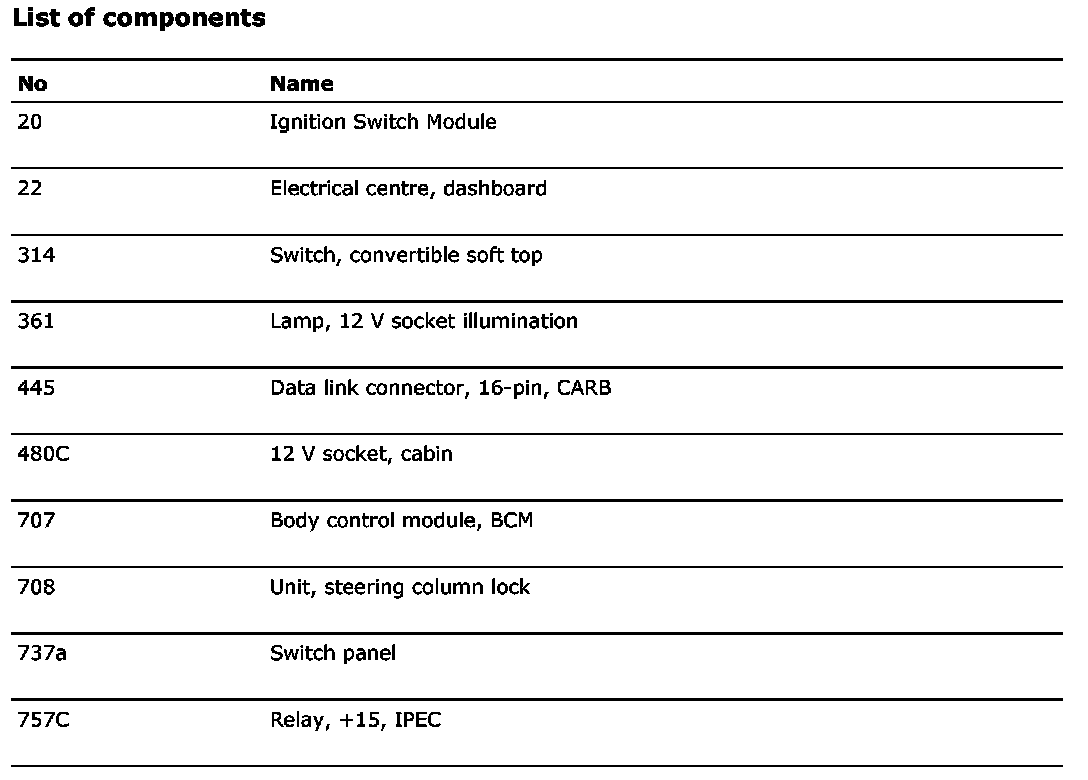

List Of Components:
