Power Supply +15, Rear Electrical Centre
Power Supply +15, Rear Electrical Centre

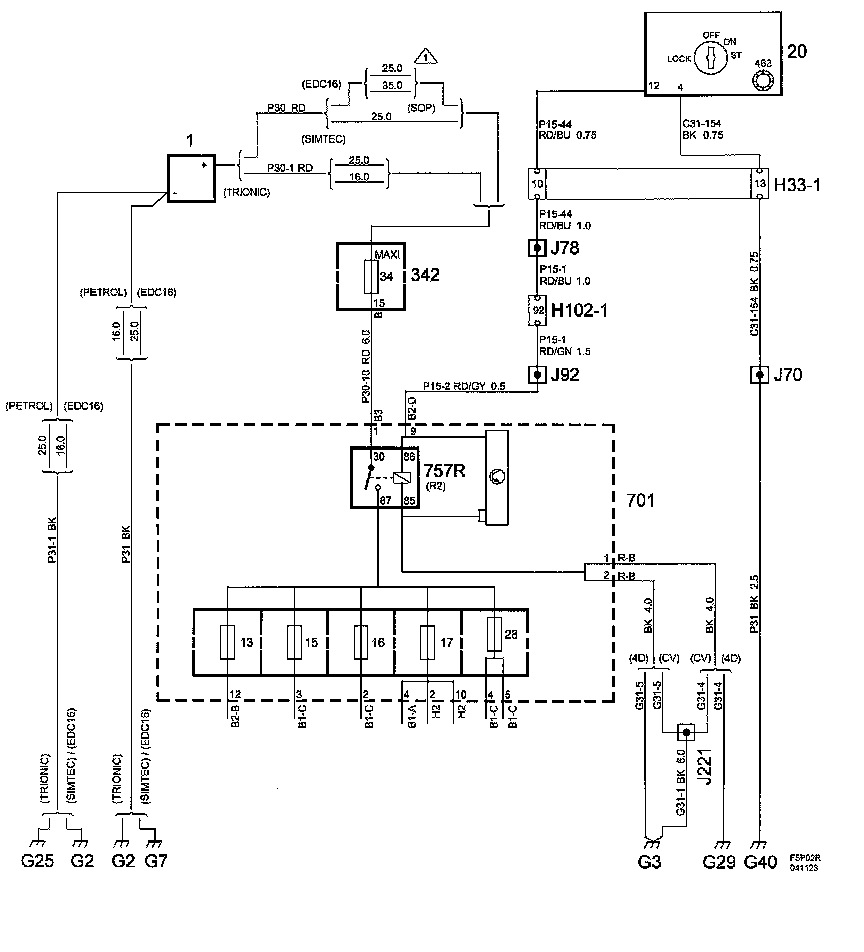

Power Supply +15, Rear Electrical Centre:

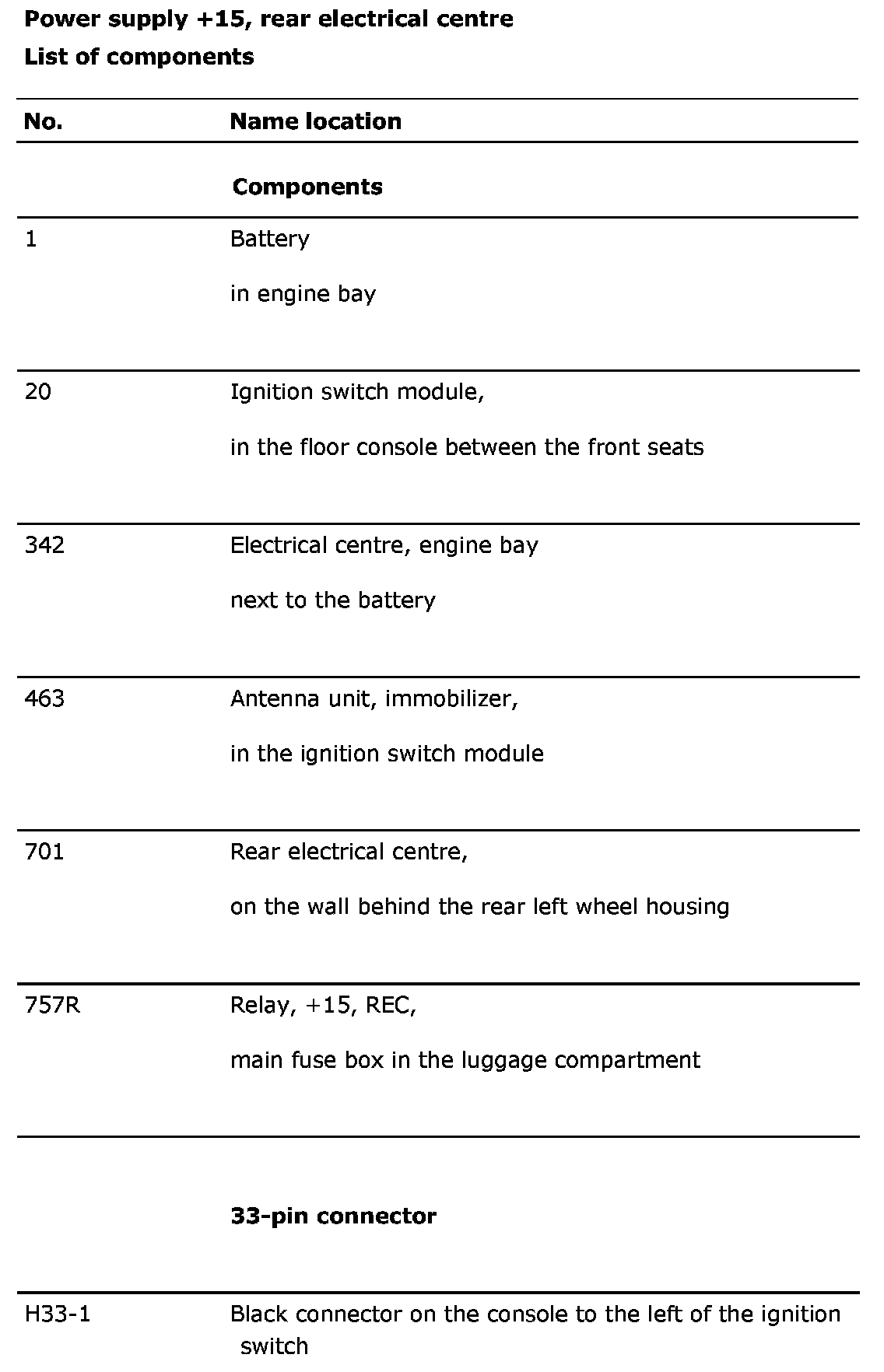

List Of Components (Part 1):

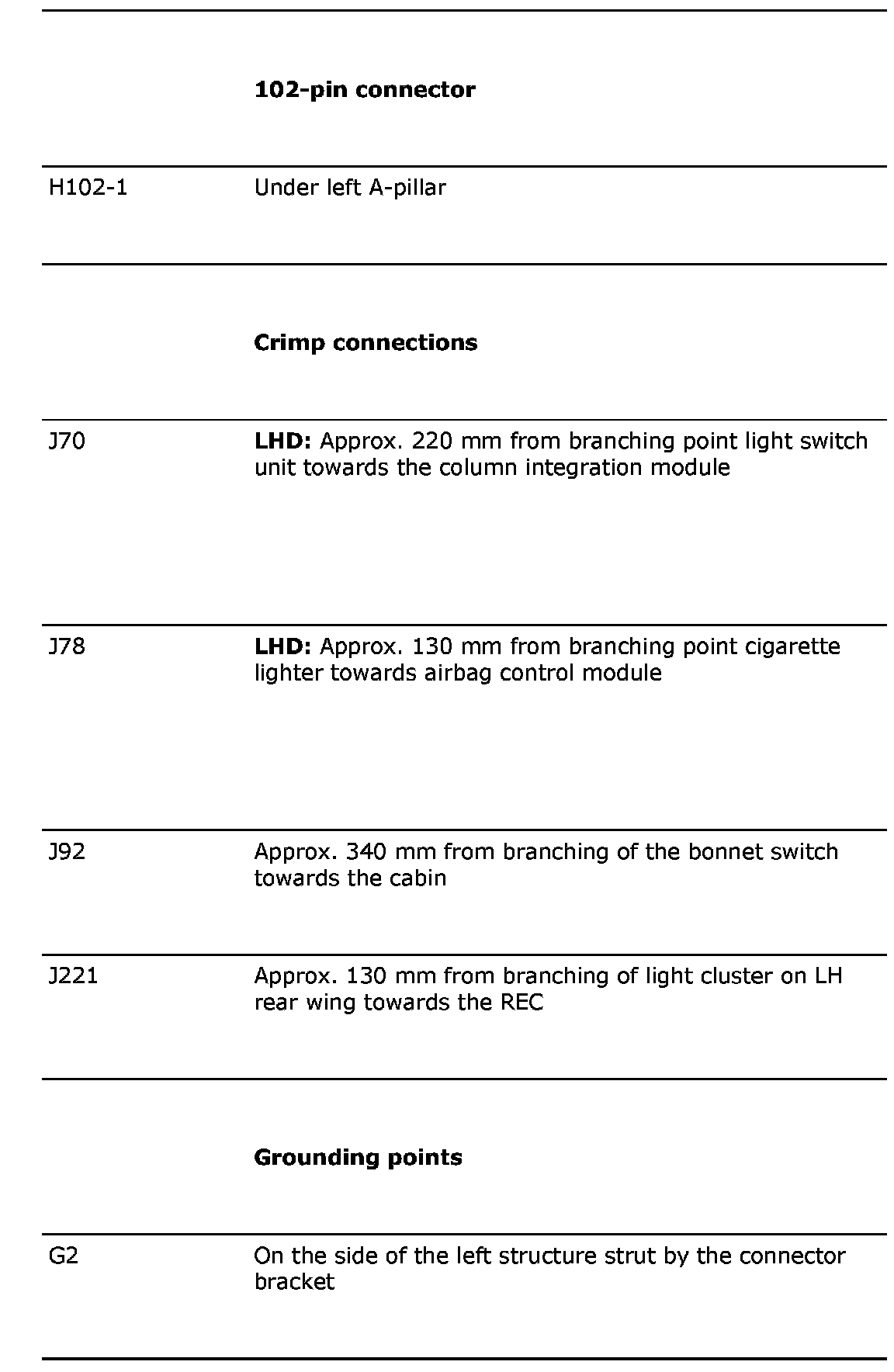

List Of Components (Part 2):

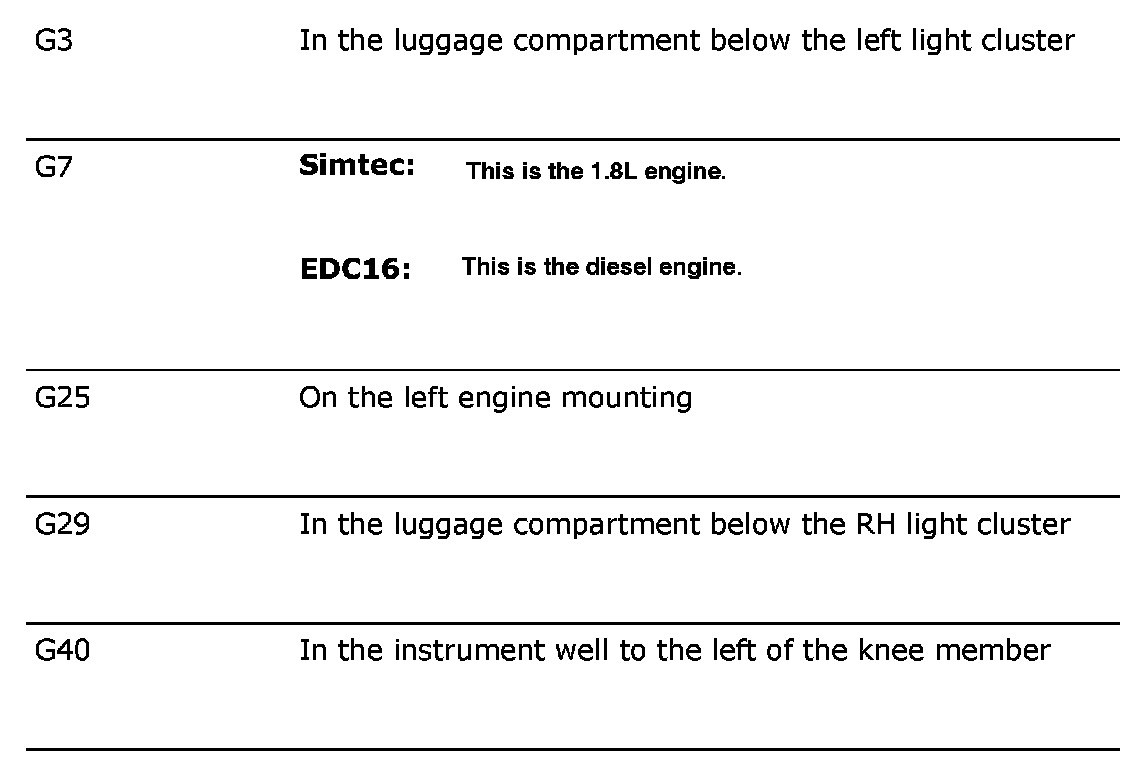

List Of Components (Part 3):
