Grounding Point G14

Grounding Point G14

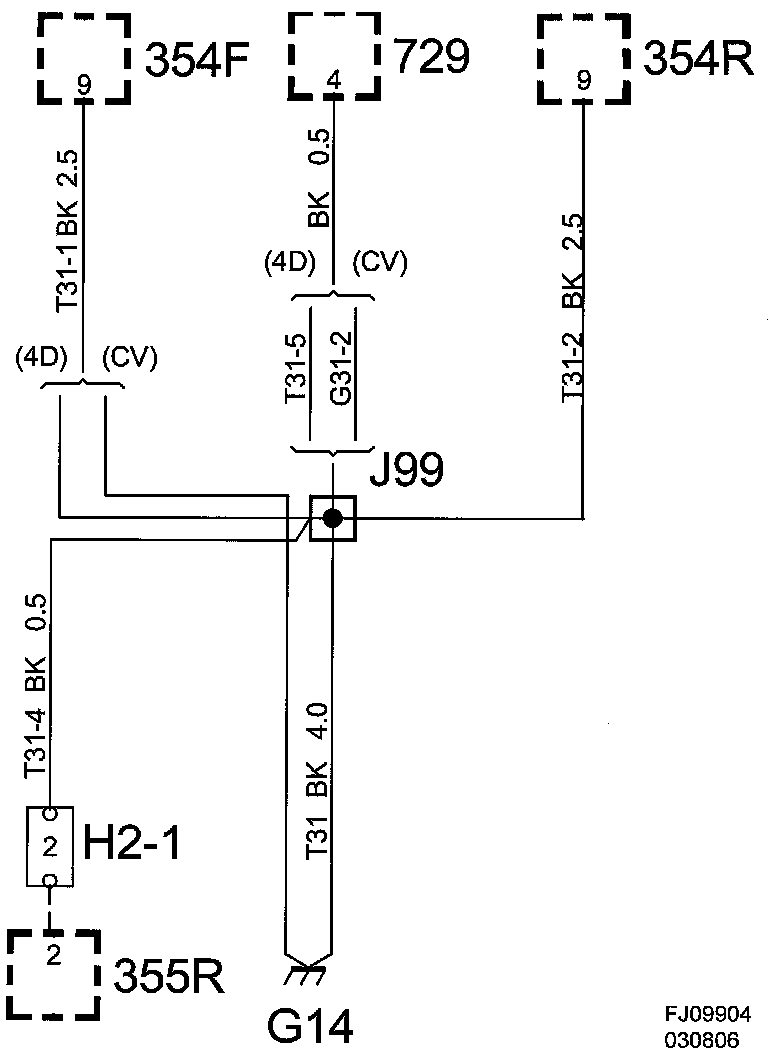

Diagram:

Connected Components

354F Amplifier, front speakers (CV)

Via Crimp J99, main wiring harness
354F Amplifier, front speakers (4D)
354R Rear speaker amplifier
355R Rear CD changer
729 DVD unit

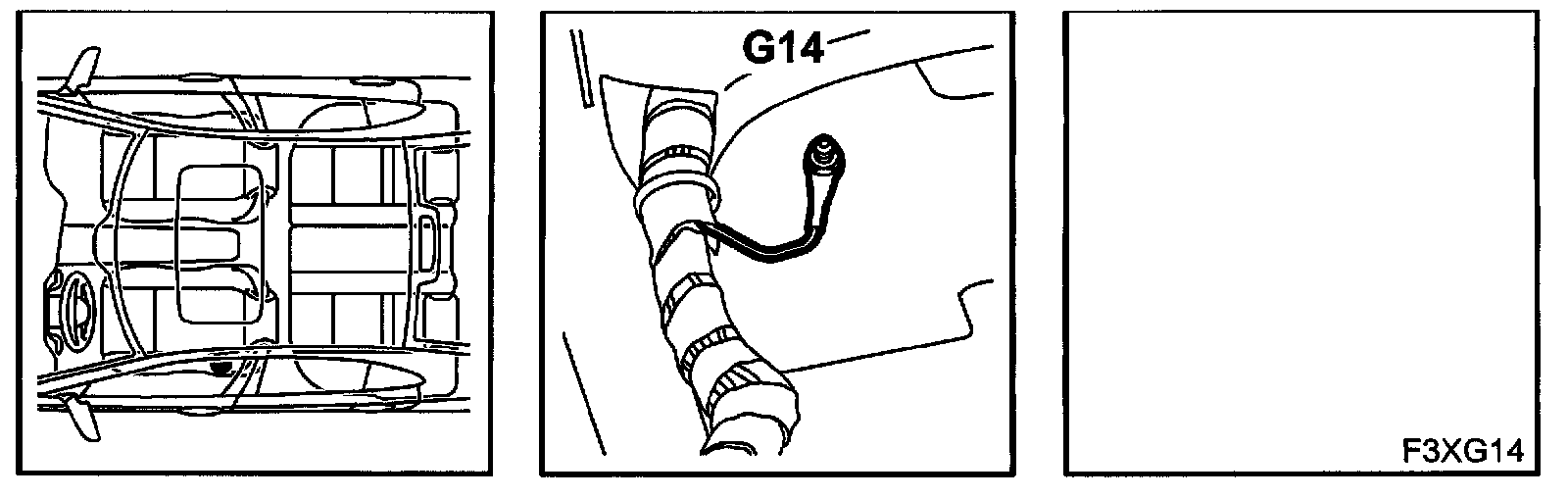

Grounding Point G14:

Location: By seat member under LH seat
