Wheels

Wheels





The wheel has direct centring to the hub. The wheel bolts are also equipped with tapered guides for the wheel.

Designation

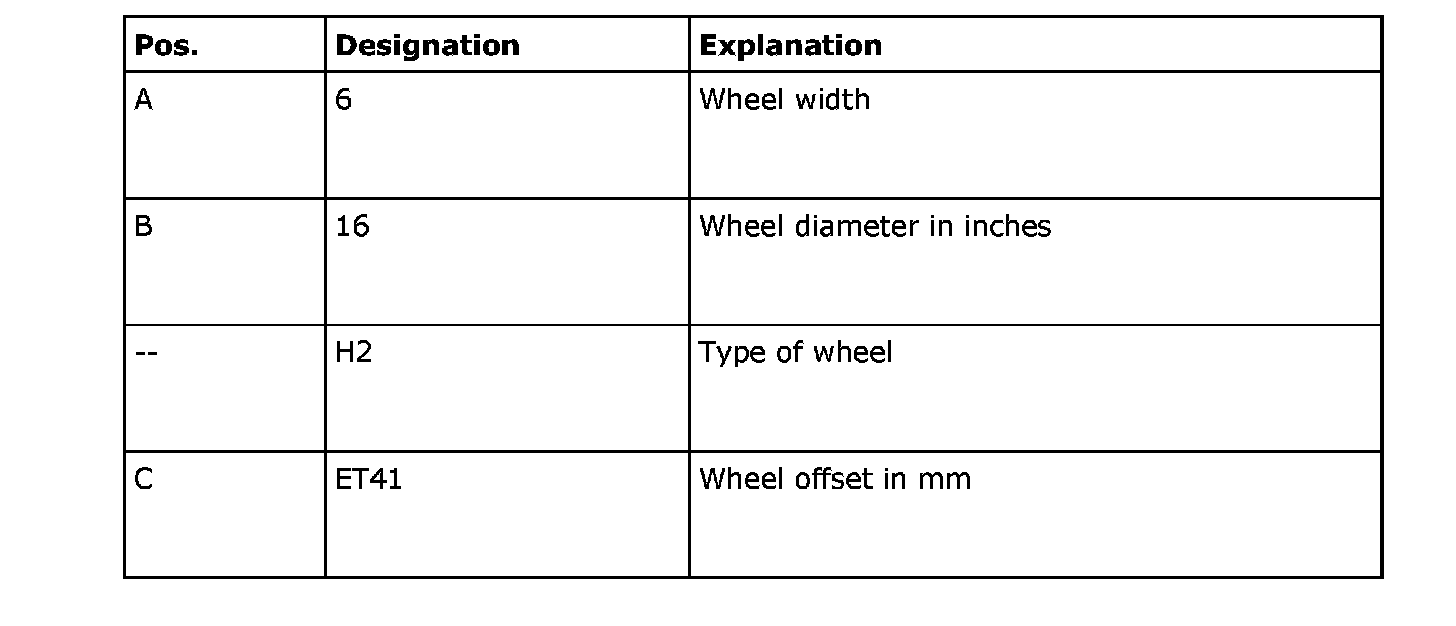

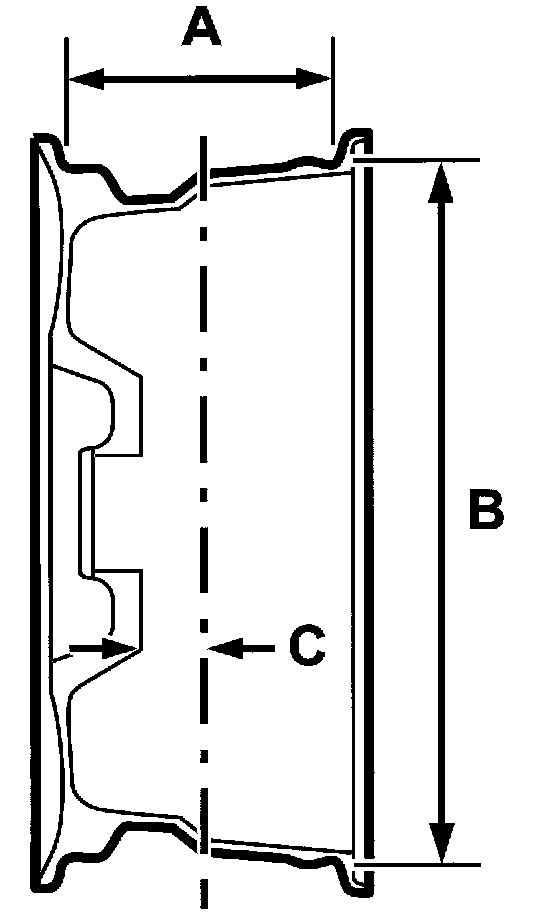

The dimensions of the wheel are described in its designation as per the following table. Example: 6J x 16 H2 ET41.

Wheel bolts
Bolt size M12 x 1.5 (5 per wheel). The same bolts are used for both pressed steel and light alloy wheels.
