Locations
>>
Splice Locations
>>

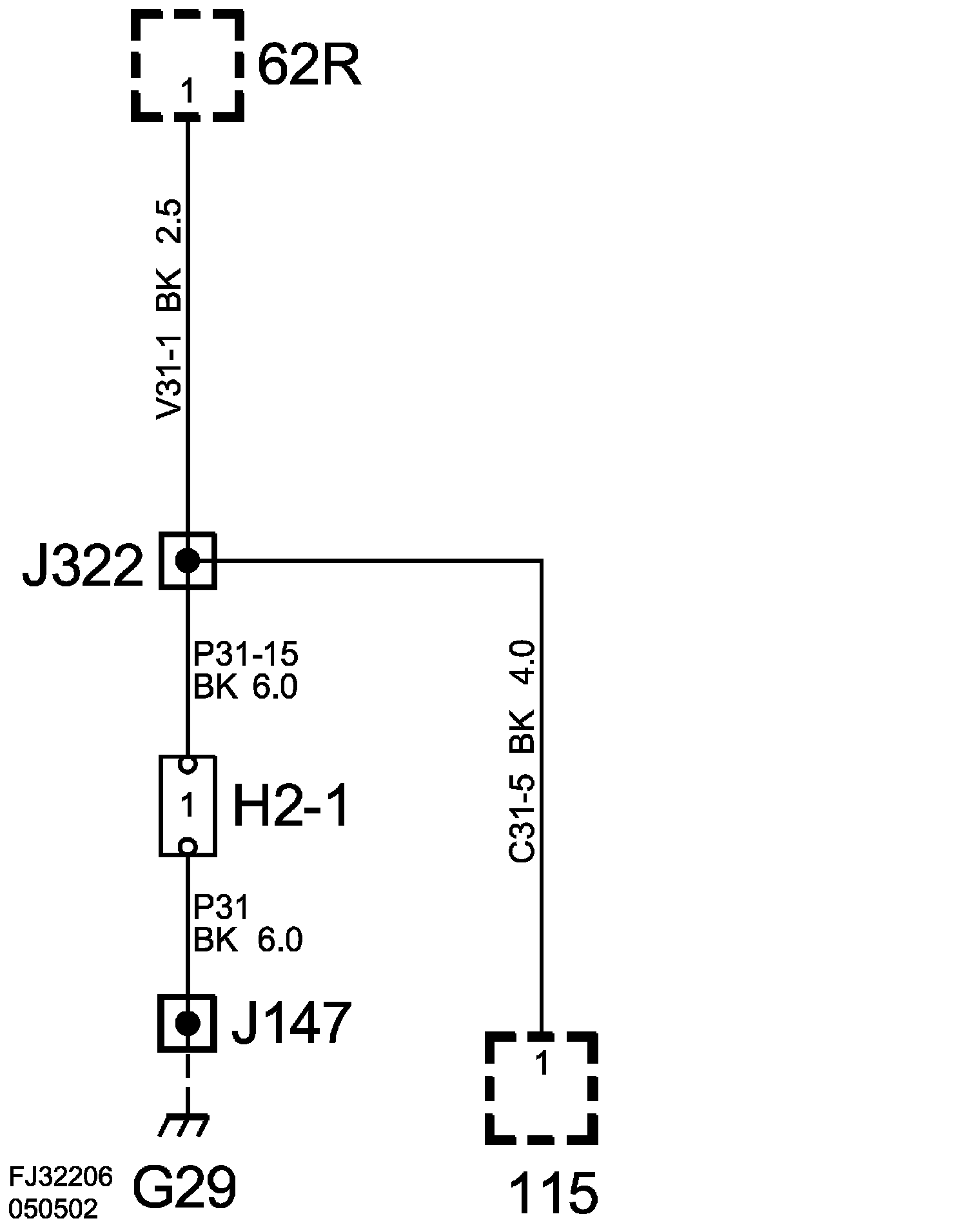

Crimp J322, Tailgate 5D
Crimp J322, Tailgate 5D
Location:
Approx. 360 mm from branching point high level brake light towards speakers
Crimp J322, Tailgate 5D:

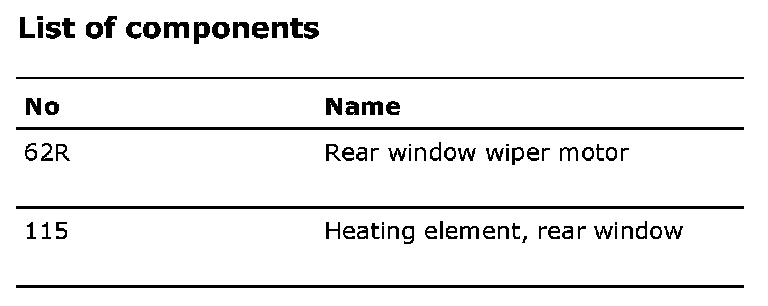

List of Components:
