Locations
>>
Splice Locations
>>

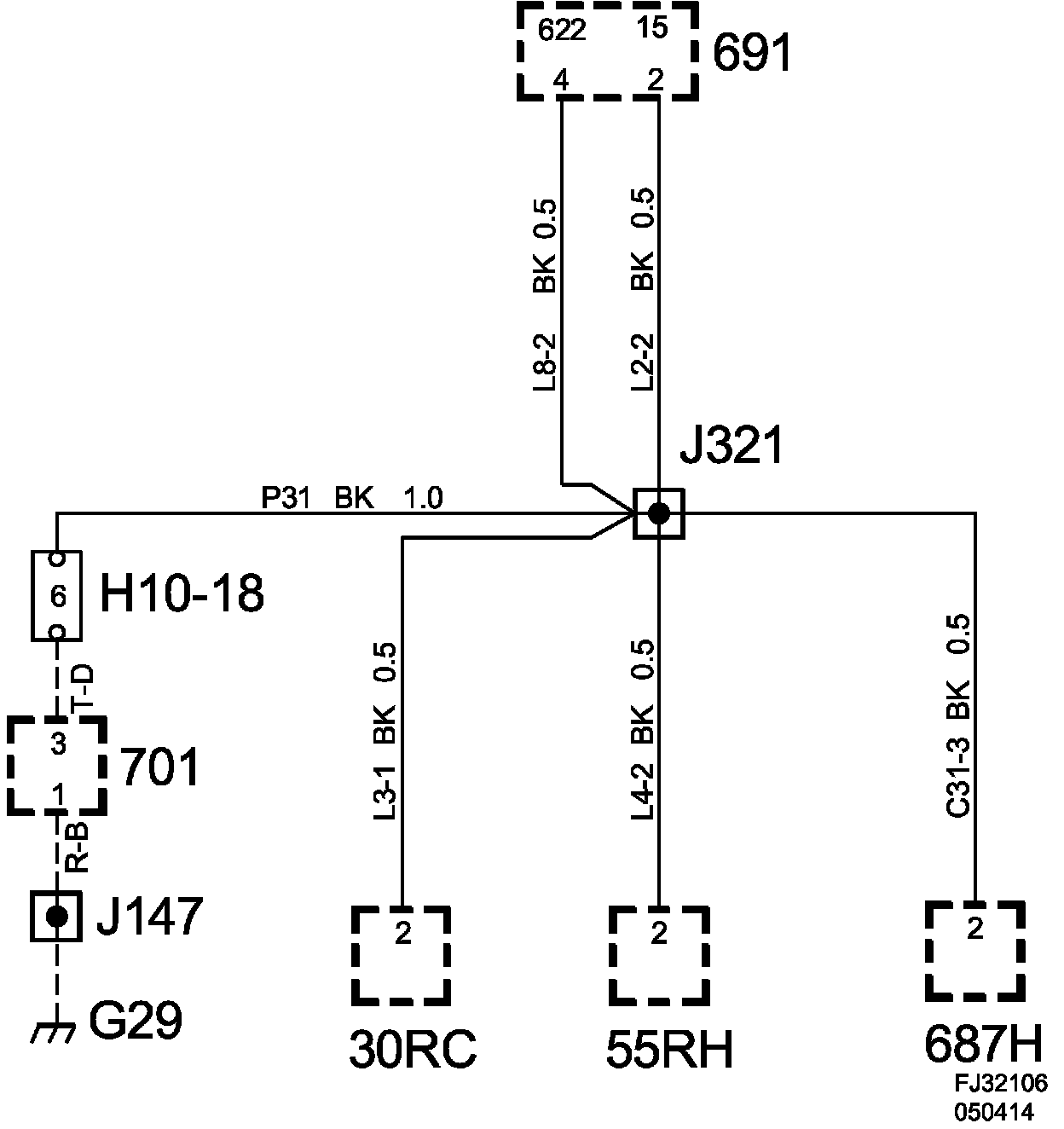

Crimp J321, Tailgate 5D
Crimp J321, Tailgate 5D
Location:
Approx. 230 mm from branching point high level brake light towards speakers
Crimp J321, Tailgate 5D:

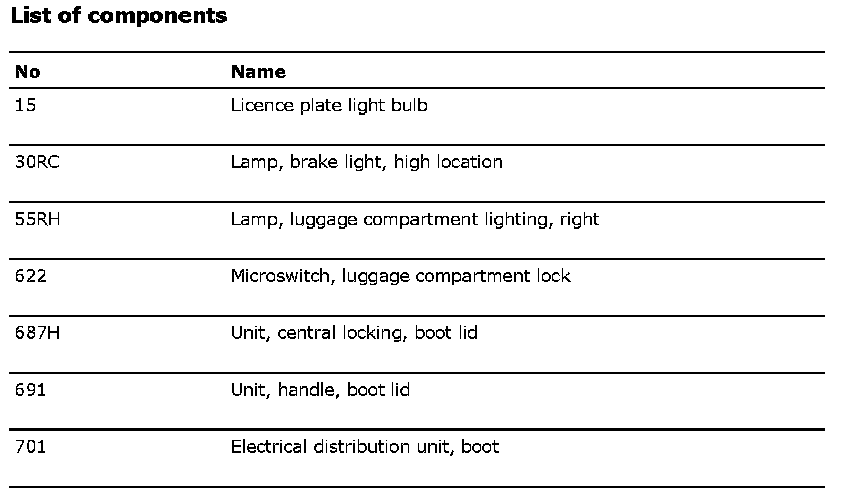

List Of Components:
