Front Direction Indicators

Front Direction Indicators

To remove

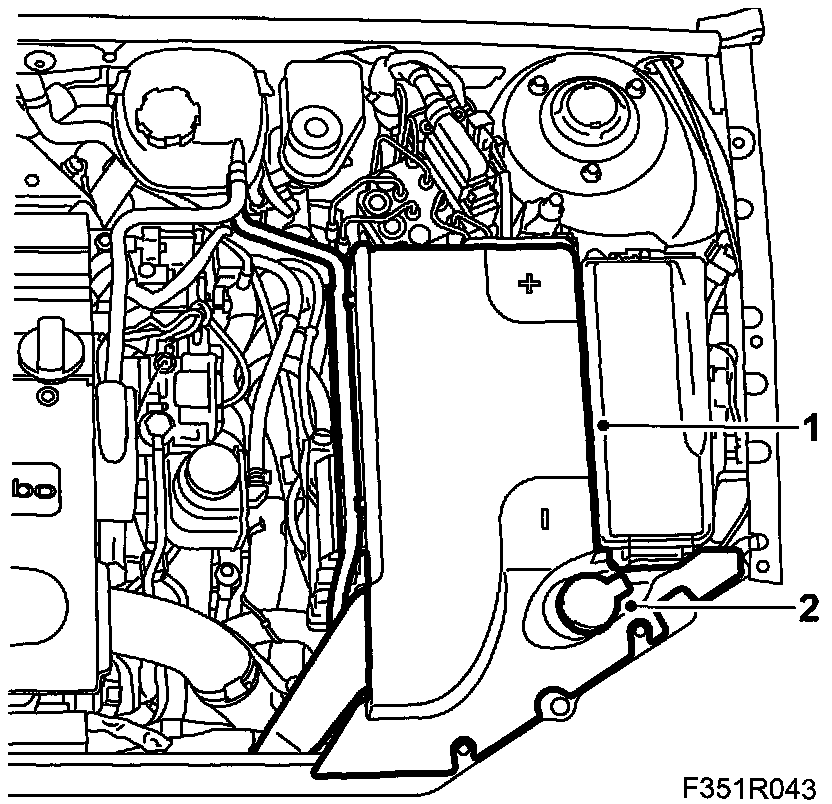

1. LH: Move the radiator hose to the side and remove the battery cover.







2. LH: Remove the filler pipe of the washer fluid reservoir.

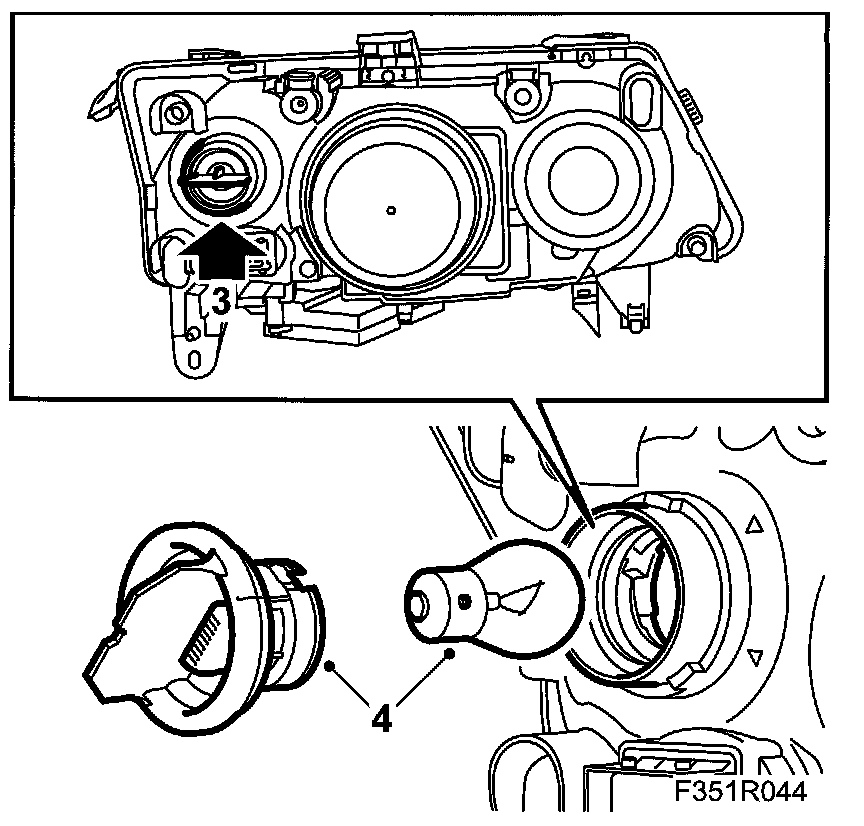

3. Remove the bulb socket by turning anticlockwise.







4. Remove the bulb from the socket by pressing it in slightly and turning anticlockwise.

To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

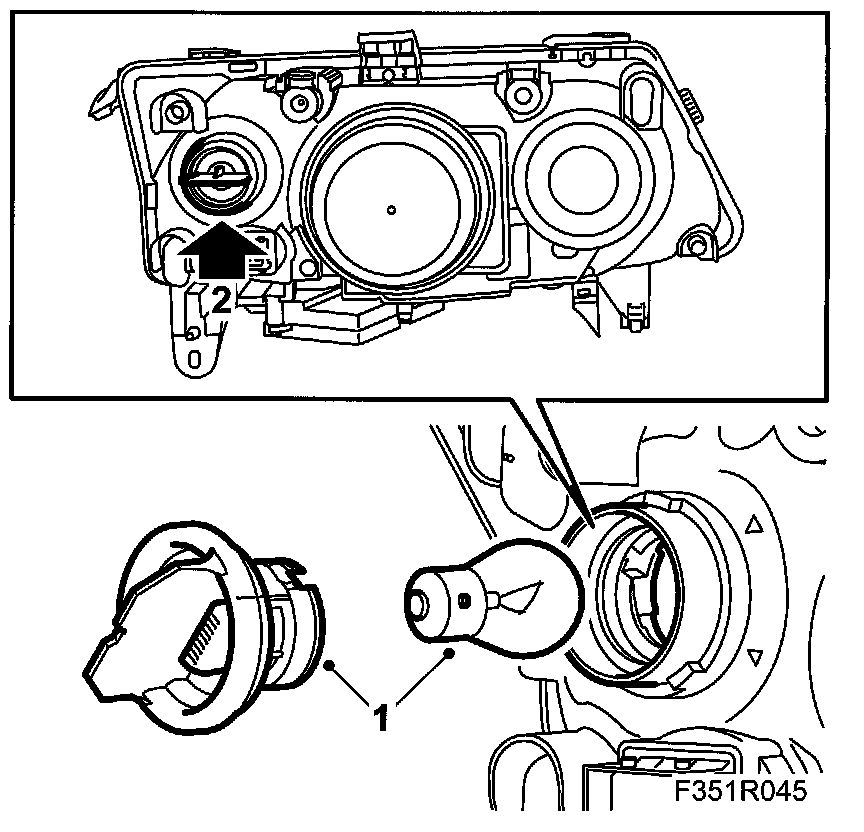

1. Fit the bulb in the socket by turning it clockwise until secure.

NOTE: To facilitate bulb fitting, look at the bulb from the front through the headlamp lens while fitting.







2. Fit the bulb socket to the headlamp by turning clockwise until secure.

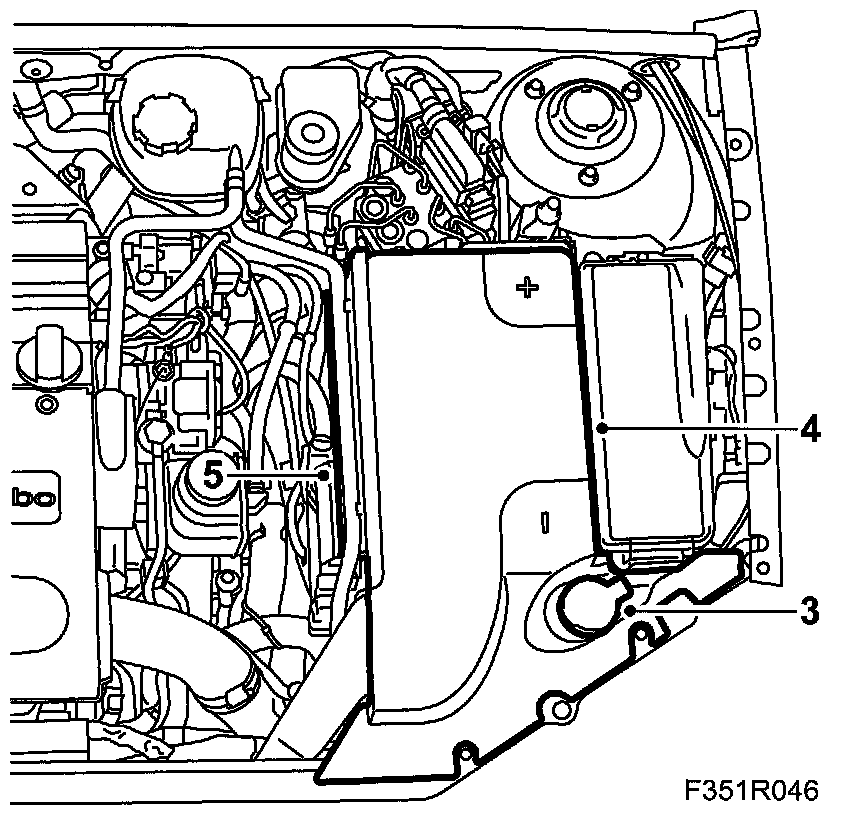

3. LH: Fit the filler pipe of the washer fluid reservoir.







4. LH: Fit the battery cover.
5. LH: Refit the radiator hose.
