Removal and Replacement

Rear Light Cluster

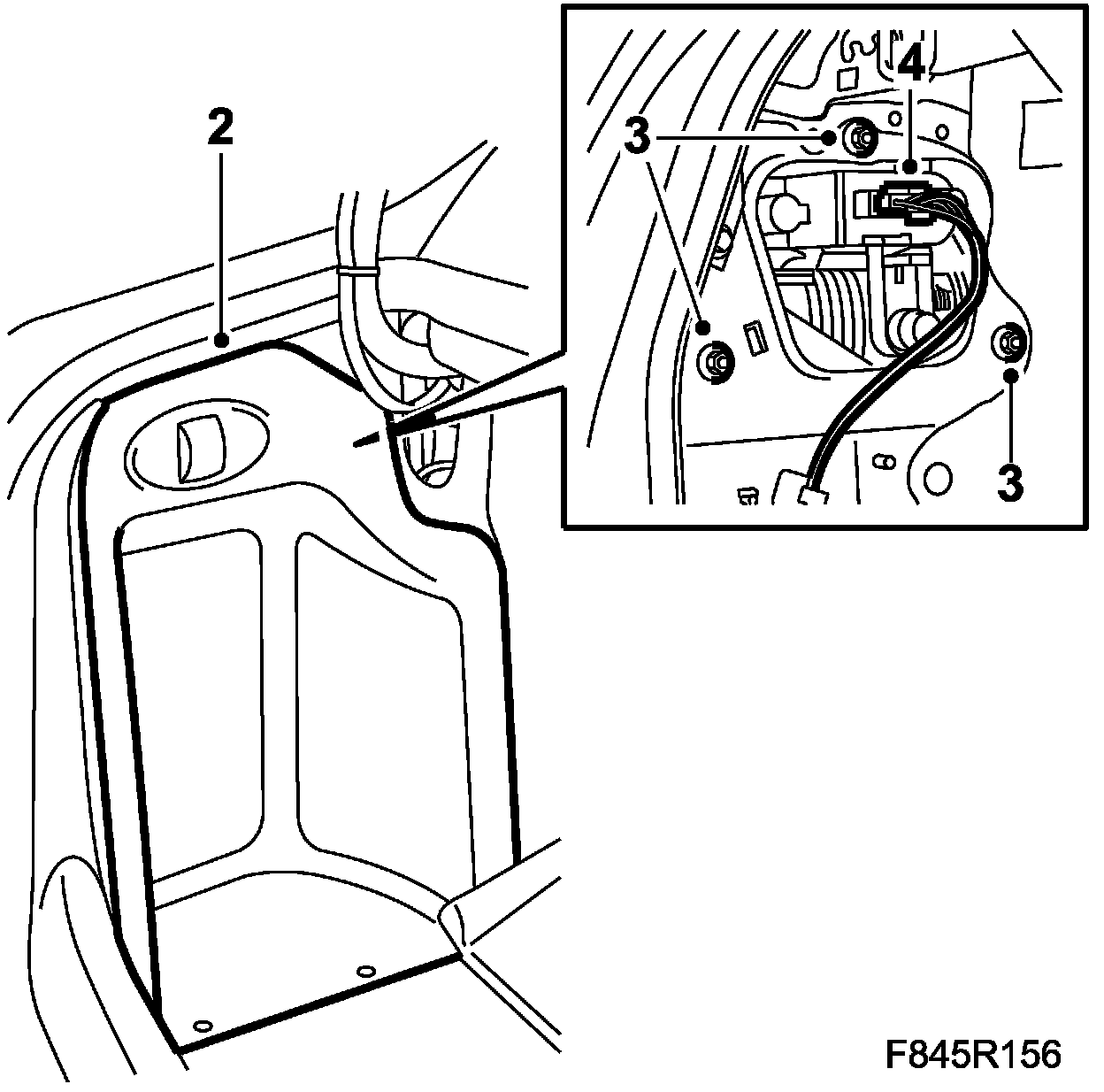

Removing

1. Open the boot lid.
2. Open the side hatches.





3. Remove the rear light's 3 nuts.
4. Part the connector and remove the rear light.

Fitting

1. Plug in the connector.
2. Fit the rear light with the help of the guide pins. Check the fit against the luggage compartment's moulding and rear light.
3. Fit the rear light's nuts.

Tightening torque up to and including M06 10 Nm (7 ft. lbs.)
Tightening torque from and including M07 8 Nm (6 ft. lbs.)





4. Close the side hatches close the boot lid.
