Light Cluster, Boot Lid, Convertible

Light Cluster, Boot Lid, Convertible

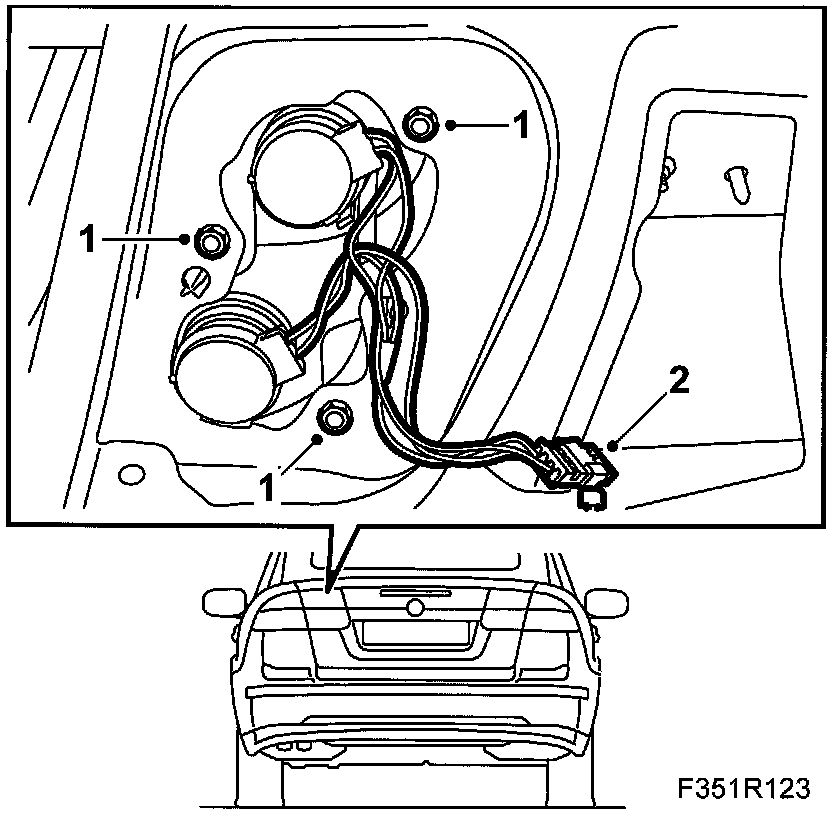

To Remove
1. Remove the boot lid trim.






2. Unplug the light cluster connector.
3. Undo the nuts of the rear lamp and remove the rear lamp.
4. If the rear lamp is to be replaced, the fittings and bulbs must be transferred to the new lamp.

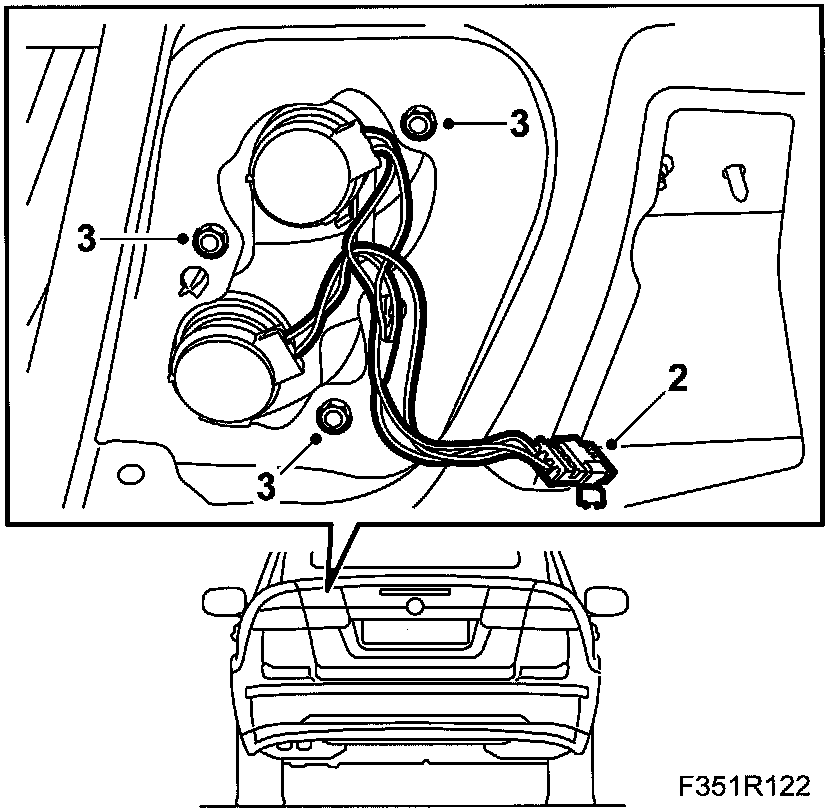

To Fit






1. Check that the seal is whole and correctly fitted. Properly position the rear lamp. Fit and tighten the rear lamp nuts.
2. Plug in the light cluster connector.
3. Refit the boot lid trim.
