Brake Light Switch (29), T8

Brake Light Switch (29), T8

Main task
Brake light information is used by the control module to:
- Disengage cruise control
- Limit engine torque when braking
- Allow for vehicle speed signal diagnosis.

Type
Closing switch.

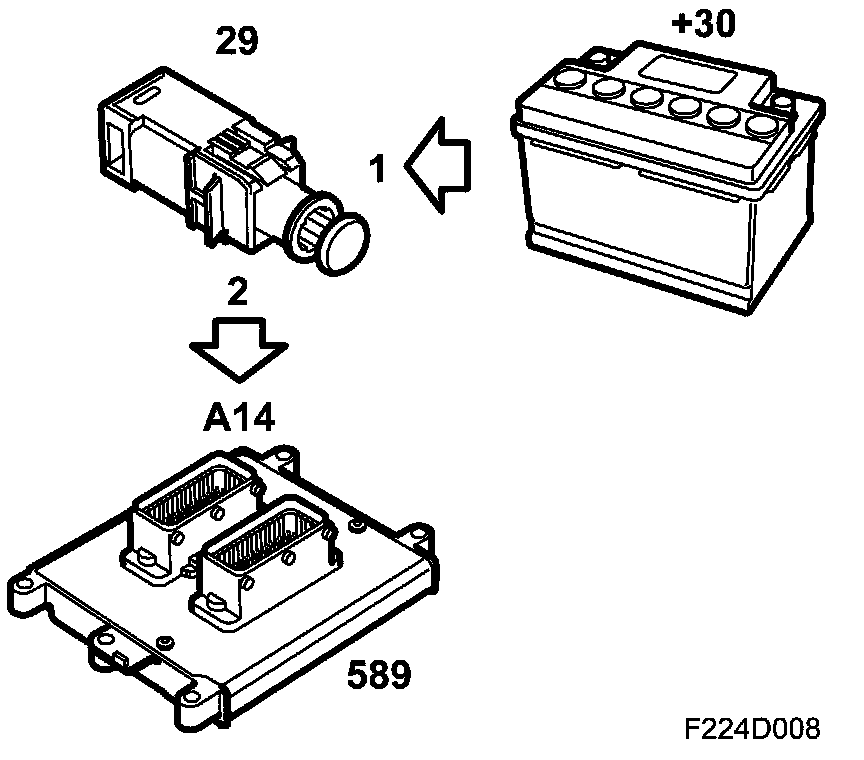

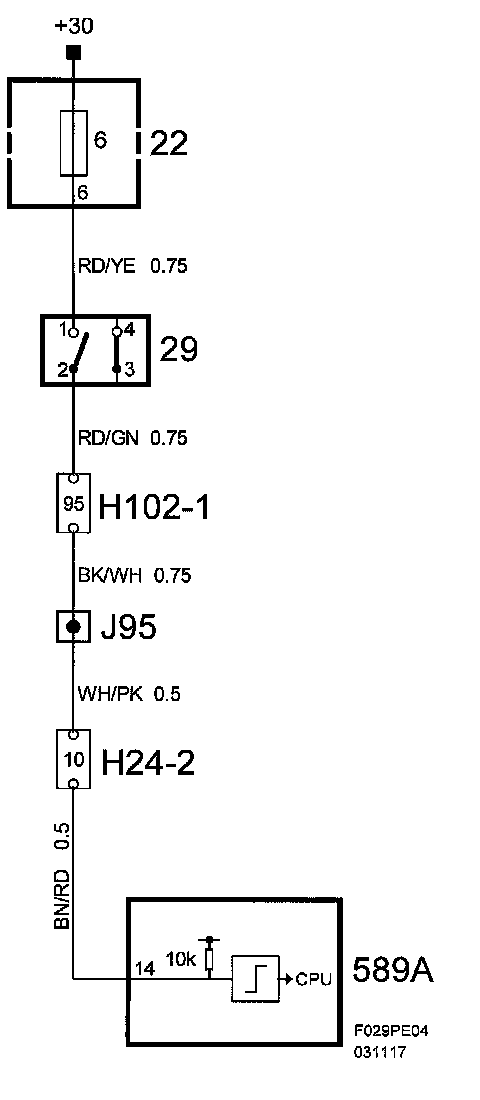

Connection

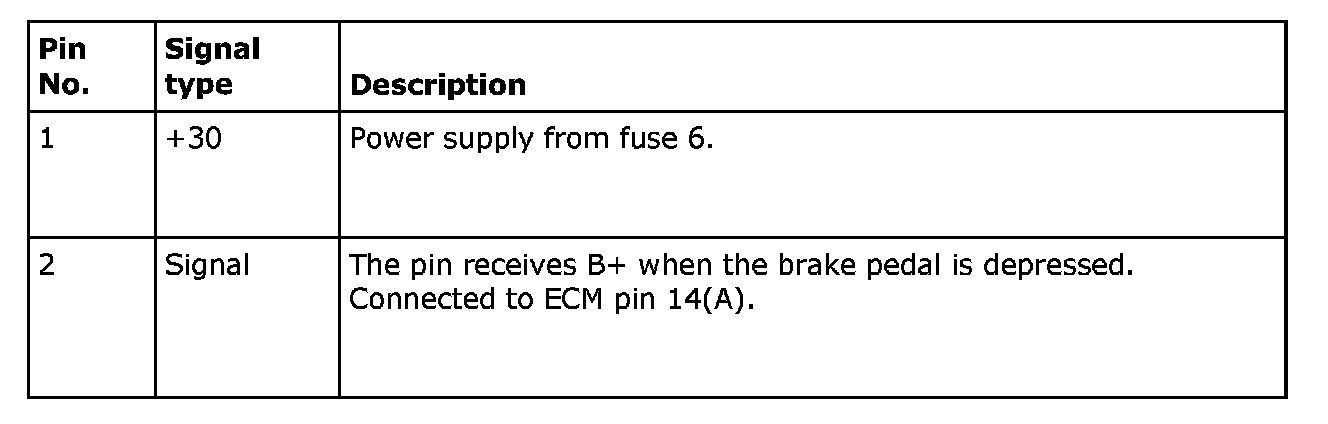

Pin No. 1 - 2:
