Rear Light Cluster, Sedan

Rear Light Cluster

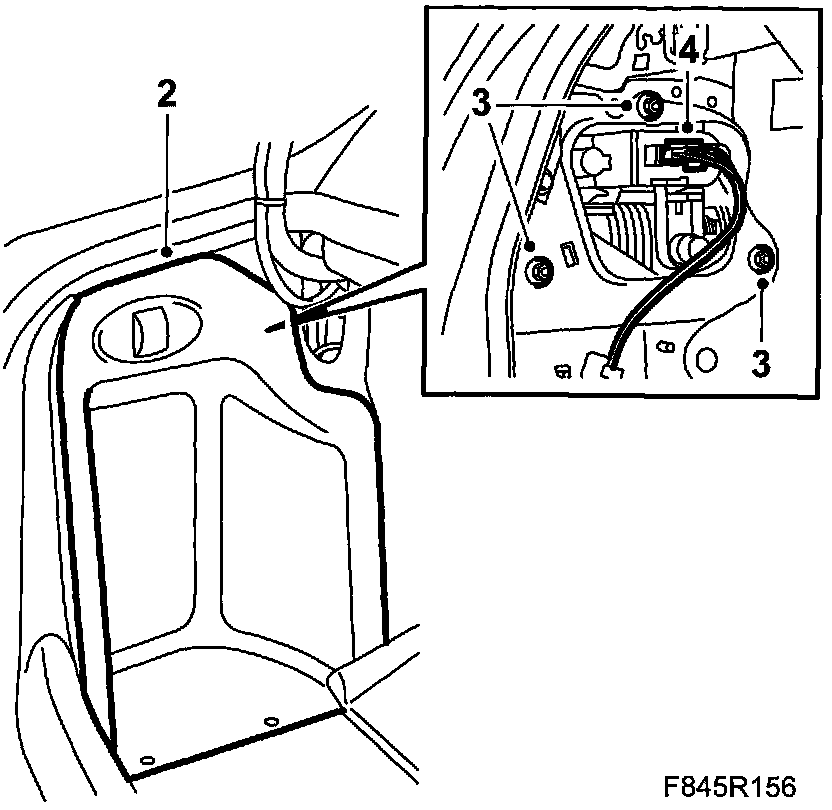

Removing
1. Open the bootlid.
2. Open the side hatches.







3. Remove the rear light's 3 nuts.
4. Part the connector and remove the rear light.

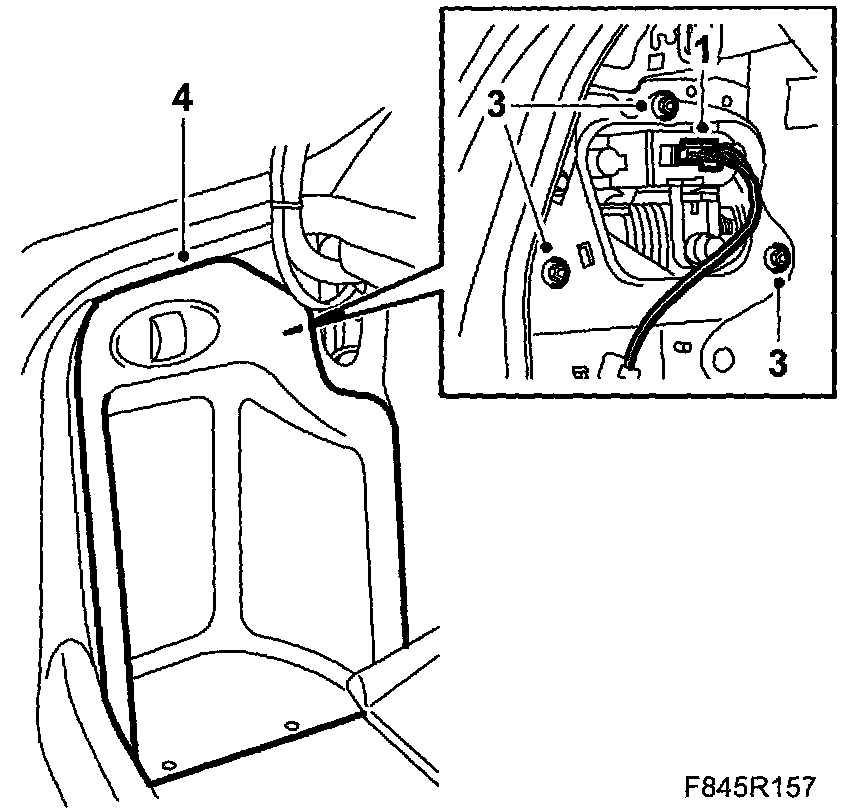

Fitting
1. Plug in the connector.
2. Fit the rear light with the help of the guide pins. Check the fit against the luggage compartment's moulding and rear light.
3. Fit the rear light's nuts.







4. Close the side hatches close the bootlid.
