Front

Front Parking Lights

To remove

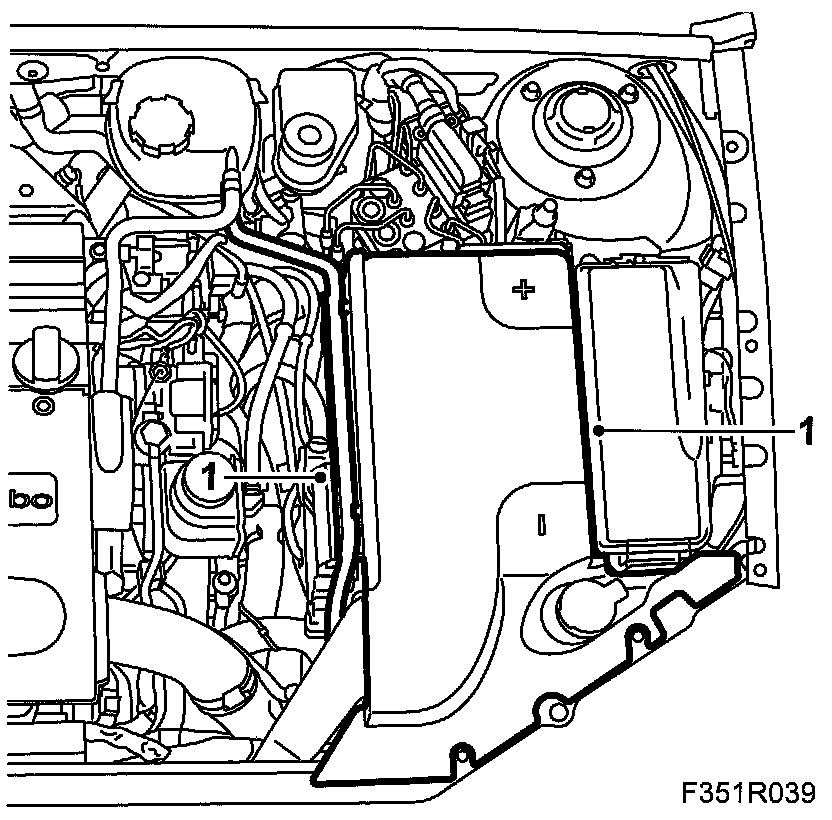

1. LH: Move the radiator hose to the side and remove the battery cover.

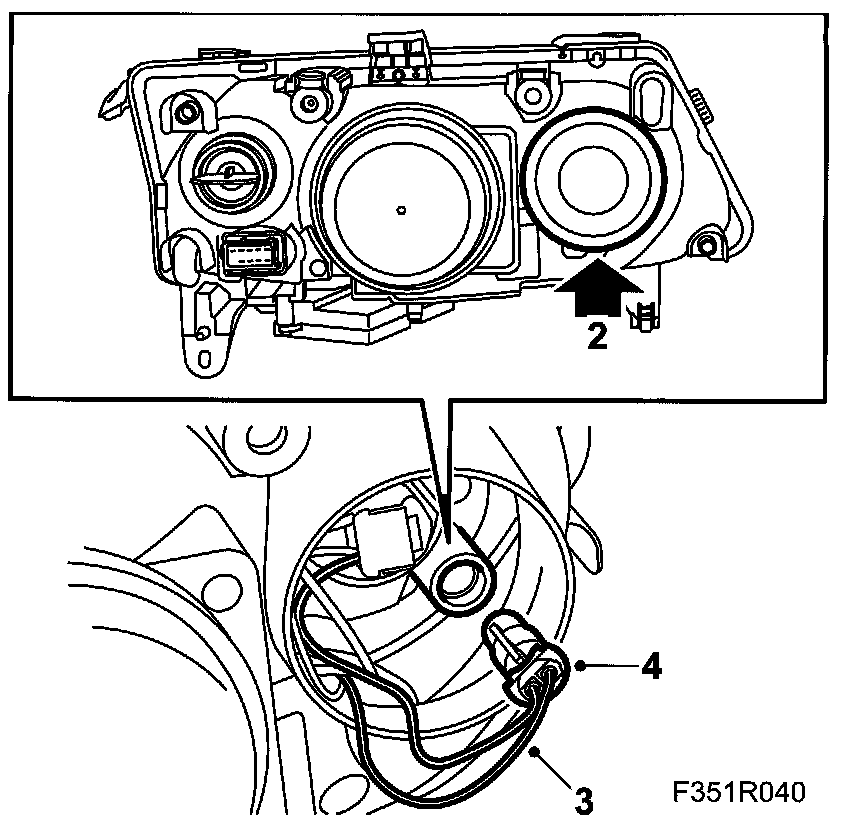

2. Remove the protective cover of the headlamp.

NOTE: Carefully pull on the reinforced parking light cables to pull out the bulb socket.







3. Pull the bulb socket out of the lamp housing.
4. Remove the bulb from the socket.

To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

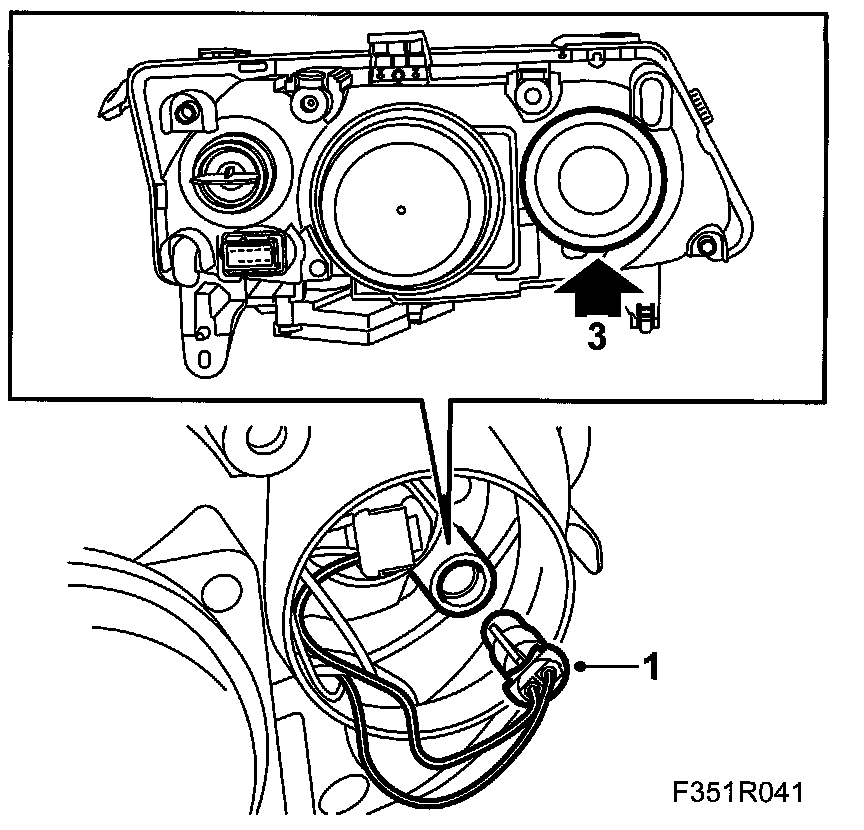

1. Fit the bulb into the socket.

NOTE: To facilitate bulb fitting, look at the bulb from the front through the headlamp lens while fitting.







2. Fit the bulb socket in the lamp housing.
3. Fit the protective cover of the headlamp.

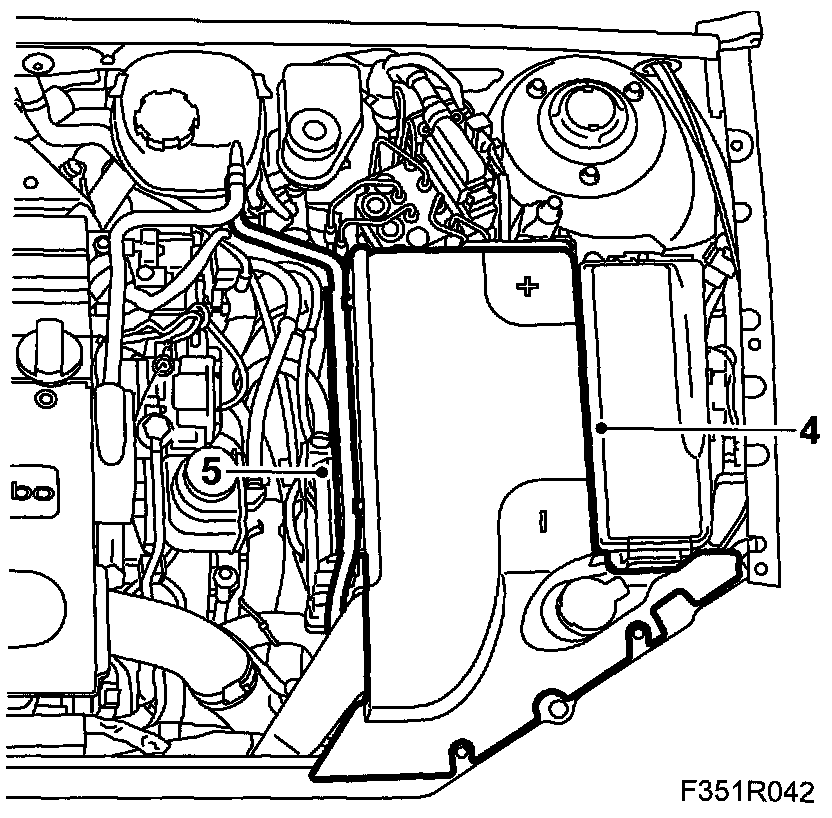

4. LH: Fit the battery cover.







5. LH: Refit the radiator hose.
