Marker Lamp: Service and Repair

Side Marker Lights

Replacing

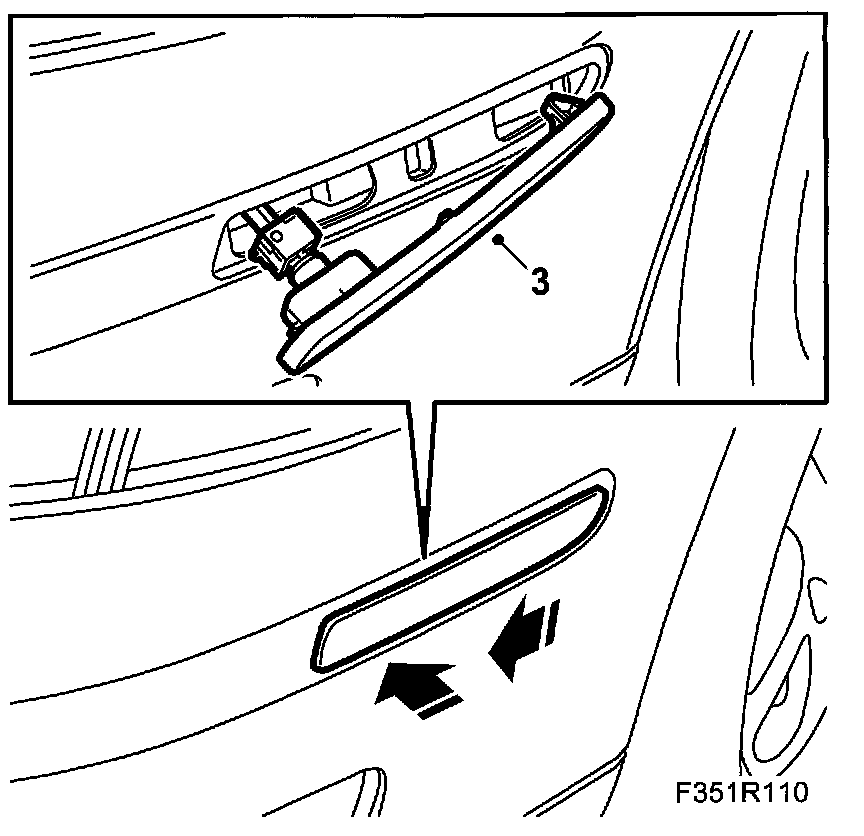

1. Loosen the lamp housing from the decor moulding using 82 93 474 Removal tool.







IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

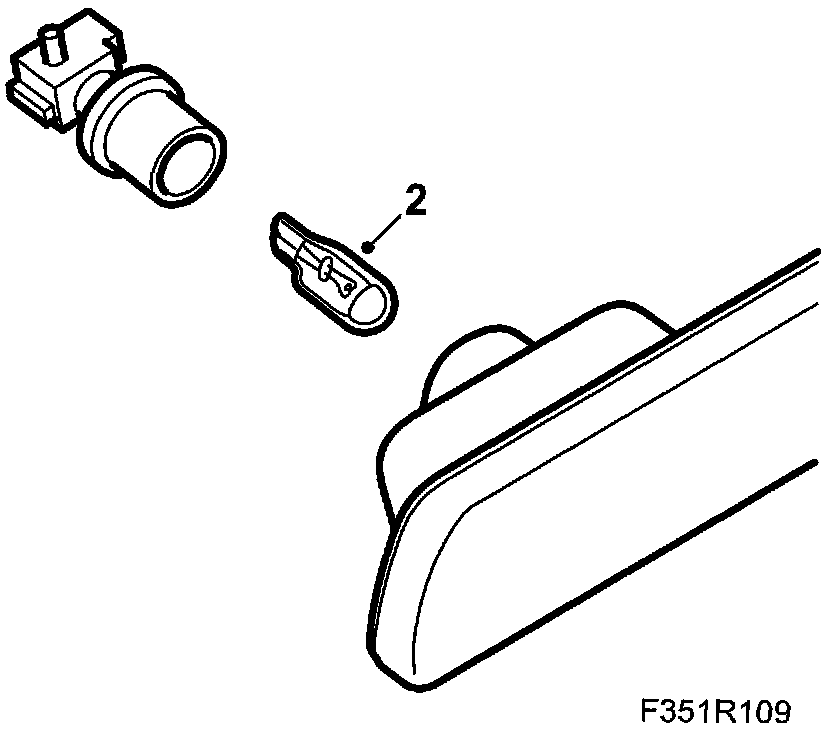

2. Remove and change the bulb.







3. Fit the lamp housing.
