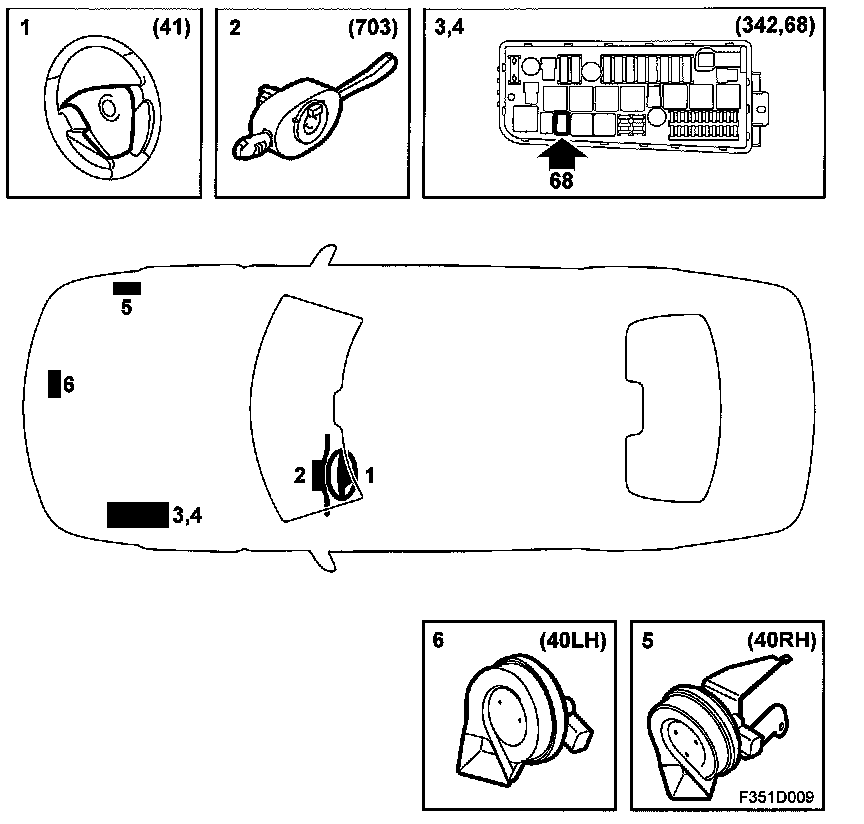

Main Components

Main Components







1. Horn switch (41)
2. Column Integration Module, CIM (703a)
3. Underhood Electrical Centre, UEC (342)
4. Relay, horn (68)
5. Horn, right (40RH)
6. Horn, left (40LH)
