Sedan

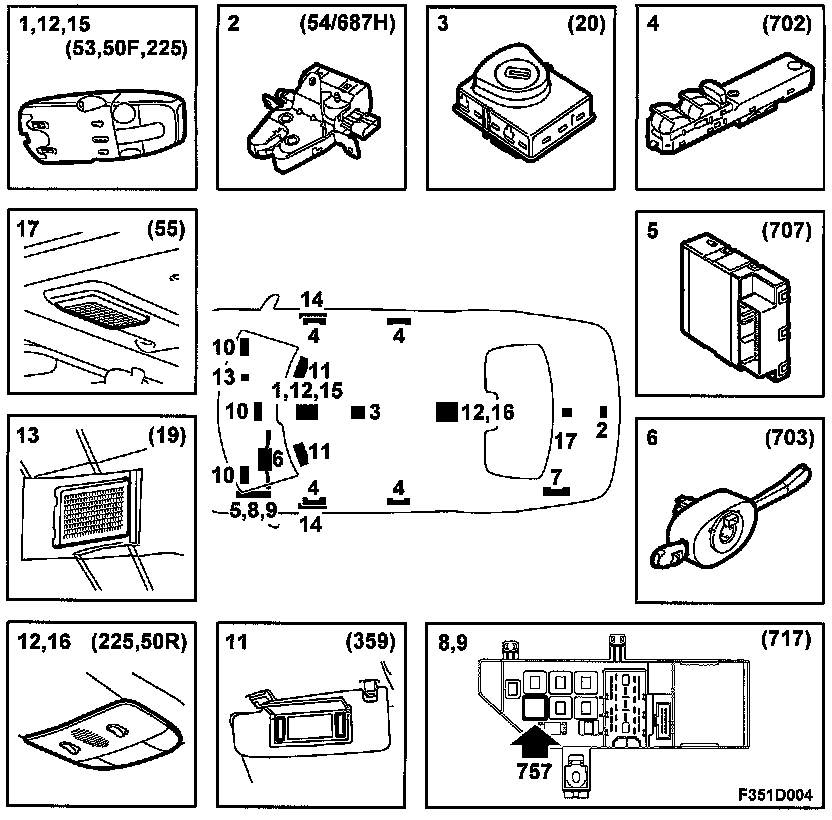

Main Components

4D







1. Interior lighting switch (53)
2. Door switch, luggage compartment (54/687H)
3. Ignition Switch Module (ISM) (20)
4. Door control module DDM/PDM/RLDM/RRDM (702 D/P/RL/RR)
5. Body Control Module (BCM) (707)
6. Column Integration Module (CIM) (703a)
7. Rear Electrical Centre (REC) (701)
8. Relay, interior lighting (717)
9. Relay, +15, IPEC (757C)
10. Lamp, front floor lighting (613F)
11. Lamp, vanity mirror lighting (359)
12. Reading light (225)
13. Lamp, glove box lighting (19)
14. Lamp, courtesy lighting (209)
15. Lamp, front roof lighting (50F)
16. Lamp, rear roof lighting (50R
17. Lamp, luggage compartment lighting (55)
