Convertible

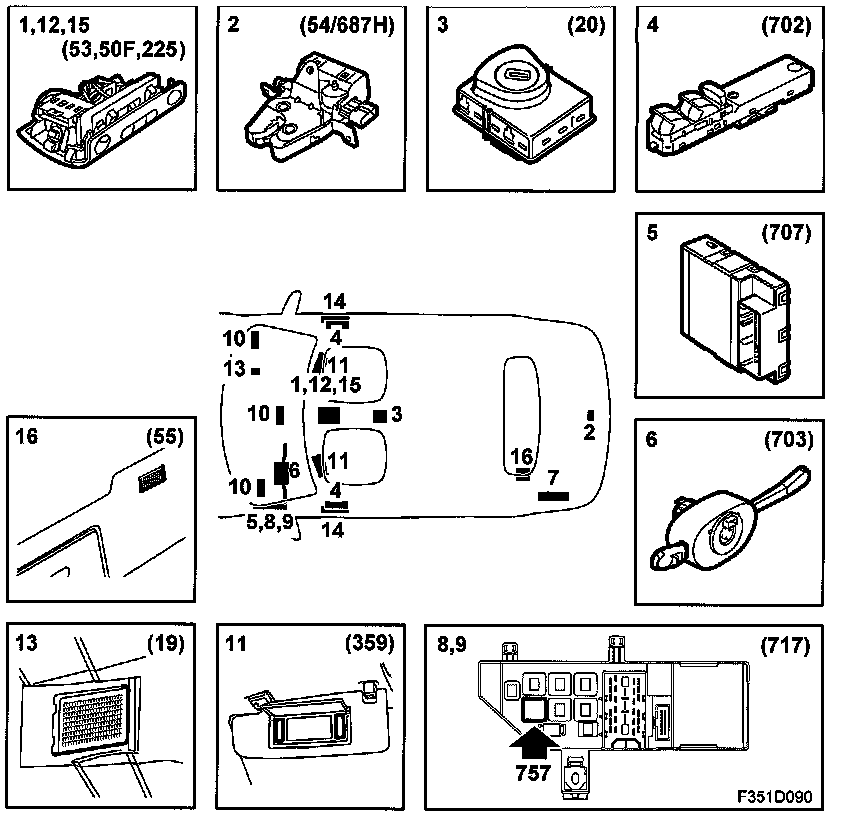

Main Components

CV







1. Interior lighting switch (53)
2. Door switch, luggage compartment (54/687H)
3. Ignition Switch Module (ISM) (20)
4. Door control module, DDM/PDM (702 D/P)
5. Body Control Module (BCM) (707)
6. Column Integration Module (CIM) (703a)
7. Rear Electrical Centre (REC) (701)
8. Relay, interior lighting (717)
9. Relay, +15, IPEC (757C)
10. Lamp, front floor lighting (613F)
11. Lamp, vanity mirror lighting (359)
12. Reading light (225)
13. Lamp, glove box lighting (19)
14. Lamp, courtesy lighting (209)
15. Lamp, front roof lighting (50F)
16. Lamp, luggage compartment lighting (55)
