Convertible

Lamp, Vanity Mirror Lighting (359LH/RH)

Main task
Used as lighting for the vanity mirror.

Type
Two lamps and a switch are built in to the sun visor. The switch is activated by the vanity mirror.

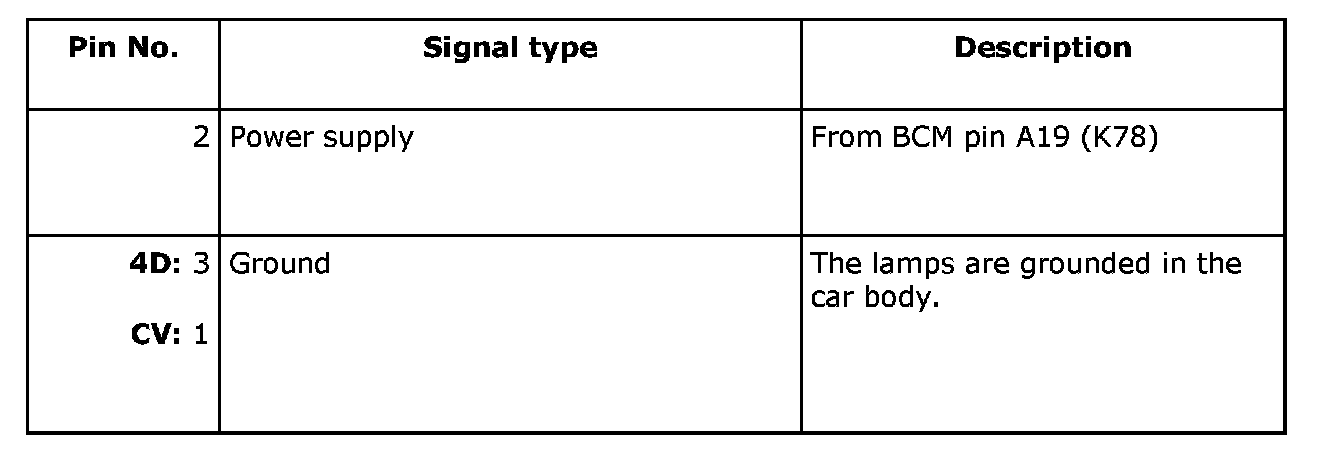

Connection

Pin No. 1 - 3:

CV

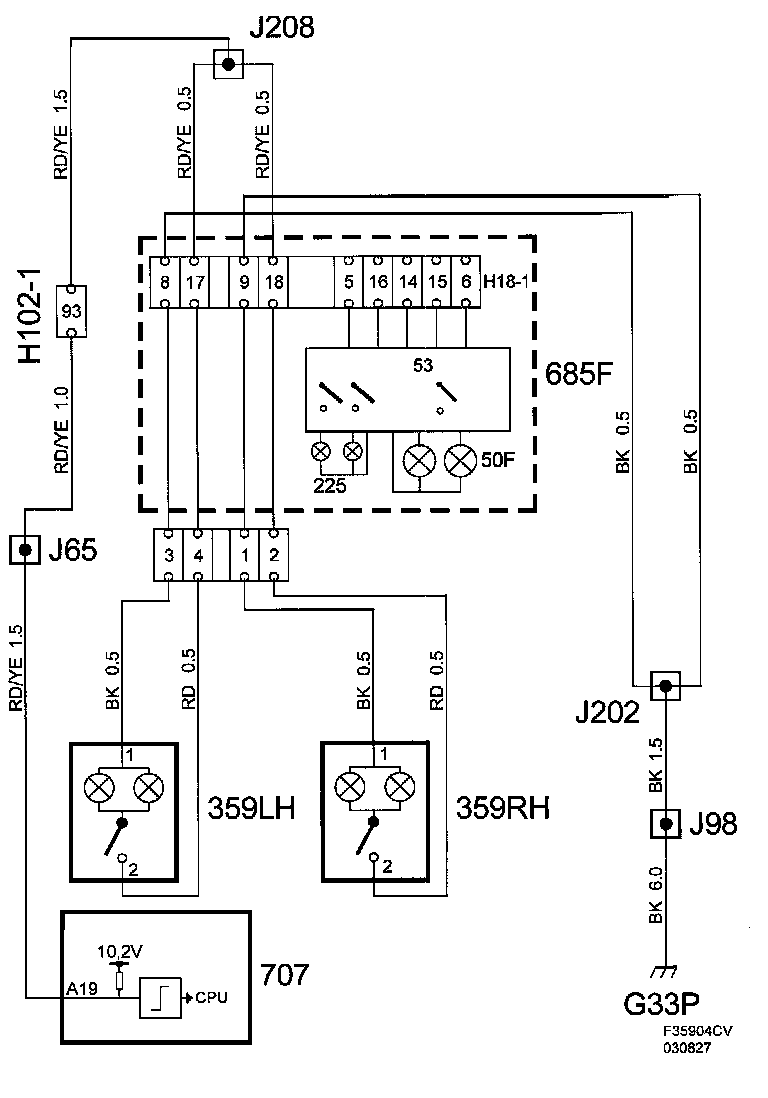

Diagram CV
