Convertible

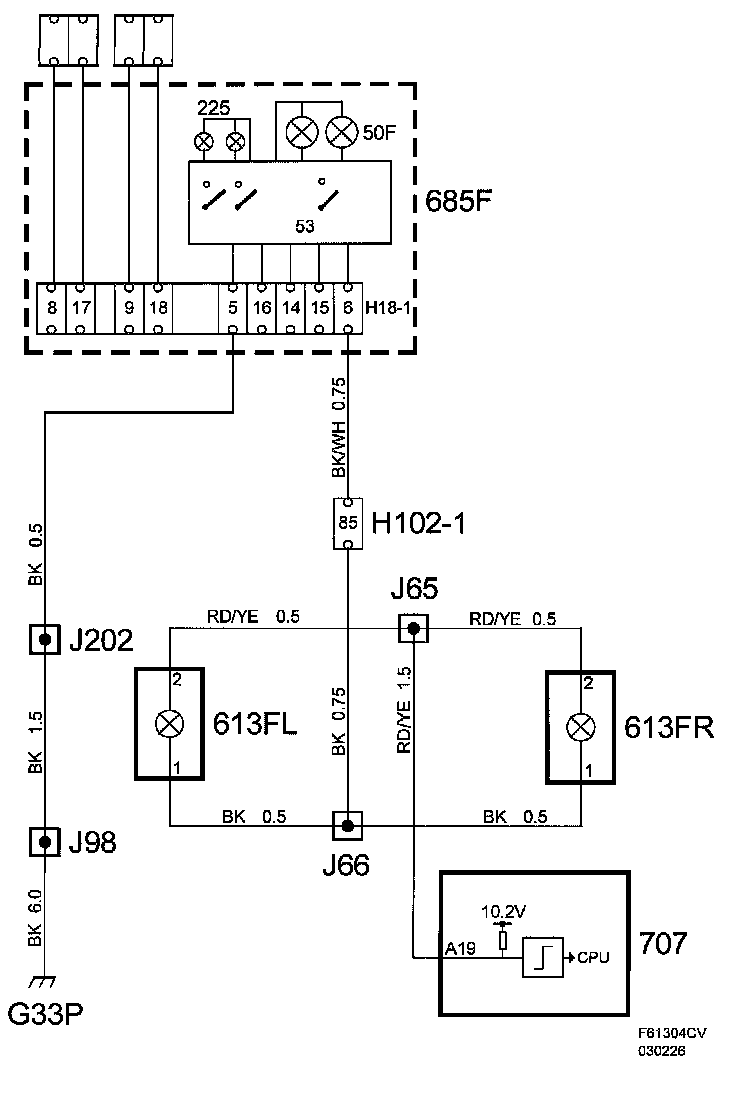

Lamp, Floor Lighting, Front (613 FL/FR)

Main task
Lighting of the front floor area.

Type
One bulb in a bulb holder.

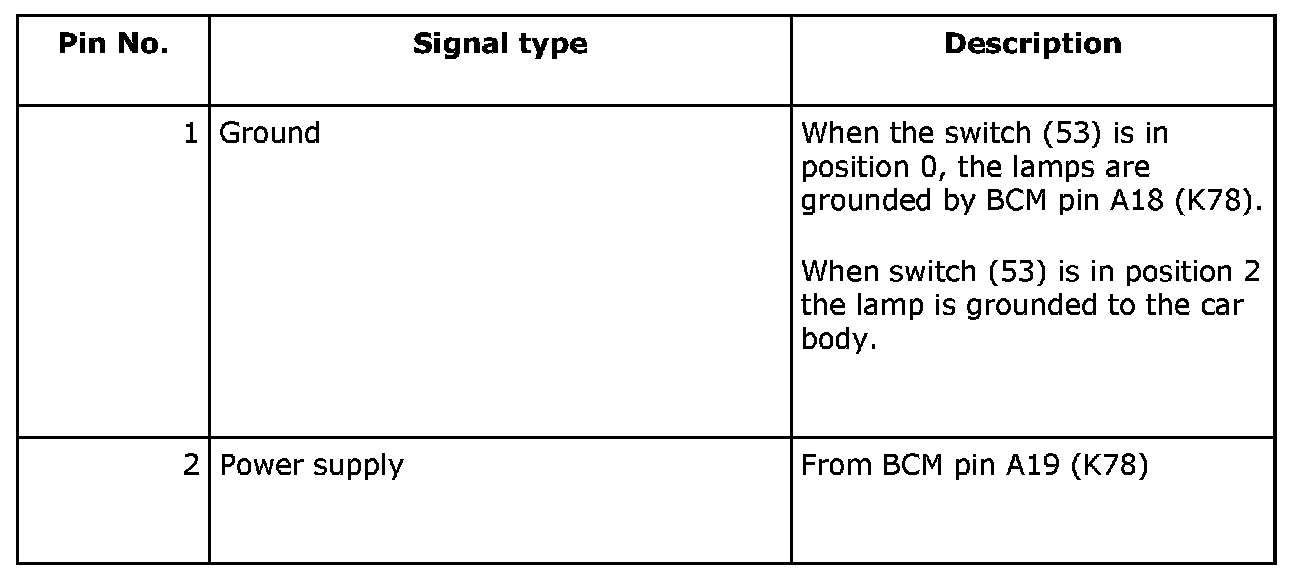

Connection


Pin No. 1 - 2:






CV
