Convertible



Bulb, Elevated Brake Lights (30RC)

CV







Main task

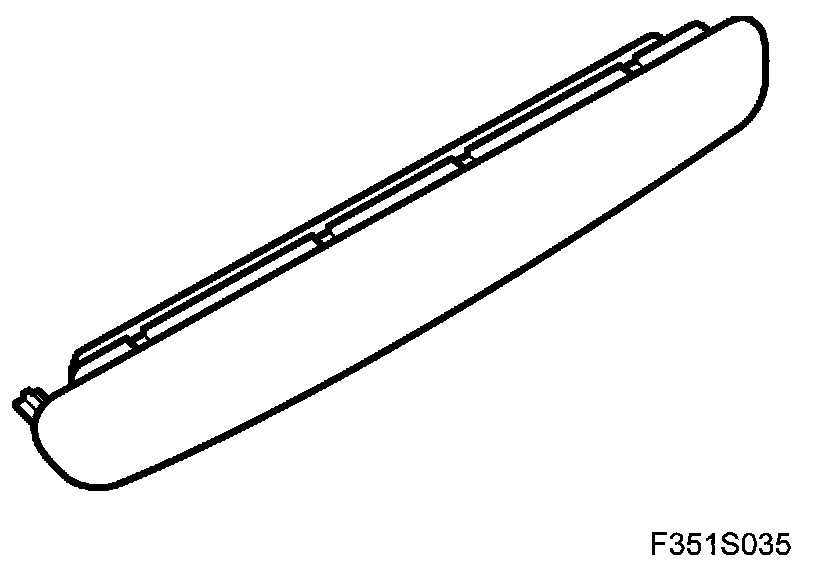

High-level brake light.

Type
High-level brake light with red LEDs.

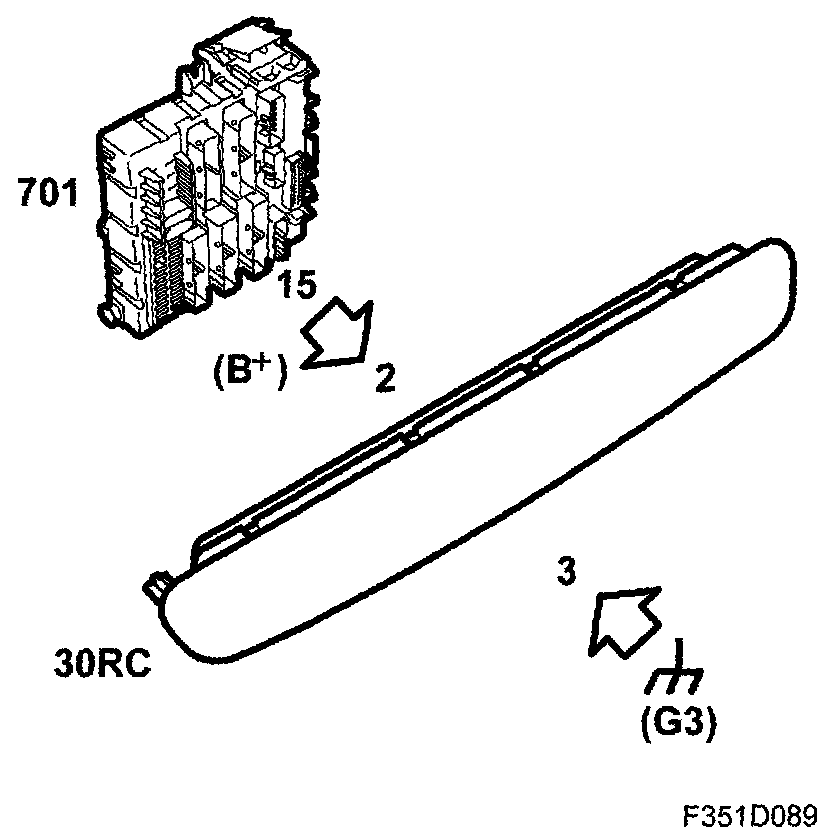

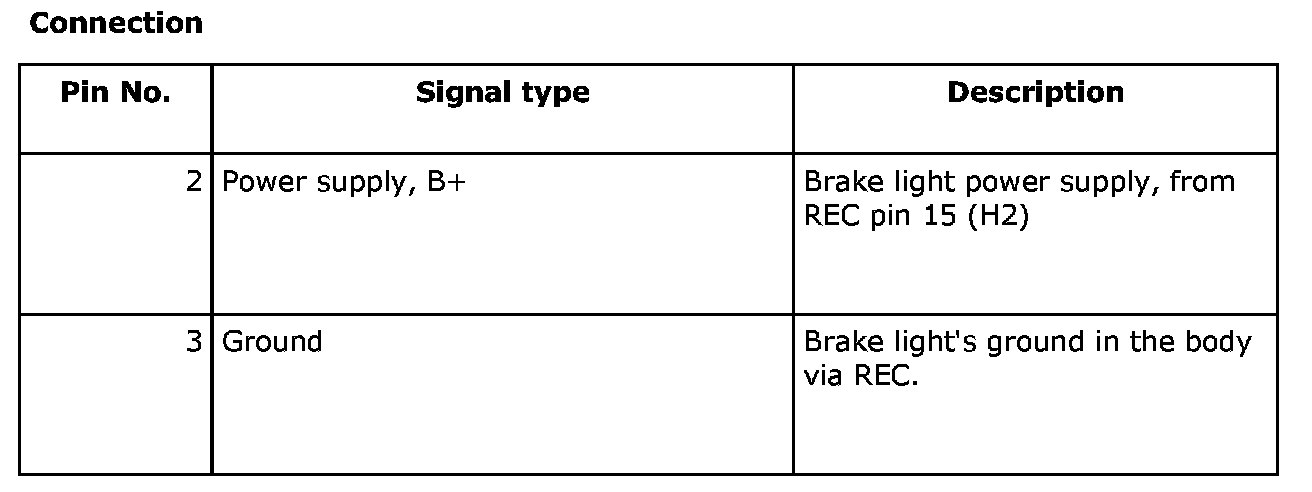

Connection


Pin No. 2-3:
